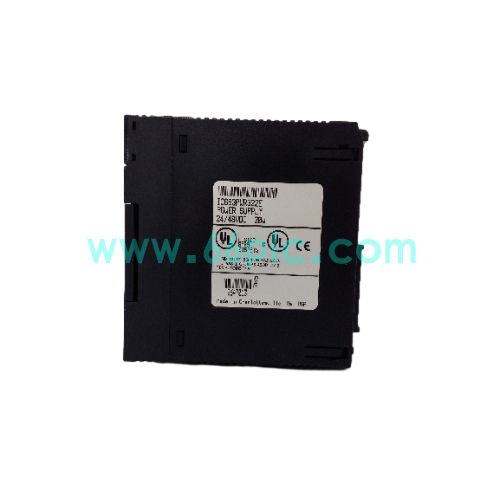

GE Fanuc IC693PWR322 Series 90‑30 DC Input Power Supply Module

The GE Fanuc IC693PWR322 is a dedicated DC‑input rack power supply designed for the Series 90‑30 PLC system. It accepts 24/48VDC field power and provides three groups of regulated DC outputs to feed the CPU, backplane bus and I/O modules.

This slot‑mounted power unit installs on the leftmost baseplate slot and is equipped with status LED indicators and comprehensive fault protection circuits. Original production has been discontinued. It is widely stocked as aftermarket spare parts for factory automation, water treatment and machinery control cabinet maintenance.

Main Specifications

1. Brand:GE Fanuc; Model:IC693PWR322; Type:PLC Rack DC Power Supply Module
2. Input:24/48 VDC, operating range 18‑56VDC, max input power 50W
3. Outputs:3 isolated channels, total rated output power 30W
4. Panel Indicators:PWR, OK, BATT low‑voltage and FAULT alarm LED lights
5. Protection:Short‑circuit, overvoltage, overcurrent and overtemperature protection
6. Mounting:Leftmost slot of Series 90‑30 baseplate, backplane bus power distribution
7. Supply Status:Original production discontinued, available as tested surplus or refurbished spare parts

Core Functions

1. Convert 24/48VDC raw field power into stable +5VDC logic power for PLC CPU and backplane.
2. Supply isolated 24VDC power for digital input modules, sensors and field transmitters.
3. Provide separate 24VDC relay drive power for relay output modules and solenoid loads.
4. Continuously monitor internal operating status and trigger fault LED alerts in abnormal conditions.
5. Maintain short power ride‑through during brief voltage dips to avoid unexpected PLC shutdown.
6. Serve as the central power source for the complete Series 90‑30 PLC automation rack.

Application Scenarios

1. Machine control, water & wastewater treatment, packaging and material handling automation systems.
2. Spare power supply replacement and routine maintenance of existing Series 90‑30 PLC racks.
3. Technical renovation and reliability upgrade of aging GE Fanuc legacy control cabinets.
4. On‑site troubleshooting and replacement of faulty rack power modules on continuous production lines.
5. Spare‑parts stocking for system integrators and GE Fanuc PLC automation maintenance contractors.
6. Global aftermarket spare supply for technicians maintaining obsolete GE Series 90‑30 hardware.

FAQ

1. Q:What is the difference between IC693PWR322 and IC693PWR321?
   A:PWR322 is DC‑input only, while PWR321 accepts AC input; both fit the 90‑30 rack and deliver 30W total output.
2. Q:Must it be fitted in the far‑left rack slot?
   A:Yes, this power module can only be installed in the leftmost slot of the 90‑30 baseplate.

3. Q:Is this power supply still in original production?
   A:GE Fanuc has stopped manufacturing this model, only tested surplus and refurbished spare units are available.
