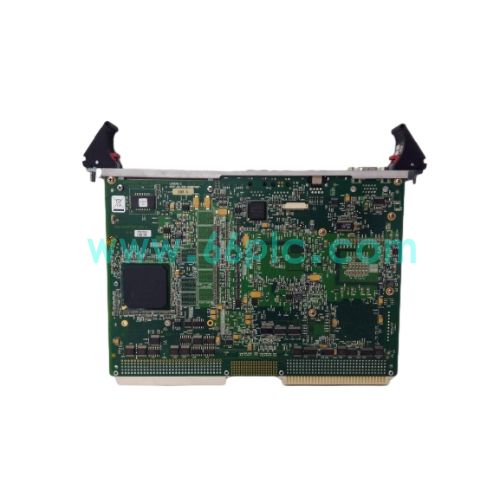

GE VME‑7807RC‑414001 Passive‑Cooled VME64x Single Board Computer

The GE VME‑7807RC‑414001 (VMIVME‑7807RC) is a rugged, passively cooled single‑slot VME64x single‑board computer built around Intel Pentium M processor and 855GME chipset. It adopts fanless thermal design and integrates abundant network, video and serial interfaces for real‑time embedded control and high‑speed data acquisition.

This VME SBC is equipped with a PMC expansion slot, battery‑backed NVRAM and hardware watchdog timer. Original production has been discontinued. It is widely stocked as aftermarket spare parts for legacy power, aerospace, test‑measurement and industrial automation rack system maintenance and retrofitting.

Main Specifications

• Brand: GE / Abaco Systems; Model:VME‑7807RC‑414001; Type:VME64x Single Board Computer
• CPU:Intel Pentium M, 855GME chipset, maximum 1.5GB DDR SDRAM
• On‑board Interfaces:Dual Gigabit Ethernet, VGA/DVI video, 4×USB2.0, multi‑channel RS232 serial ports
• Bus & Expansion:VME64x, PMC PCI‑X slot, CompactFlash / SATA / IDE storage support
• Reliability Features:Fanless passive cooling, watchdog timer, 32KB battery‑backed NVRAM, RTC
• Operating Temperature:‑40℃ ~ +70℃ rugged version, standard 0℃ ~ +55℃
• Supply Status:Original production discontinued, available as tested surplus or refurbished spare parts

Core Functions

• Run real‑time operating systems such as VxWorks, QNX and Linux for embedded industrial computing tasks.
• Collect and process field measurement data, communicate with other VME I/O modules over VME64x backplane.
• Dual gigabit network realizes high‑speed data transmission between control rack and upper monitoring system.
• Hardware watchdog and non‑volatile memory ensure safe fault recovery and configuration data preservation.
• PMC expansion slot allows users to add customized communication or high‑speed acquisition daughter boards.
• Work as the main computing node in legacy VME chassis for long‑term unattended industrial operation.

Application Scenarios

• Legacy power plant control, automated test equipment, aerospace and rugged mobile embedded systems.
• Spare SBC replacement and routine maintenance of existing GE VMIVME series VME‑bus automation hardware.
• Technical renovation and performance upgrade of old‑generation VME rack‑mounted data acquisition platforms.
• On‑site troubleshooting and replacement of failed single‑board computers on running industrial control racks.
• Spare‑parts stocking for system integrators and automation maintenance contractors.
• Global aftermarket spare supply for technical teams maintaining GE VMIVME series VME‑bus automation hardware.

FAQ

• Q:What does RC stand for in VME‑7807RC?
  A:RC means ruggedized and passive cooling, fanless design for harsh working environments.
• Q:What operating systems can this board support?
  A:It is compatible with VxWorks, QNX, Linux, Windows XP Embedded and other classic embedded OS.

• Q:Is this VME single board computer still in original production?
  A:GE / Abaco has stopped manufacturing this model, only tested surplus and refurbished spare units are available.
