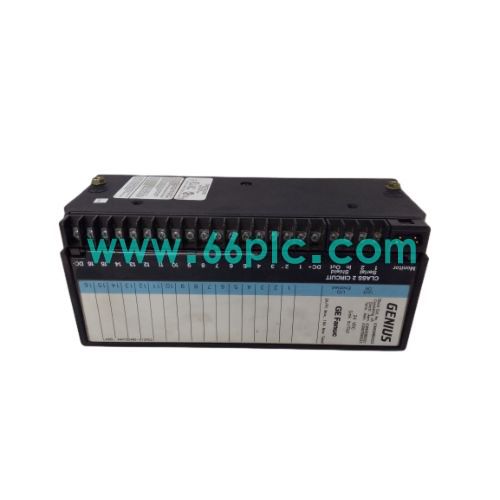

GE Fanuc IC660BBD023 Digital I/O Block

The GE Fanuc IC660BBD023 is a 16‑circuit sink‑type distributed digital I/O block of the Genius I/O series, designed for GE Series 90‑30 /90‑70 PLC systems. Each channel can be set as input, tristate input or output to connect 2‑wire and 3‑wire solid‑state sensors and actuators.

This field‑mounted intelligent I/O block communicates with the PLC main CPU via Genius bus. It has built‑in LED status indicators and comprehensive fault diagnosis functions. Original production has been discontinued, and it is widely supplied as aftermarket spare parts for maintenance and transformation of legacy distributed control systems.

Main Specifications

1. Brand: GE Fanuc; Model:IC660BBD023; Type:Genius Sink Digital I/O Block
2. Applicable Platform:Series 90‑30,90‑70 PLC,Genius bus distributed I/O system
3. Channel:16 configurable circuits, sink type, compatible with 2/3‑wire sensors
4. Rated Voltage:24VDC, operating range 18‑30VDC
5. Output Load Current:2A per channel, total maximum load 15A
6. Input Filter:Selectable filter time from 5ms to 100ms for anti‑interference
7. Operating Temperature:0℃ ~ +60℃, 5%‑95% RH non‑condensing
8. Installation:Field panel mounting, rugged industrial housing with status LED indicators

Core Functions

1. Collect on‑site digital switch signals from proximity switches and photoelectric sensors.
2. Output digital control signals to drive relays, solenoid valves and small actuators.
3. Realize high‑speed data exchange with PLC CPU through the Genius fieldbus network.
4. Carry out continuous self‑diagnosis for short circuit, open wire and over‑temperature faults.
5. Support power‑up default state setting or holding the last output state after power failure.
6. Reduce long‑distance cabinet wiring and realize decentralized field signal acquisition and control.

Application Scenarios

1. Distributed digital signal monitoring and control for production lines and mechanical equipment.
2. Spare I/O block replacement and routine maintenance of GE Genius bus control racks.
3. Automation upgrading and reliability reconstruction of old GE Series 90 PLC control systems.
4. On‑site troubleshooting and faulty distributed I/O module replacement projects.
5. Spare‑parts stocking for automation integrators and industrial maintenance contractors.
6. Global aftermarket spare supply for technicians maintaining legacy GE Genius I/O hardware.

FAQ

1. Q: What is the difference between IC660BBD023 and IC660BBD022?
   A: IC660BBD023 is sink I/O block, IC660BBD022 is source I/O block.
2. Q: Does this module need a Genius bus controller?
   A: Yes, it must cooperate with a Genius bus controller to communicate with the PLC CPU.

3. Q: Is the original model still in production?
   A: The original production has been discontinued, only tested surplus and refurbished spare units are available.
