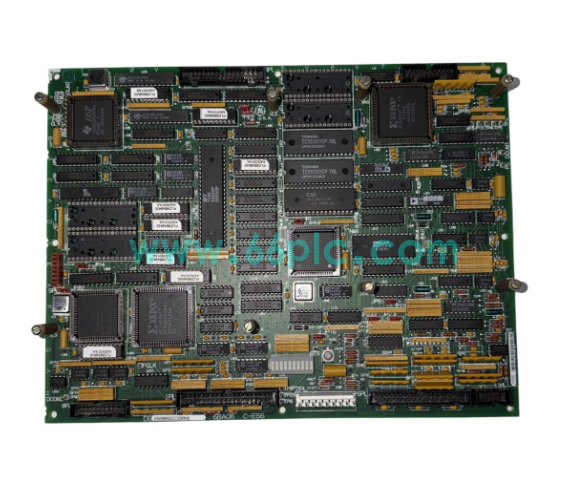

GE DS200SDCCG5AHD DC Control Circuit Board

The GE DS200SDCCG5AHD is a dedicated DC control circuit board designed for the GE Mark V Speedtronic turbine control system. It processes direct‑current control signals and implements power loop regulation for turbine excitation and auxiliary drive control.

This plug‑in PCB assembly integrates signal conditioning circuits, fault monitoring loops and multi‑channel backplane connectors. It provides overvoltage and overcurrent detection, and serves as an essential spare part for overhaul and retrofitting of power plant turbine control equipment.

Main Specifications

1. Brand: General Electric (GE); Model: DS200SDCCG5AHD; Type: DC Control Circuit Board
2. Applicable Device: GE Mark V Speedtronic Turbine Control System
3. Signal Interface: Backplane bus connector, analog DC signal input and output channels
4. Function: DC signal conditioning, excitation control, power loop monitoring and fault detection
5. Feature: Industrial grade PCB, built‑in fault feedback circuit, backplane bus data communication
6. Installation: Plug‑in internal installation inside GE Mark V control rack cabinet
7. Operating Environment:0℃ ~ +60℃, 5%‑95% RH non‑condensing
8. Certifications: CE compliant for thermal power turbine automation applications

Core Functions

1. Receive and condition DC analog signals from field sensors and excitation units of turbine systems.
2. Complete closed‑loop regulation of excitation power and transmit control instructions through rack backplane bus.
3. Monitor circuit operating status in real time and capture overvoltage, overcurrent and abnormal feedback faults.
4. Transmit fault alarm signals to the main controller for system protection and status recording.
5. Stably transmit measurement and control data between multiple modules in the Mark V control rack.
6. Support on‑site troubleshooting and status inspection for turbine control loops during commissioning.

Application Scenarios

1. DC excitation and auxiliary control hardware for GE Mark V steam and gas turbine control systems.
2. Control board spare replacement and system maintenance in thermal power plant automation sites.
3. Retrofit and hardware upgrade projects for aging Mark V series turbine control racks.
4. Turbine control system overhaul, signal loop debugging and faulty circuit board replacement tasks.
5. Spare‑parts inventory for power system integrators and thermal power engineering contractors.
6. Global aftermarket spare supply for technical teams maintaining GE Mark V legacy turbine control hardware.

FAQ

1. Q: Which turbine control system is this board compatible with?
   A: It is designed exclusively for GE Mark V Speedtronic turbine control rack systems.
2. Q: Can this board be repaired if it fails on site?
   A: We provide tested replacement boards. On‑site component‑level repair is not recommended for power plant safety.

3. Q: Is this new original GE factory stock?
   A: It is an industrial aftermarket spare part, fully tested and ready for direct installation and commissioning.
