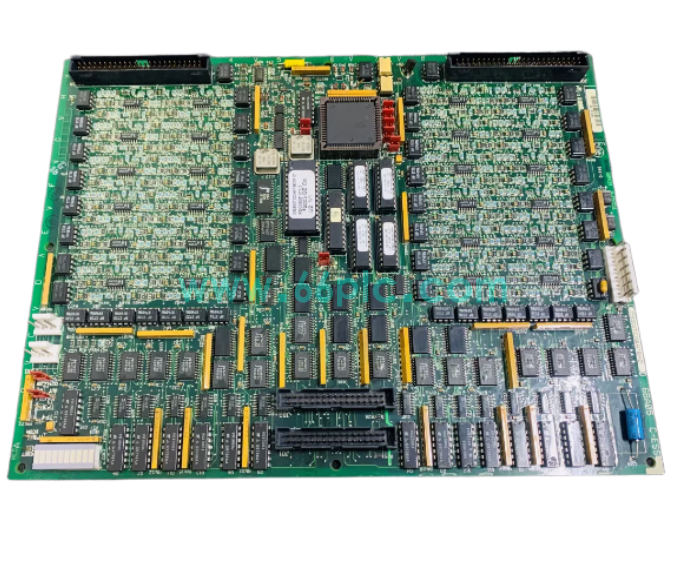

GE DS200TCDAH1B Digital I/O Control Board

The GE DS200TCDAH1B is a plug‑in digital input and output control board developed for GE Mark V turbine control systems. It collects field digital status signals and outputs switching commands to drive on‑site relays and actuators.

This circuit board communicates with the main controller via the rack backplane and continuously monitors channel operating status. It is widely stocked as spare parts for steam and gas turbine control cabinet overhaul, aging board replacement and on‑site system renovation projects.

Main Specifications

• Brand: GE; Model:DS200TCDAH1B; Type:Digital I/O Control Circuit Board
• Installation:Plug‑in design, installed inside GE Mark V control rack
• Function:Digital signal acquisition, switching command output, channel status monitoring
• Communication:Data interaction with main CPU through rack backplane bus
• Feature:Onboard status LED indicators, built‑in hardware self‑diagnosis function
• Cooling:Natural convection cooling, suitable for control cabinet long‑term operation
• Operating Environment:0℃ ~ +60℃, 5%‑95% RH non‑condensing, industrial anti‑interference design
• Certifications:Compliant with GE Mark V turbine control system technical standards

Core Functions

• Receive digital switching signals from field limit switches, relays and feedback sensors.
• Output control switching signals according to main controller instructions to actuate field equipment.
• Real‑time self‑diagnosis of channel failures and signal anomalies with LED status prompts.
• Transmit collected digital status data to the main controller through backplane communication bus.
• Cooperate with other boards to complete turbine sequence control and interlock protection logic.
• Direct replacement of faulty original boards to restore stable operation of Mark V control racks.

Application Scenarios

• Digital I/O control unit for GE Mark V gas turbine and steam turbine control systems.
• Critical spare circuit board for power generation unit turbine control cabinet maintenance.
• Retrofit and spare replacement for aging Mark V racks and defective I/O board upgrade projects.
• Interlock protection and sequential control of large thermal power and combined cycle units.
• Field switching signal acquisition and output equipment of heavy‑duty industrial turbine control system.

• Global aftermarket spare supply for maintenance teams servicing GE Mark V series control hardware.
