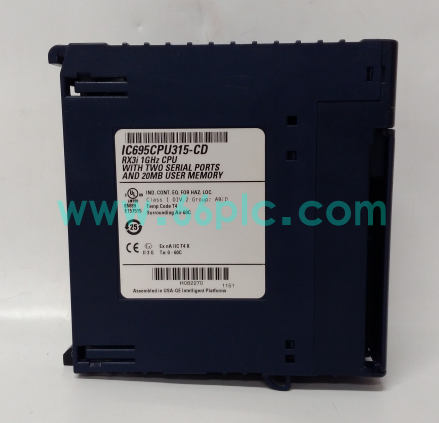

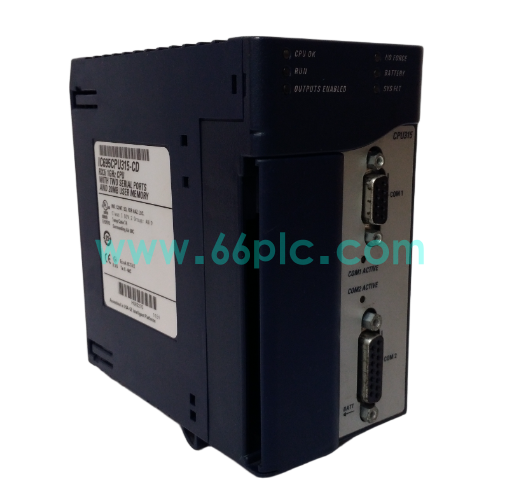

GE Fanuc IC695CPU315 RX3i PACSystem CPU Module

The GE Fanuc IC695CPU315 is the central processing unit for PACSystem RX3i series PLC. It executes multiple programming languages including ladder logic and structured text, handles PID regulation, discrete logic and data processing, and exchanges real‑time data with local and remote I/O modules for medium‑size industrial automation systems.

This rack‑mount CPU integrates an Ethernet communication port, abundant user memory and multi‑status LED indicators. It supports online programming and network connection with HMI and SCADA systems. It is widely used as aftermarket spare for factory‑line and process‑plant PLC cabinet maintenance, overhaul and system retrofitting.

Main Specifications

• Brand: GE Fanuc; Model:IC695CPU315; Type: RX3i PACSystem CPU Module
• Applicable System: GE PACSystem RX3i PLC platform
• Interface: On‑board Ethernet port, RX3i backplane bus, run/fault diagnostic LED indicators
• Function: User program execution, PID closed‑loop control, I/O data processing, network communication, system self‑diagnosis
• Feature: Rack slot‑mount installation, industrial anti‑interference, native Ethernet support, multi‑programming‑language compatible
• Installation: Slot‑mount inside RX3i PLC rack chassis
• Power: Back‑plane powered; Operating Environment:0℃ ~ +60℃, 5%‑95% RH non‑condensing
• Certifications: CE compliant for industrial automation applications

Core Functions

• Execute user control programs to realize equipment sequence logic, interlock protection and PID closed‑loop adjustment.
• Interact with RX3i I/O modules through backplane bus to collect field signals and output control instructions to field devices.
• Built‑in Ethernet port completes program download, and data interaction with programming software, HMI and upper monitoring system.
• Realize continuous self‑diagnosis of hardware, capture system faults and send alarm information for system protection.
• Front‑panel LED indicators display operating and fault status, convenient for commissioning and on‑site fault location.
• Standard slot‑in modular structure, easy to disassemble and ｒｅｐｌａｃｅ during PLC cabinet overhaul and troubleshooting work.

Application Scenarios

• Core central processing component for GE PACSystem RX3i industrial control systems.
• Critical spare‑part for production‑line machinery, water‑treatment and medium‑scale process‑industry PLC cabinets.
• Retrofit and spare replacement for legacy IC695CPU315 CPU‑module PLC‑hardware upgrade projects.
• PLC rack overhaul, control‑logic debugging and faulty CPU‑module replacement tasks.
• Spare‑parts inventory for automation integrators and manufacturing‑plant engineering contractors.

• Global aftermarket spare supply for technical teams maintaining GE RX3i PACSystem automation hardware.
