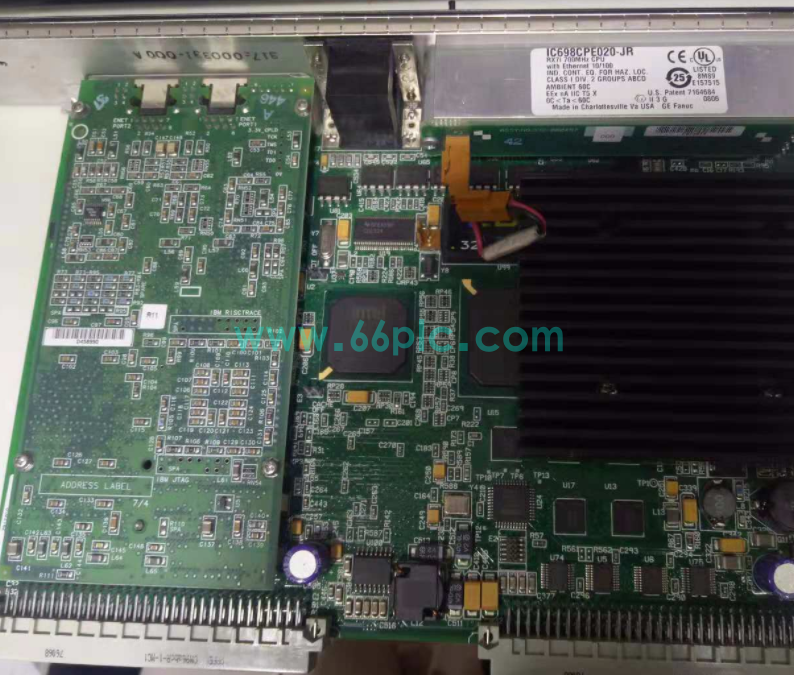

GE Fanuc IC698CPE020-JR PACSystems RX7i CPU Module

The GE Fanuc IC698CPE020-JR is a high-performance VME64 bus CPU processor designed for the PACSystems RX7i automation control platform. Powered by a 700MHz Pentium III processor, it acts as the central control unit to execute user control logic, manage rack I/O data exchange and coordinate multi-device network communication.

This controller is equipped with 10MB battery-backed RAM and 10MB non-volatile flash memory, along with dual 10/100Mbps Ethernet ports and serial communication interfaces. It supports multiple IEC programming languages and abundant industrial protocols, widely adopted for large-scale process control system renovation, capacity expansion and spare part replacement.

Main Specifications

• Brand: GE Fanuc (Emerson Automation)
• Model: IC698CPE020-JR
• Product Type: PACSystems RX7i VME CPU Processor Module
• Processor: 700MHz Intel Pentium III embedded processor
• Memory: 10MB RAM + 10MB non-volatile Flash memory
• Communication: Dual 10/100Mbps Ethernet, RS232 serial ports
• Max I/O Resources: 32K discrete bits, 32K analog words
• Supported Languages: LD, FBD, Structured Text, C language
• Operating Temperature Range: 0°C ~ +60°C
• Installation: Standard VME64 rack plug-in form factor

Core Functions

• Cyclically execute automation control programs and complete real-time logic calculation for process systems
• Collect field I/O signals and output instructions to drive regulating valves, pumps and actuators
• Support SRTP, EGD, Modbus TCP and SNP protocols for interconnection with HMI and remote controllers
• Dual Ethernet ports realize flexible network topology, supporting redundant network configuration options
• Built-in hardware self-diagnosis to detect module faults, communication failures and I/O abnormalities
• Battery-supported real-time clock records timestamps for production events and fault alarms
• Fully compatible with RX7i series I/O, communication and special function modules
• Allow online program monitoring, editing and remote debugging through Ethernet network
• Industrial-grade anti-interference design ensures stable long-term unattended operation
• VME plug-in structure supports convenient disassembly during equipment maintenance and replacement

Application Scenarios

• Thermal power plant unit main control and auxiliary equipment automation systems
• Large petrochemical continuous production process monitoring & control racks
• Oil & gas pipeline and central processing station automatic control cabinets
• Municipal large-scale water supply and sewage treatment DCS control systems
• Pulp and paper factory continuous production line process control units
• Chemical plant reactor closed-loop control and safety interlock systems
• Metallurgical industry continuous rolling and furnace automatic control equipment
• Large-scale energy storage and environmental protection engineering monitoring systems
• Upgrade and reconstruction of legacy GE PACSystems RX7i automation platforms
• Industrial PAC spare parts emergency maintenance and replacement projects
