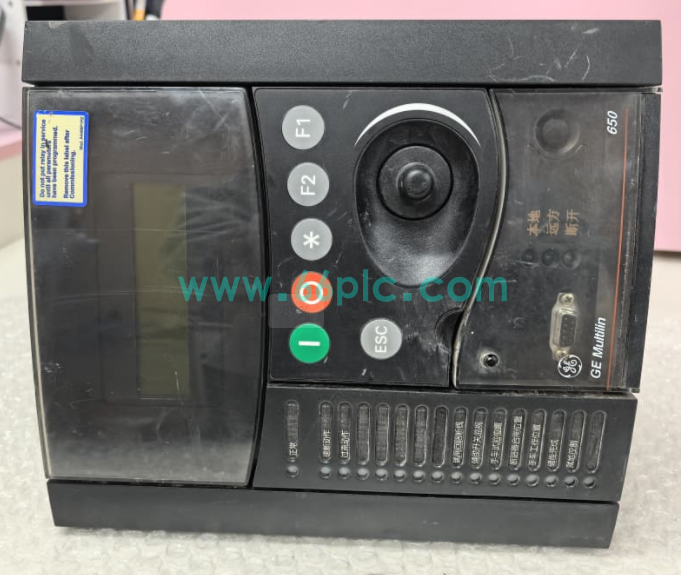

GE F650BFBF1G0H1C6 Feeder Protection Relay

The GE F650BFBF1G0H1C6 is a digital feeder protection relay from the F650 series. It integrates protection, measurement, control and communication functions, designed for overhead lines, cables and distribution feeders in power distribution systems.

This multifunctional relay adopts high-precision sampling technology and robust EMC design to adapt to complex substation environments. It supports rich communication protocols and flexible logic configuration, widely used for power distribution network reconstruction, substation automation and spare parts replacement projects.

Main Specifications

• Brand: GE
• Model: F650BFBF1G0H1C6 (F650 Series)
• Product Type: Digital Feeder Protection & Control Relay
• Protection Functions: Overcurrent, Earth Fault, Overvoltage, Undervoltage
• Communication Support: Modbus RTU, Modbus TCP, DNP3
• Working Temperature Range: -40°C ~ +70°C
• Installation: Standard Panel Flush Mounting
• Local Interface: Front LCD Display and Operation Keypad
• Built-in Fault Recording & Sequence of Events Logging
• Comply with international IEC and ANSI power industry standards

Core Functions

• Comprehensive protection for medium and low voltage distribution feeders
• High-precision real-time measurement of electrical operation parameters
• Fast tripping action when short-circuit and ground faults occur
• Store fault waveform data and event records for post-fault analysis
• Support user-defined automatic reclosing control logic
• Remote parameter setting and data uploading via communication interface
• Continuous hardware self-diagnosis to detect internal module abnormalities
• Local on-site parameter viewing, debugging and manual switching operation
• Excellent anti-interference performance for harsh substation electromagnetic environment
• Stable long-term operation for unattended distribution automation stations

Application Scenarios

• Medium and low voltage feeder protection of urban power distribution networks
• Distribution substation automation system of industrial enterprises
• Power supply monitoring and protection for large commercial complexes
• Medium voltage feeder protection unit for photovoltaic and wind power stations
• On-site power distribution control system for mining and petrochemical industry
• Auxiliary power protection equipment for railway and transportation hubs
• Power distribution cabinet system for water plants and environmental projects
• Primary and secondary protection equipment of intelligent distribution substations
• Upgrading and renovation of old power distribution protection devices
• Spare parts replacement project for GE F650 series protection systems
