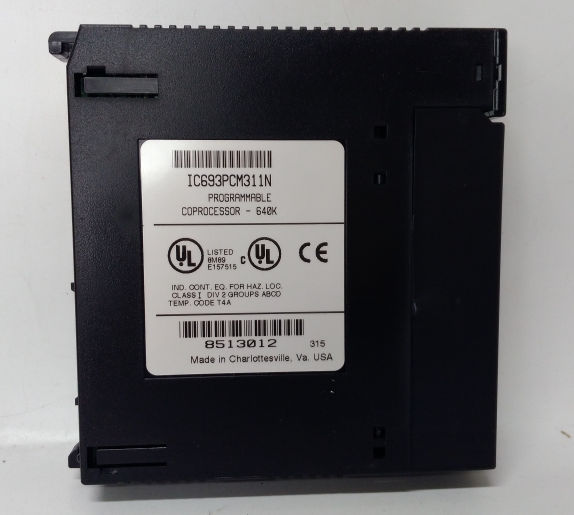

GE Fanuc IC693PCM311 Series 90-30 Programmable Coprocessor Module

The GE Fanuc IC693PCM311 is a programmable coprocessor module built for the Series 90-30 PLC platform. Equipped with independent processing resources, it undertakes complex arithmetic, communication and special algorithm tasks, effectively reducing the computation load of the main PLC CPU.

This module provides RS232 and RS485 serial interfaces to support custom programming and flexible external device communication. It mounts directly on the Series 90-30 backplane and works synchronously with the main controller to satisfy advanced customized control requirements in industrial automation.

Main Specifications

• Brand: GE Fanuc
• Model: IC693PCM311
• Applicable System: Series 90-30 PLC
• Communication Ports: RS232 and RS485
• Backplane Power: 5VDC from rack backplane
• Max Supported Baud Rate: 19.2 kbps
• Operating Temperature: 0°C ~ +60°C
• Installation: Plug-in module for Series 90-30 baseplate
• Onboard LED indicators for status diagnosis
• Approximate Weight: 0.38 kg

Core Functions

• Independent programmable processor to offload main CPU heavy computing tasks
• Support custom program development for dedicated industrial control algorithms
• Serial communication with HMI, host computers and third-party equipment
• Real-time bidirectional data exchange with Series 90-30 main controller
• Flexible configuration of RS232 / RS485 communication parameters
• Built-in status LEDs for power, operation and error troubleshooting
• Industrial EMC design to resist field electromagnetic interference
• Seamless hardware compatibility with Series 90-30 rack system
• Support complex data processing and protocol conversion applications
• Convenient program downloading and debugging via dedicated software

Application Scenarios

• Process automation requiring complex mathematical calculation algorithms
• Special equipment protocol conversion and data gateway projects
• Water treatment plant advanced monitoring and control systems
• Power plant auxiliary equipment customized automatic control
• Petrochemical production line high-precision process control
• Metallurgical equipment real-time data acquisition and analysis
• Automated machinery with customized motion auxiliary control logic
• Retrofitting of legacy industrial automation control cabinets
• Distributed workshop multi-device data collection systems
• Pulp and paper industry advanced process regulation systems
