GE Fanuc IC693CHS391 Series 90-30 10-Slot CPU Baseplate

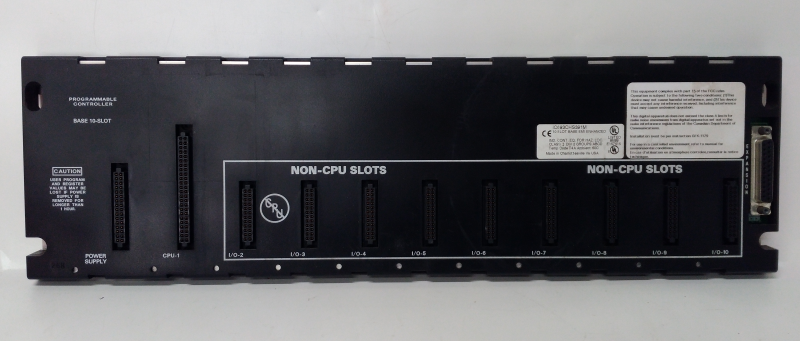

The GE Fanuc IC693CHS391 is a 10-slot main CPU baseplate designed exclusively for the Series 90-30 PLC control system. It serves as the core rack backplane, providing physical installation positions and internal bus communication channels for power supply unit, CPU module, various I/O modules and communication option modules.

Equipped with a standard 25-pin expansion connector on the right side, this baseplate supports cascading connection with additional expansion racks. Adopting industrial-strength hardware structure, it delivers stable backplane signal transmission and supports flexible configuration for medium-sized automated control systems.

Main Specifications

• Brand: GE Fanuc
• Model: IC693CHS391
• Applicable System: Series 90-30 PLC
• Slot Layout: 1 dedicated CPU slot, 9 I/O/option slots, independent power supply slot
• Expansion Interface: 25-pin D-Sub female connector
• Backplane Working Voltage: 5VDC
• Typical Backplane Current Consumption: 420mA
• Installation Method: Panel mounting
• Operating Temperature: 0°C ~ +60°C
• Approximate Weight: 1.15 kg

Core Functions

• Provide standard installation slots for Series 90-30 CPU, power supply and I/O modules
• Build internal backplane bus for high-speed data exchange between rack modules
• Support cascading multiple expansion baseplates through the 25-pin expansion port
• Realize unified power distribution and signal routing for all plug-in modules
• Allow flexible combination of digital, analog and communication modules on one rack
• Standardized rack address identification for PLC system hardware configuration
• Industrial anti-interference design to ensure stable signal transmission
• Compatible with full range of Series 90-30 I/O and communication modules
• Support filler modules for unused slots to maintain system integrity
• Serve as the main rack baseplate, only one CPU baseplate allowed per control system

Application Scenarios

• Petrochemical plant continuous process control systems
• Power station auxiliary machinery monitoring and control
• Water treatment and wastewater automation control projects
• Oil & gas field on-site automation control cabinets
• Metallurgical factory temperature and pressure control systems
• Pulp and paper production line automation equipment
• Automated assembly and testing production lines
• Mining equipment interlock control system
• HVAC central building control and pump station control
• Legacy automation equipment renovation and spare part replacement
