Product Description

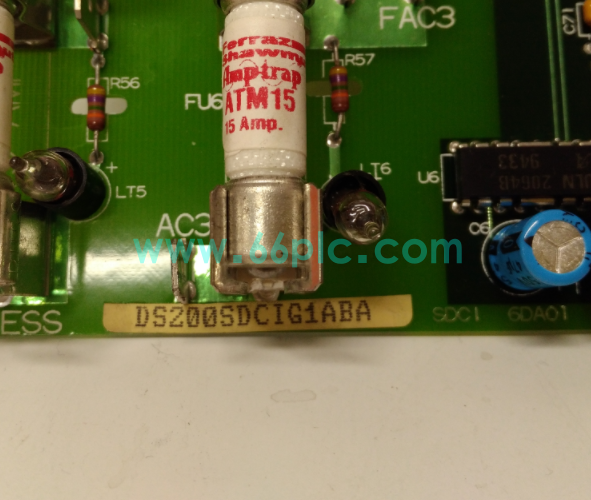

The DS200SDCIG1ABA is a DC signal input printed circuit board designed for GE Speedtronic Mark V turbine control systems. It serves as a dedicated signal acquisition module, collecting multi-channel DC discrete input signals from field turbine auxiliary equipment. The board processes and transmits status signals to the main controller to support turbine interlock judgment, condition monitoring and safety protection logic execution.

Adopting industrial-grade circuit design with built-in signal filtering and surge protection circuits, the board can adapt to complex electromagnetic environments in power plants. It maintains stable signal acquisition accuracy during long-term continuous operation. As a standard spare component, it is widely used for maintenance and aging hardware replacement of gas and steam turbine control racks.

Main Specifications

1. Model No.: DS200SDCIG1ABA; Product Type: Turbine DC Discrete Signal Input Circuit Board
2. Applicable System: GE Speedtronic Mark V Gas Turbine and Steam Turbine Control System
3. Core Function: Multi-channel DC discrete signal acquisition, filtering and signal transmission
4. Signal Type: Digital DC status signals from on-site sensors and switching devices
5. Installation Method: Standard plug-in module for Mark V turbine control cabinet racks
6. Circuit Protection: On-board surge suppression and noise filtering hardware components
7. Operating Environment: Designed for long-term stable operation in power plant control rooms
8. Anti-Interference Capacity: Effectively restrain electromagnetic interference signal distortion
9. Diagnostic Support: Convenient signal detection for routine equipment fault troubleshooting
10. Compatibility: Direct replacement part for SDCIG series Mark V signal input boards

Core Functions

1. Collects multi-channel DC discrete status signals from turbine field auxiliary equipment.
2. Filters interference noise to guarantee authenticity and accuracy of collected signals.
3. Transmits processed digital status signals to the turbine main control processor.
4. Provides signal source for unit safety interlock, alarm and protection control logic.
5. Monitors the operating state of valves, switches and other turbine peripheral equipment.
6. Works in coordination with other control boards to realize complete turbine monitoring system.
7. Supports 24-hour uninterrupted signal acquisition for power generation unit control systems.
8. Isolates external circuit interference to avoid abnormal triggering of control logic.
9. Supports on-site signal testing, regular inspection and fault diagnosis operations.
10. Serves as reliable replacement hardware for aging signal input modules of Mark V racks.

Application Scenarios

1. GE Speedtronic Mark V turbine control system maintenance and spare replacement projects
2. Thermal power plant gas turbine and steam turbine automatic monitoring and control systems
3. Combined cycle power generation unit discrete signal acquisition and interlock control platforms
4. Renovation and hardware upgrading projects of legacy power plant turbine control cabinets
5. Self-provided power station turbine auxiliary equipment status monitoring systems
6. Petrochemical energy industry power generation turbine supporting control facilities
7. Indoor control cabinet environments with complex electromagnetic interference conditions
8. Automated control systems requiring stable collection of discrete DC switching signals
9. Turbine control rack overhaul, circuit debugging and component renewal projects
10. Energy enterprises spare parts reserve for legacy turbine signal acquisition boards
