Product Description

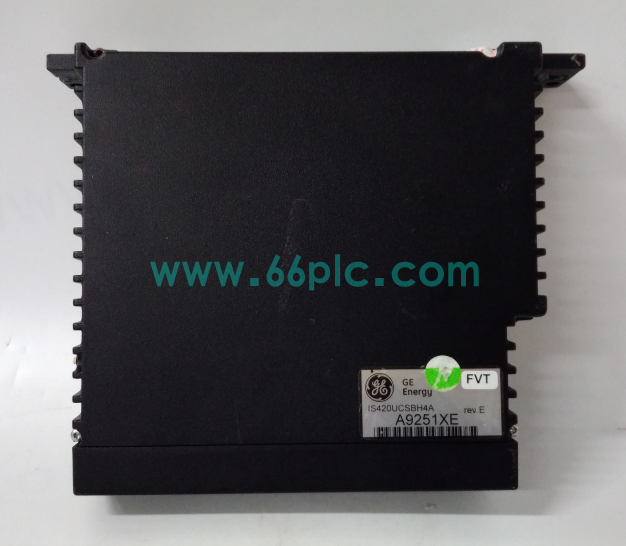

The GE IS420UCSBH4A is a high-end UCSB (Universal Control System Block) main controller serving GE Speedtronic Mark VIe turbine and generator control systems. As the core standalone processing unit of the entire control platform, it undertakes complex control logic operation, global data scheduling, and I/O network management, dominating the automatic operation and safety regulation of gas and steam turbine units.

Powered by a 1066 MHz Intel EP80579 industrial processor and QNX real-time operating system, this module delivers ultra-fast algorithm calculation and microsecond-level clock synchronization. Adopting fanless and battery-free maintenance-free design, it supports multi-Ethernet redundant communication and flexible simplex/TMR redundant configuration. With industrial ruggedized circuit and low power consumption, it ensures long-term stable full-load operation in harsh turbine hall environments.

Main Specifications

1. Full Model: IS420UCSBH4A; Product Type: Mark VIe UCSB universal main control processor module
2. Applicable System: GE Speedtronic Mark VIe turbine, generator and combined-cycle control platforms
3. Core Function: System logic operation, data scheduling, network management and equipment automatic control
4. Processing Core: 1066 MHz high-speed Intel EP80579 industrial dedicated processor
5. Operating System: QNX real-time system for low-latency and high-precision control calculation

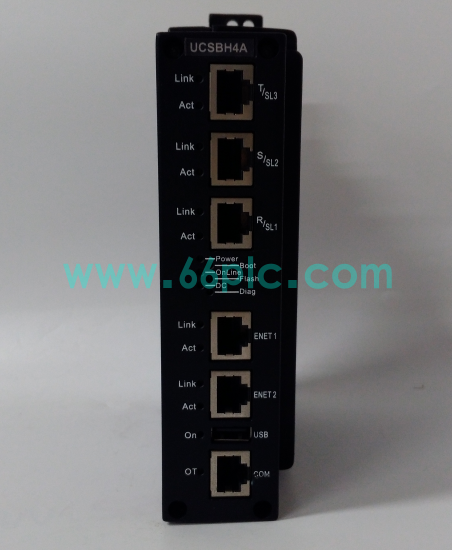

6. Network Configuration: 5-channel Ethernet ports for redundant IONET high-speed data interaction
7. Power Parameters: 28.7W peak power, 17.3W nominal power, 18V minimum working voltage
8. Sync Technology: Supports IEEE 1588 microsecond-level precise clock synchronization protocol
9. Structural Design: Fanless and battery-free structure, zero daily maintenance requirements
10. Reliability: Power safety grade certification, supporting 24/7 uninterrupted redundant system operation

Core Functions

1. Acts as the top-tier core main controller for GE Mark VIe turbine control systems.
2. Executes complex turbine regulation algorithms, safety interlock logic and unit load control.
3. Schedules and converges all field I/O module data to realize unified system operation.
4. Supports IEEE 1588 precise clock synchronization to ensure system-wide data consistency.
5. Builds redundant Ethernet network to prevent communication interruption and data loss faults.
6. Adopts maintenance-free design to reduce on-site equipment operation and maintenance costs.
7. Supports flexible simplex, dual and TMR triple redundant system configuration modes.
8. Monitors real-time system operating status and records fault logs for troubleshooting.
9. Optimizes control response efficiency to improve turbine unit operation accuracy and stability.
10. Guarantees safe, stable and efficient automatic operation of power generation units.

Application Scenarios

1. Large thermal power plant GE Mark VIe turbine core main control operation platforms
2. Industrial gas turbine and combined-cycle unit intelligent control core systems
3. Power plant generator set grid connection, load regulation and safety control projects
4. Petrochemical and offshore platform waste heat power generation turbine control systems
5. Energy industry high-reliability TMR redundant control system core configuration scenarios
6. Harsh turbine hall environment long-term unattended intelligent operation projects
7. Old Mark VIe system main control module upgrading and performance iteration transformation
8. Power generation automation full-network data synchronization and logic scheduling platforms
9. Industrial heavy-duty turbine complex working condition high-precision control scenarios
10. New energy and traditional power plant integrated intelligent control system construction
