Product Description

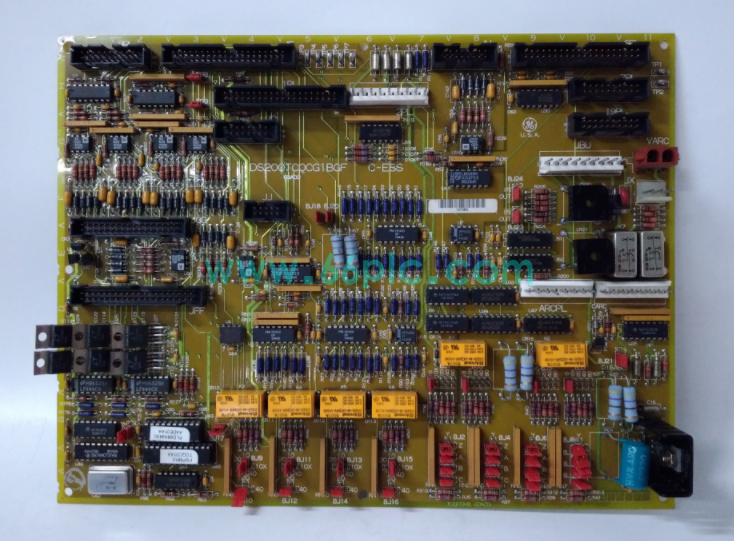

The GE DS200TCQCG1BGF is a multifunctional TCQC analog expansion and inter-core communication board tailored for GE Speedtronic Mark V turbine control systems. It serves as a key signal expansion and data interaction hub, responsible for analog signal conditioning, LVDT sensor excitation, and inter-processor data transmission, supporting precise signal expansion and stable linkage for turbine core control units.

Adopting industrial multi-layer PCB and high-density connector layout, this module integrates TMR voting logic processing and IONET network termination functions. Equipped with multiple configurable jumpers and reserved test points, it realizes accurate signal scaling and noise filtering. With excellent anti-interference and structural stability, it ensures reliable data synchronization and analog signal processing for long-term turbine system redundant operation.

Main Specifications

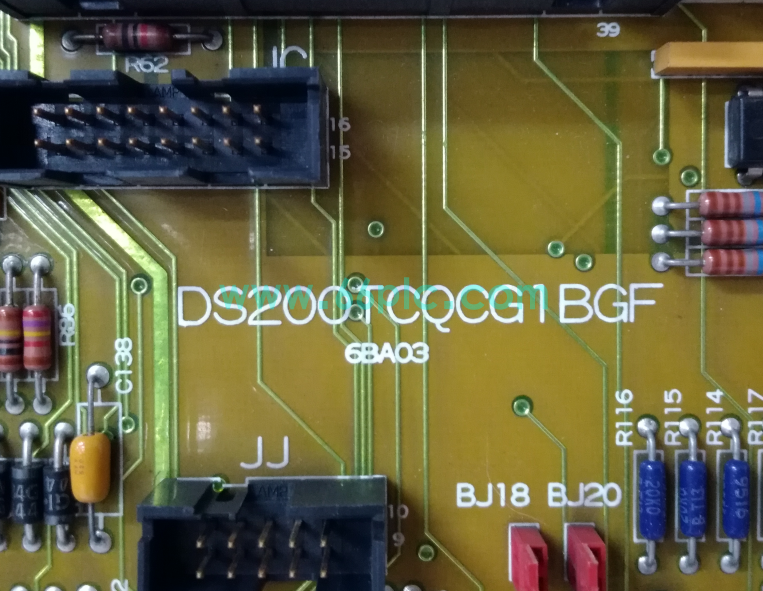

1. Full Model: DS200TCQCG1BGF; Product Type: TCQC analog expansion and inter-core communication control board
2. Applicable System: GE Speedtronic Mark V gas and steam turbine control and EX2000 excitation systems
3. Core Function: Analog signal expansion, signal conditioning, inter-core communication and TMR voting logic processing
4. Sensor Support: Provides stable excitation power for LVDT and LVDR displacement sensors
5. Connector Configuration: Equipped with 3×40-pin, 3×34-pin and 1×16-pin standard docking interfaces
6. Adjustment Design: 24 on-board jumpers for flexible signal scaling and parameter calibration
7. Network Function: Integrated IONET network termination to support system high-speed data interaction
8. Logic Processing: Supports 2-out-of-3 TMR voting logic to improve system fault tolerance
9. Circuit Performance: Built-in signal filtering circuit to suppress industrial electromagnetic crosstalk
10. Reliability: Power industrial grade certification, adapting to 24/7 continuous redundant control operation

Core Functions

1. Acts as the core analog expansion and inter-core communication unit for GE Mark V turbine systems.
2. Expands and conditions multi-channel field analog signals to supplement system I/O capacity.
3. Supplies stable excitation power for LVDT/LVDR displacement sensors to ensure accurate displacement monitoring.
4. Realizes high-speed data transmission and synchronous interaction between multiple control cores.
5. Executes TMR voting logic to filter abnormal data and improve system operation fault tolerance.
6. Calibrates and scales analog signals to match main control system recognition standards.
7. Terminates IONET network links to guarantee stable system network communication.
8. Resists on-site signal interference to maintain authenticity and stability of acquisition data.
9. Simplifies system wiring logic and facilitates daily circuit debugging and maintenance.
10. Guarantees coordinated and stable operation of turbine redundant control systems.

Application Scenarios

1. Thermal power plant GE Mark V turbine redundant core control signal expansion platforms
2. Industrial gas turbine unit LVDT displacement sensor excitation and signal processing systems
3. Power plant EX2000 excitation system inter-core data communication supporting projects
4. Petrochemical waste heat power generation turbine multi-core synchronous control scenarios
5. Large generating set TMR voting logic redundant operation guarantee systems
6. Turbine hall harsh electromagnetic environment analog signal precision processing scenarios
7. Old GE Speedtronic Mark V system TCQC expansion board replacement and upgrading
8. Industrial turbine IONET network communication termination and data interaction platforms
9. Power generation equipment analog signal calibration and expansion transformation projects
10. Energy industry high-reliability turbine multi-core cooperative control application scenarios
