Product Description

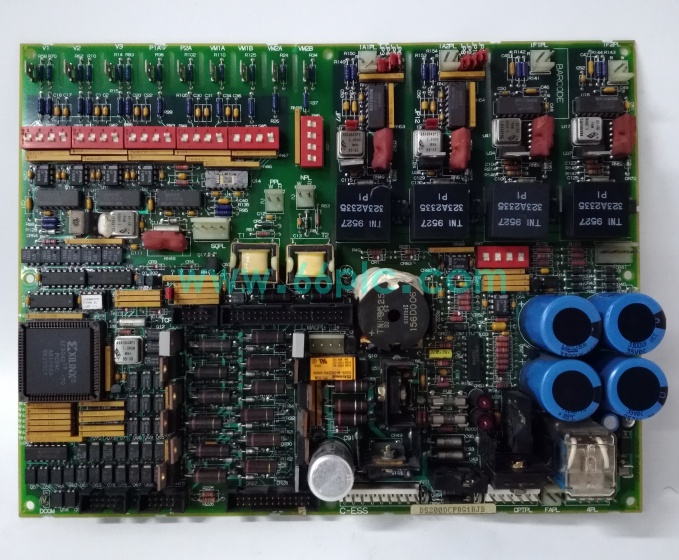

The GE DS200DCFBG1BJB is a dedicated DC feedback and power supply control board for GE Speedtronic Mark V turbine and excitation control systems. It acts as a core power regulation and signal feedback unit, responsible for multi-channel DC power output, field voltage and current sampling, and real-time signal feedback to support precise excitation adjustment and stable drive system operation.

Adopting industrial power circuit design and high-precision signal acquisition architecture, this module integrates power conversion, signal monitoring and fault diagnosis functions. It supports triple DC output and DIP switch parameter configuration, with built-in fuse monitoring and over-protection mechanisms. Featuring strong anti-interference performance and ruggedized structure, it delivers long-term stable power supply and accurate feedback data for heavy-duty power generation turbine units.

Main Specifications

1. Full Model: DS200DCFBG1BJB; Product Type: Industrial DC power supply and excitation feedback control board
2. Applicable System: GE Speedtronic Mark V series, EX2000 excitation and turbine drive control systems
3. Core Function: Multi-channel DC power output, field current/voltage sampling, signal feedback and fault monitoring
4. Power Output: Supports triple independent outputs of +24VDC, -24VDC and +5VDC control power
5. Configuration Mode: Equipped with DIP switches for flexible voltage scaling and parameter calibration
6. Monitoring Design: Independent fuse monitoring circuit for real-time power loop fault detection
7. Signal Processing: High-precision DC signal collection and conversion for excitation closed-loop regulation
8. Circuit Protection: Built-in overvoltage, overcurrent and short-circuit protection mechanisms
9. Heat Dissipation: Ventilation grille structure design to ensure low-temperature continuous operation
10. Reliability: Power industry grade certification, adapting to 24/7 heavy-load turbine system operation

Core Functions

1. Serves as core power supply and signal feedback component for GE Mark V turbine control systems.
2. Provides stable multi-channel DC control power for I/O modules, drivers and cooling fans.
3. Accurately samples generator field voltage and current signals for excitation regulation reference.
4. Converts analog field signals into identifiable data for main controller logic operation.
5. Supports manual parameter calibration via DIP switches to adapt different operating conditions.
6. Monitors fuse status in real time to quickly locate power circuit faults.
7. Realizes closed-loop feedback adjustment to stabilize generator excitation output state.
8. Shields industrial electromagnetic interference to ensure power supply and signal accuracy.
9. Matches system redundant configuration to support high-reliability unit operation.
10. Guarantees safe and stable operation of power generation excitation and drive control systems.

Application Scenarios

1. Thermal power plant GE Mark V turbine excitation control system core power supply platforms
2. Industrial gas turbine unit DC drive power distribution and signal feedback systems
3. Power plant EX2000 excitation cabinet precision monitoring and regulation supporting modules
4. Large generator set field current and voltage closed-loop control scenarios
5. Petrochemical waste heat power generation turbine control power stabilization systems
6. Self-provided power plant heavy-duty turbine continuous operation guarantee projects
7. Harsh electromagnetic environment power system signal acquisition and processing scenarios
8. Old GE Speedtronic Mark V system power feedback board replacement and upgrading
9. Power generation equipment redundant power supply and fault monitoring supporting systems
10. Energy industry turbine drive and excitation high-precision control application scenarios
