Product Description

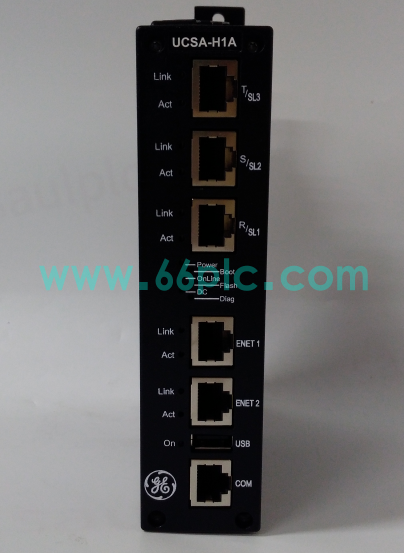

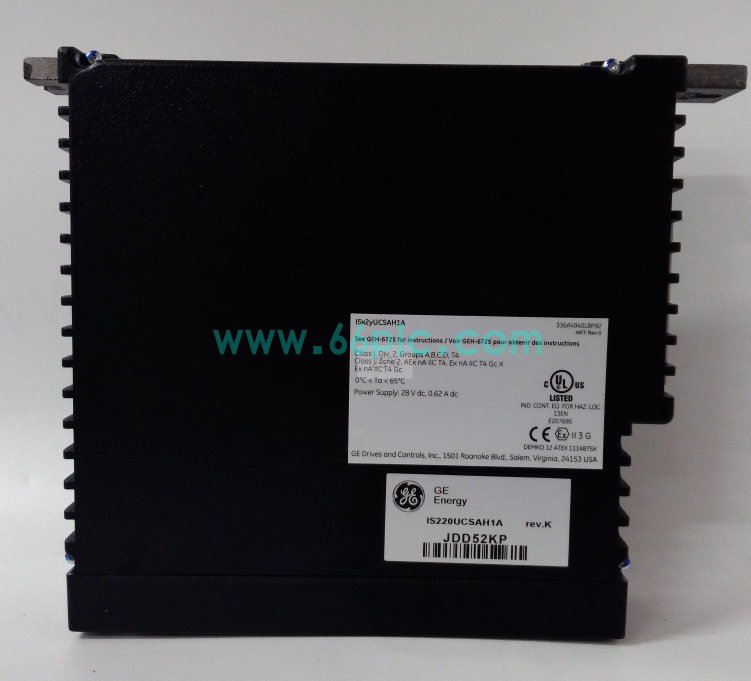

The GE IS220UCSAH1A is a high-performance embedded controller module for GE Speedtronic Mark VIe turbine control systems. Powered by a 667MHz industrial processor and running QNX real-time system, it executes core control logic, algorithm operation and equipment scheduling, serving as the central computing unit for gas and steam turbine automatic control.

It features independent IONet private Ethernet interface, large-capacity memory and industrial conformal coated circuit design. With wide temperature resistance and strong electromagnetic anti-interference capability, it supports stable long-cycle operation in harsh power plant environments. This module ensures accurate logic judgment, fast command response and reliable synchronous control for power generation turbine systems.

Main Specifications

1. Full Model: IS220UCSAH1A; Product Type: Industrial embedded real-time turbine control processor module
2. Applicable System: GE Speedtronic Mark VIe, EX2100e and LS2100e power generation control systems
3. Core Function: Core logic operation, control algorithm execution, I/O scheduling and system operation management
4. Processor Configuration: Equipped with 667MHz Freescale 8349 high-speed industrial processor
5. Memory Storage: 256MB SDRAM + 1GB CompactFlash for program and data storage
6. Operating System: Runs stable QNX real-time operating system for low-delay control response
7. Communication Interface: Integrated dedicated IONet private Ethernet for internal I/O module interaction
8. Power Specification: 18-36VDC wide-range power supply with 12W low power consumption design
9. Environmental Resistance: -40°C to +70°C wide temperature operation and dust-proof moisture-proof structure
10. Reliability: Conformal coated PCB design, anti-interference and anti-vibration for 24/7 continuous operation

Core Functions

1. Acts as the core embedded computing and control unit for Mark VIe turbine control racks.
2. Executes complex turbine control algorithms and real-time logical judgment operations.
3. Manages and schedules all rack I/O modules to ensure orderly signal interaction.
4. Processes field monitoring data and issues accurate equipment control commands in real time.
5. Supports system program operation, data caching and long-term operating data storage.
6. Realizes high-speed data communication and synchronous linkage with upper monitoring systems.
7. Provides stable operation scheduling and fault judgment for turbine unit automatic control.
8. Resists complex on-site electromagnetic interference to guarantee control accuracy and stability.
9. Supports system configuration iteration and control logic parameter modification and storage.
10. Ensures safe, efficient and continuous automatic operation of power generation turbine equipment.

Application Scenarios

1. Power plant gas turbine and steam turbine Mark VIe core control system platforms
2. Thermal power generating unit automatic operation and intelligent control systems
3. GE EX2100e excitation control system core operation processing scenarios
4. Industrial heavy-duty turbine equipment real-time logic control and data computing projects
5. Power generation automation system program operation and I/O scheduling control scenarios
6. Harsh temperature and electromagnetic environment industrial control core applications
7. Large-scale power unit intelligent monitoring and automatic regulation control systems
8. Old GE turbine control system processor module replacement and performance upgrading
9. Energy power industry high-reliability real-time embedded control system scenarios
10. Distributed gas turbine control system core computing and management platforms
