Product Description

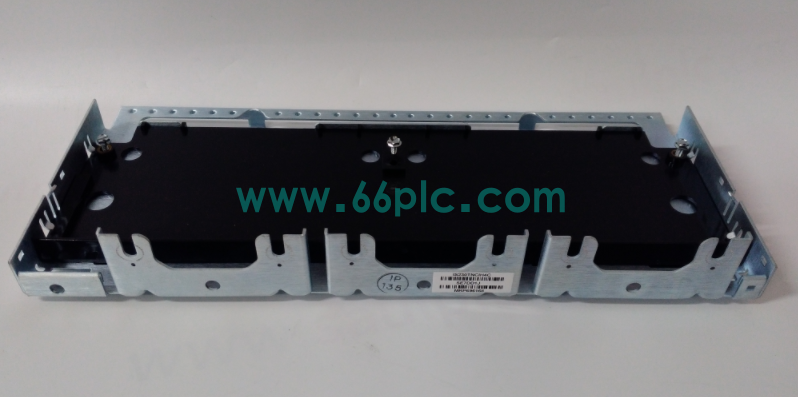

The GE IS230TNCIH4C is a high-reliability network communication interface module belonging to the GE Speedtronic Mark VIe turbine control system series. Serving as the core data exchange and network transmission hub for prime mover control platforms, it undertakes high-speed system internal data interaction, field control network docking, inter-module communication linkage and plant network data transmission tasks. It realizes efficient and stable data interaction between Mark VIe main control units, I/O modules and upper monitoring systems, ensuring real-time synchronization of control commands, operating parameters and fault data, and providing reliable network communication guarantee for safe and stable operation of thermal power generation and industrial turbine control systems.

Adopting industrial high-speed network transmission architecture and embedded communication processing algorithm, this module supports dual mainstream communication protocols of UDH (Unit Data Highway) and IONet, adapting to diversified Mark VIe system networking modes. It is fully compatible with 13-slot and 21-slot VME standard racks, supporting flexible deployment of simplex, dual redundant and TMR triple modular redundant system architectures to meet high-availability fault-tolerant control requirements of key power generation equipment. Equipped with stable signal scheduling and data error correction mechanisms, it effectively avoids data packet loss, transmission delay and signal crosstalk in complex industrial network environments. Built-in complete communication status self-diagnosis and link fault detection functions support real-time network anomaly early warning and automatic link switching. With industrial-grade EMC anti-interference performance, wide-temperature rugged design and moisture-proof, dust-proof structural advantages, it supports 24/7 uninterrupted high-speed network communication operation for mission-critical Mark VIe control systems.

Main Specifications

1. Full Part Number: IS230TNCIH4C; Product Type: Speedtronic Mark VIe series turbine network communication interface module
2. Applicable System: GE Speedtronic Mark VIe turbine control systems, generator set monitoring platforms and VME rack-based control systems
3. Core Function: High-speed network data transmission, inter-module communication linkage, system network docking and communication status monitoring
4. Communication Protocol: Dual-protocol support for UDH and IONet, adapting to multiple Mark VIe system networking architectures
5. Rack Compatibility: Perfectly compatible with 13-slot and 21-slot standard VME system racks for flexible cabinet layout
6. Redundancy Modes: Supports simplex, dual redundant and TMR triple modular redundant system configuration deployment
7. Transmission Performance: Low-latency high-speed data interaction, ensuring real-time synchronization of control and monitoring data
8. Data Processing: Built-in data error correction and packet filtering mechanism to improve network transmission accuracy and stability
9. Diagnostic Mechanism: Full-time network link status monitoring, communication fault detection and module operation self-diagnosis alarm
10. Fault Tolerance: Supports automatic link switching during network anomalies to ensure uninterrupted system data transmission
11. Humidity Adaptation: 5%–95% non-condensing humidity tolerance, adapting to humid industrial workshop environments
12. Operating Temperature: Wide temperature working range (-20°C to +70°C) for harsh on-site temperature fluctuation scenarios
13. Anti-Interference Ability: Industrial-grade EMC electromagnetic compatibility design, resisting field electromagnetic interference and network signal jitter
14. Structural Feature: Standard plug-in modular design for quick rack installation, network debugging and routine maintenance
15. Matching Performance: 100% compatible with Mark VIe main control boards, I/O modules and upper system software
16. Reliability: Power industry high-availability certification, suitable for long-cycle uninterrupted critical control system network communication tasks

Core Functions

1. Act as the dedicated high-speed network communication core hub for GE Mark VIe turbine and generator control systems.
2. Realize efficient data interaction and command linkage between main control units and field I/O modules to ensure system synchronous operation.
3. Support dual communication protocol switching and multi-mode redundant networking to improve system communication flexibility and fault tolerance.
4. Complete real-time transmission of equipment operating parameters, alarm information and control instructions for upper monitoring analysis.
5. Execute full-time network status self-diagnosis and abnormal link protection to avoid system communication failure and data loss.
6. Guarantee long-term low-latency, high-stability and uninterrupted network communication operation for industrial power generation control systems.

Application Scenarios

1. Thermal power plant gas turbine and steam turbine Mark VIe system internal network data interaction platforms
2. Power generation industry generator set TMR redundant control system high-reliability communication guarantee scenarios
3. Petrochemical self-provided power station industrial turbine control system network docking and data transmission systems
4. Large industrial compressor and prime mover equipment distributed control network linkage operation scenarios
5. Replacement and performance upgrading of aging communication interface modules for GE Speedtronic Mark VIe systems
