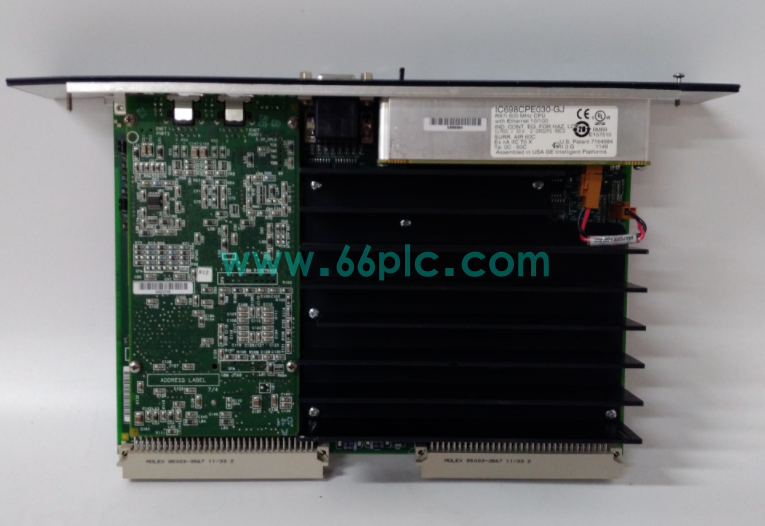

The GE IC698CPE030 is a high-speed core CPU module belonging to the GE PACSystem RX7i VME industrial control platform. As the central logic processing and system scheduling unit for medium and large-scale automation control systems, it undertakes program execution, field I/O data processing, logic operation and system communication management tasks, delivering stable and high-efficiency core computing support for complex industrial process control and equipment linkage scenarios.

Powered by a 600MHz Pentium-M industrial processor and equipped with high-capacity RAM and flash memory, this module supports large-scale control programs and high-speed logic scanning. It integrates dual 10/100Mbps adaptive Ethernet ports and multiple industrial communication protocols, enabling high-speed data exchange and remote system docking. Adopting rugged industrial hardware architecture and comprehensive self-diagnosis functions, it supports hot-swappable maintenance and stable fault tolerance. With ultra-wide temperature adaptability and excellent EMC anti-interference performance, it supports 24/7 uninterrupted long-cycle stable operation of critical industrial PAC control systems.

Main Specifications

1. Full Part Number: IC698CPE030; Product Type: PACSystem RX7i series high-performance industrial CPU module
2. Applicable System: GE PACSystem RX7i VME control racks, industrial process automation and equipment control platforms
3. Core Function: Industrial control program operation, logic computation, I/O data processing, system scheduling and network communication management
4. Processing Performance: 600MHz Pentium-M high-speed industrial processor for low-latency complex logic operation
5. Memory Configuration: Built-in high-capacity RAM and non-volatile flash memory for program and data storage
6. Communication Ports: Dual 10/100Mbps self-adaptive Ethernet interfaces supporting full/half-duplex switching
7. Protocol Compatibility: Supports EGD, Modbus/TCP and other mainstream industrial communication protocols
8. Programming Environment: Compatible with Proficy Machine Edition software and multiple standard programming languages
9. Diagnostic Mechanism: Full-range system self-diagnosis for program operation, communication links and hardware status
10. Expandability: Supports large-capacity expandable I/O points to meet complex automation control demands
11. Environmental Performance: Ultra-wide temperature resistance and strong industrial electromagnetic interference suppression capability
12. Matching Performance: Perfect original compatibility with GE RX7i series rack and functional modules
13. Structural Feature: Standard VME rack-mounted modular design for convenient installation and maintenance
14. Reliability: Industrial rugged certified design for long-cycle uninterrupted heavy-duty control tasks

Core Functions

1. Act as the core computing and logic control hub for GE PACSystem RX7i industrial automation systems.
2. Execute real-time industrial control logic programs and high-speed scanning of field I/O signals.
3. Process and analyze mass field data to realize accurate process parameter regulation and equipment control.
4. Support multi-protocol high-speed Ethernet communication to complete internal and external system data interaction.
5. Perform full-system operational self-diagnosis to ensure stable and fault-tolerant system operation.
6. Guarantee long-term continuous, high-efficiency and reliable operation of complex industrial control systems.

Application Scenarios

1. Energy, power and petrochemical industry large-scale process automation control systems
2. Metallurgy, machinery manufacturing and heavy industry complex equipment linkage control platforms
3. Intelligent factory automated production line multi-axis and multi-device collaborative control scenarios
4. Replacement and upgrading of aging GE RX7i series core processor modules
5. Industrial sites requiring high-speed computing, expandable I/O and long-term stable control performance
