Product Description

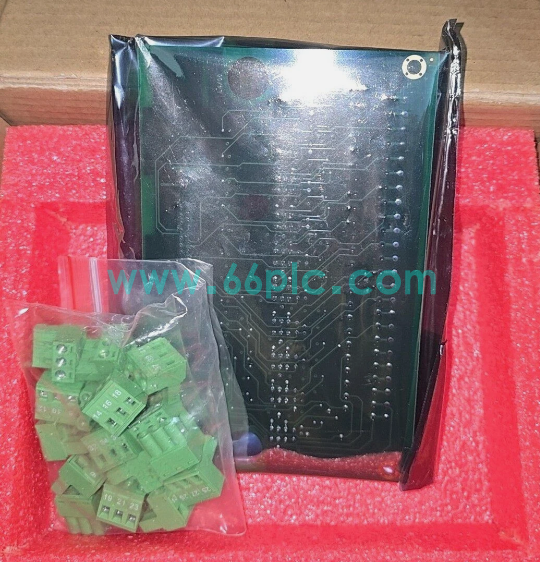

The GE IS200STAIH2A is a high-density industrial analog terminal board designed for GE Speedtronic Mark VI and Mark VIe turbine control systems. As a dedicated field signal docking and conditioning unit for turbine control racks, it undertakes analog signal termination, conversion and transmission tasks between field transmitters and upper PAIC control packs, ensuring stable and accurate acquisition of thermal system process parameters.

This module features a compact DIN rail-mounted structure and high-density Euro-block terminal design, supporting 10 analog input channels and 2 analog output channels for multi-point process signal integration. It is compatible with 2-wire, 3-wire, 4-wire field transmitters and external power sensor devices, covering diverse industrial signal wiring requirements. Adopting turbine-grade anti-vibration, high-temperature resistant and EMC anti-interference circuit design, it effectively suppresses power plant field electromagnetic noise and signal distortion. With built-in signal filtering and stable circuit processing performance, it supports 24/7 long-term reliable operation of gas and steam turbine monitoring and control systems.

Main Specifications

1. Full Part Number: IS200STAIH2A; Product Type: Mark VIe series simplex analog I/O terminal board
2. Applicable System: GE Speedtronic Mark VI / Mark VIe turbine control systems and power generation unit control platforms
3. Core Function: Field analog signal termination, multi-channel signal conditioning, data transmission and turbine parameter docking
4. I/O Configuration: 10-channel analog input and 2-channel analog output for integrated signal processing
5. Wiring Compatibility: Adaptable to 2-wire, 3-wire, 4-wire transmitters and externally powered sensors
6. Structural Design: Standard DIN rail installation with high-density Euro-style terminal blocks
7. Matching Device: Perfectly interfaced with Mark VIe PAIC assembly control packs for system integration
8. Signal Performance: Built-in filtering circuit to eliminate field interference and ensure signal integrity
9. Environmental Resistance: Turbine-grade vibration resistance, high temperature tolerance and strong EMC shielding
10. Reliability: Industrial PCB rugged design for long-cycle power generation equipment monitoring tasks

Core Functions

1. Act as the dedicated analog signal termination and conditioning core for GE Mark VIe turbine racks.
2. Realize centralized docking and standardized termination of field turbine analog signals.
3. Accurately collect multi-point process parameters such as temperature, pressure and flow rate.
4. Output analog control signals to regulate field auxiliary equipment and execution units.
5. Filter and optimize field signals to avoid data distortion caused by on-site interference.
6. Ensure stable data interaction and synchronous operation of turbine control system loops.

Application Scenarios

1. Power plant gas turbine and steam turbine Mark VIe system analog signal acquisition platforms
2. Combined cycle power generation unit thermal parameter monitoring and signal conditioning scenarios
3. Industrial power generation equipment process variable collection and control signal output systems
4. Replacement and upgrading of aging GE Mark VIe series analog terminal boards
5. Power station turbine control sites requiring multi-channel high-stability analog signal processing
