Product Description

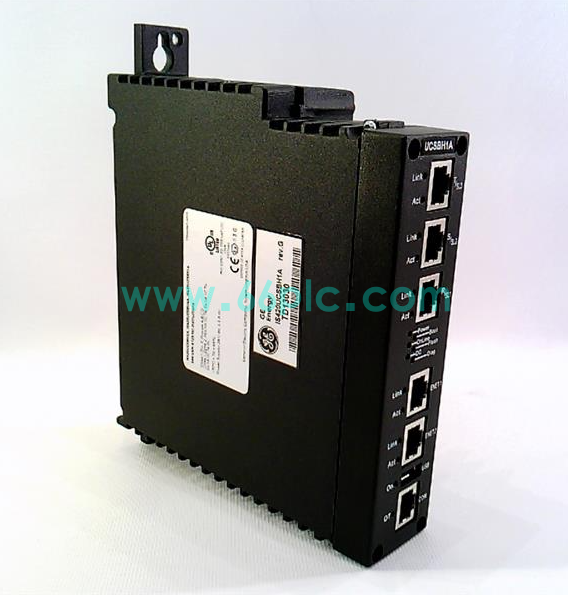

The GE IS420UCSBH1A is a high-performance safety-grade universal control processor module designed for the GE Mark VIe turbine and power generation control systems. As the core logic computing and safety scheduling unit of the Mark VIe rack system, it undertakes real-time control logic operation, equipment sequence scheduling, safety interlock judgment and system network data processing tasks. Serving as a standalone self-contained controller, it independently executes dedicated control algorithms for key power equipment, providing core computing and safety protection support for gas turbines, steam turbines and auxiliary power generation units.

Main Specifications

1. Full Part Number: IS420UCSBH1A; Product Type: Mark VIe series UCSB universal safety control processor module
2. Applicable System: GE Mark VIe turbine control system, power generation safety protection and process automation platform
3. Core Function: Real-time logic operation, safety interlock control, equipment sequence scheduling, high-speed network communication and clock synchronization
4. Processing Performance: 600 MHz high-speed industrial processor with triple redundant hardware voting logic
5. Safety Grade: Compliant with SIL 2 industrial safety certification for critical equipment protection control
6. Clock Synchronization: Support IEEE 1588 protocol to achieve microsecond-level system time synchronization
7. Network Interface: Dual 100 Mbps Ethernet ports for redundant high-speed data transmission
8. Programming Feature: Support online program minor modification without system shutdown and restart
9. Expansion Capability: Compatible with multiple Mark VIe series expansion I/O modules for system function expansion
10. Configuration Mode: Full software configuration design without manual jumper adjustment
11. Diagnosis Function: Built-in full-range system self-diagnosis, hardware fault monitoring and abnormal recording mechanism
12. Structural Feature: Integrated all-in-one modular design with built-in power circuit for simplified installation
13. Operational Reliability: Strict power industry safety tests and aging verification, low failure rate for long-term safety control tasks

Core Functions

1. Act as the core safety control and logic computing unit for GE Mark VIe system control racks.
2. Independently execute industrial control programs and real-time logic judgment for power generation equipment.
3. Complete high-precision clock synchronization and data interaction of the whole system via IEEE 1588 protocol.
4. Realize safety interlock protection and sequence scheduling of turbines and auxiliary power equipment.
5. Support redundant network communication to ensure stable and continuous system data transmission.
6. Enable online non-stop program debugging and parameter modification to improve maintenance efficiency.
7. Perform real-time self-diagnosis of hardware and operating status to quickly locate system faults.
8. Guarantee high-safety, high-efficiency and stable operation of power generation unit control systems.

Application Scenarios

1. Thermal power plant steam turbine and generator Mark VIe system core safety control platforms
2. Energy industry gas turbine unit real-time logic operation and safety interlock protection scenarios
3. Power generation industrial high-safety grade equipment monitoring and automatic control systems
4. Industrial sites requiring SIL 2 safety certification and high-reliability redundant control
5. Old GE Mark VIe system controller module replacement and power control system upgrading projects
6. Harsh power plant environments with temperature fluctuation, vibration and strong electromagnetic interference
7. All power generation equipment safety control applications based on GE Mark VIe system architecture
