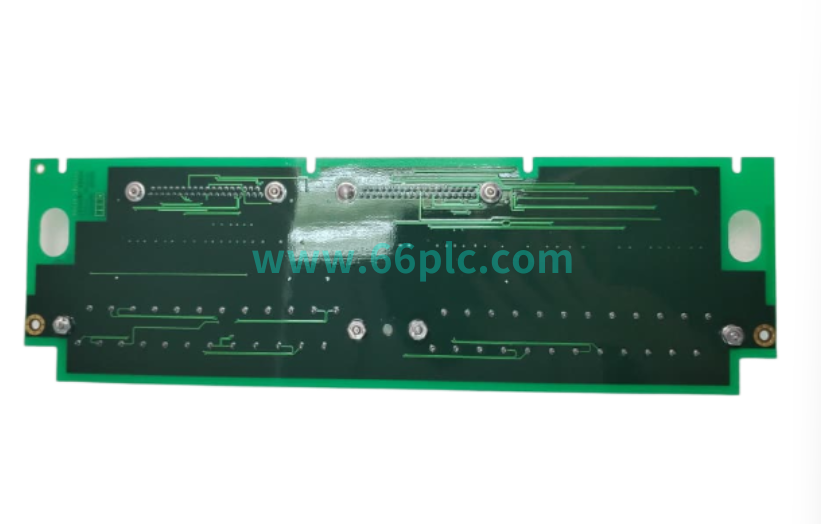

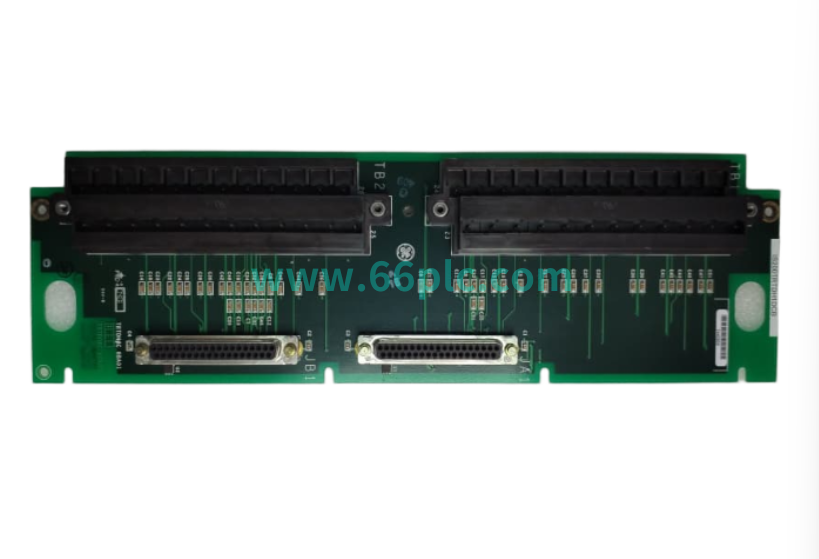

GE IS200TRTDH1DCB（TRTD）是Mark VIe控制系统专用RTD热电阻端子板，集成16路三线制RTD采集通道，输出10mA多路复用激励电流，适配Pt100温度传感器，采集轴承、定子、缸体等点位温度信号，经板卡调理后上传至I/O处理器。

GE IS200TRTDH1DCB (TRTD) is a dedicated RTD terminal board for Mark VIe control system. It integrates 16 three-wire RTD channels and supplies 10mA multiplexed excitation current for Pt100 sensors. It collects temperature signals from bearings, stators and cylinder surfaces, then transmits conditioned data to I/O processors.

板卡自带输入浪涌抑制与高频噪声滤波电路，支持RTD断线、短路故障自动识别隔离，全板喷涂三防漆。属于停产存量备件，多用于联合循环机组汽机、燃机温度监测回路维保，是机组超温保护、热平衡计算的关键采集板卡。

This board is equipped with surge suppression and high-frequency noise filtering circuits, and can automatically detect and isolate open or shorted RTD channels. Full-board conformal coating is applied. It is a discontinued legacy spare part widely used for temperature monitoring loop maintenance of gas and steam turbines, critical for over-temperature protection and thermal balance calculation.

Main Specifications 技术参数

• 1. Product Series / 产品系列：GE Speedtronic Mark VI / Mark VIe Turbine Control System

• 2. Part Numbers / 型号编码：IS200TRTDH1DCB (TRTD RTD Terminal Board)

• 3. Function Type / 类型：RTD Temperature Input Terminal Board 热电阻温度端子板

• 4. Key Features / 特性：16 three-wire RTD channels, 10mA excitation current, open/short detection, noise suppression, conformal coating

• 5. Mounting / 安装：标准Mark VIe机架插槽安装，配套PRTD I/O模块，24VDC供电

Core Functions 核心功能

• 1. 为三线制Pt100热电阻提供激励电流，完成温度电阻信号采集与转换。
  Supply excitation current for 3-wire Pt100 sensors and convert resistance signals into temperature data.

• 2. 实时监测通道状态，识别RTD断线、短路故障，隔离异常通道不影响其他测点。
  Monitor channel status, detect RTD open/short faults and isolate faulty channels automatically.

• 3. 输入回路集成浪涌与噪声抑制，适配厂房强电磁干扰工况，保障测温精度。
  Built-in surge and noise suppression to ensure measuring accuracy under strong EMI environment.

• 4. 将温度数据上传至PRTD I/O处理器，支撑机组超温报警、保护联锁逻辑。
  Transmit temperature data to PRTD I/O pack for unit over-temperature alarm and protection interlock.

• 5. 兼容接地与非接地RTD传感器，最大允许引线电阻15Ω，传感器最远可达300米。
  Support grounded and ungrounded RTDs, max lead resistance 15Ω, sensor distance up to 300m.

Application Scenarios 应用场景

• 1. 联合循环电站燃气轮机、蒸汽轮机Mark VIe控制柜轴承温度监测回路备件更换。
  Spare replacement for bearing temperature monitoring loops of gas and steam turbine Mark VIe cabinets.

• 2. 发电机定子、绕组、冷却介质温度采集，用于机组温升监视与热保护。
  Temperature acquisition for generator stator, winding and cooling medium for thermal monitoring and protection.

• 3. 存量GE涡轮控制系统改造升级，老化TRTD温度端子板替换更新。
  Retrofit of legacy GE turbine control systems and replacement of aging TRTD boards.

• 4. 海外电站EPC项目成套备件供货，搭配PRTD I/O采集模块打包交付。
  Complete spare parts supply for overseas power EPC projects, matched with PRTD I/O packs.

• 5. 机组定期测温回路校验、故障排查，备用板快速恢复温度监控链路。
  Used for periodic calibration and troubleshooting, quickly restore temperature monitoring loop as spare.
