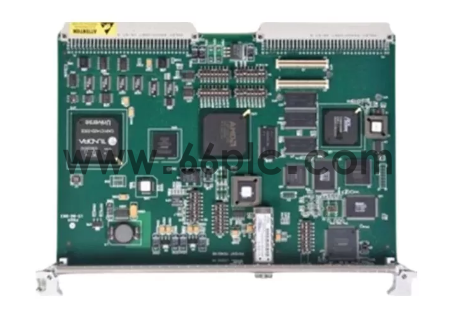

GE IS200AEPAH1AHD Mark VIe Analog Expansion Protection Board
GE IS200AEPAH1AHD是Speedtronic Mark VI / Mark VIe系统AEPA模拟扩展保护板,专门采集燃烧室高频动态压力信号,监测燃烧声学脉动,防止燃烧失稳导致机组误跳机。
GE IS200AEPAH1AHD is AEPA analog expansion protection board for Mark VI/VIe, sampling high-frequency dynamic pressure and monitoring combustion pulsation to prevent turbine nuisance trips.

板卡为VME机架插入式安装,电路板带三防涂层,内置信号调理与抗混叠滤波电路,配套EX2100励磁控制系统,广泛用于联合循环电站重型燃气轮机维保替换。
VME form factor with conformal coating, onboard signal conditioning and filter circuits, integrated with EX2100 excitation system for gas turbine maintenance and spare replacement.

Main Specifications 技术参数
1. Product Series / 产品系列:GE Speedtronic Mark VI / Mark VIe Turbine Control
2. Part Numbers / 型号编码:IS200AEPAH1AHD
3. Function Type / 类型:AEPA Analog Expansion Protection Board 模拟扩展保护板
4. Key Features / 特性:High-frequency sampling, anti-aliasing filter, conformal coating, VME rack
5. Compatibility / 配套:EX2100 excitation system, Mark VIe control rack
Core Functions 核心功能
1. 燃烧室动态压力高速采集,实时捕捉燃烧振荡与声学脉动特征。
High-speed dynamic pressure acquisition to capture combustor oscillation and acoustic pulsation.2. 信号滤波与调理,滤除高频杂波,输出干净频谱数据给主控逻辑。
Signal filtering and conditioning to suppress noise and send spectrum data to main controller.3. 燃烧不稳定保护逻辑支撑,超限触发报警或联锁保护动作。
Support combustion instability protection logic, triggering alarm or trip on threshold violation.4. 板载自诊断,上报断线、传感器故障、卡件通讯异常信息。
Built-in self-diagnosis for wiring break, sensor fault and board communication error.5. 适配多燃烧器机型,可组态不同频段阈值适配不同燃机型号。
Configurable frequency band thresholds for multi-burner heavy-duty gas turbine models.
Application Scenarios 应用场景
1. 联合循环电站GE 7FA等重型燃机燃烧监测回路卡件更换。
Replacement of combustion monitoring board for GE 7FA heavy-duty gas turbines.2. Mark VIe控制系统升级改造,新增燃烧脉动保护测点扩容。
Mark VIe system retrofit for adding new combustion pulsation monitoring channels.3. 机组频繁燃烧脉动误跳机,备件替换老化AEPA采集板。
Replace aged AEPA boards to solve recurrent nuisance trips caused by pulsation signal drift.4. EX2100励磁配套机架整套备件供货,含校验与组态调试。
Full rack spare supply for EX2100 excitation system with configuration and function test.5. 海外电站燃机大修项目,VME系列工控板卡配套出口。
Overseas gas turbine overhaul project with VME series control spare export.
FAQ 常见问答
Q: What is the main purpose of IS200AEPAH1AHD? / IS200AEPAH1AHD主要作用是什么?
A: It monitors combustor dynamic pressure and combustion pulsation for gas turbine protection.
用于燃气轮机燃烧室动态压力、燃烧脉动监测,作为燃烧不稳定保护采集板。
Q: Can it work with Mark VI? / 是否兼容Mark VI系统?
A: Yes, it supports both Mark VI and Mark VIe turbine control platforms.
同时兼容Mark VI以及Mark VIe燃机控制平台。
Similar Models 相似型号
IS200AEPAH1AFD
IS200AEPAH1ACB
IS200AEPCH1BAA
IS200WETAH1AEC
IS200TBAIH1CED
