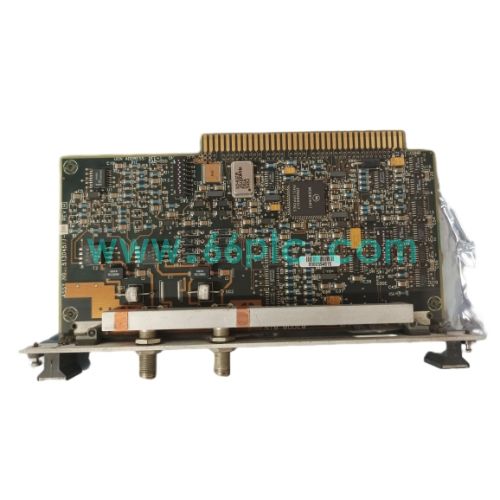

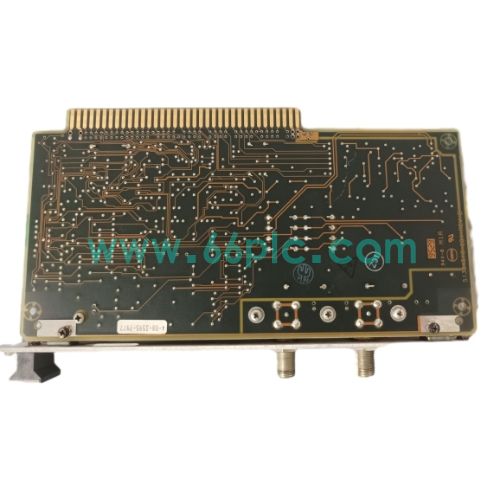

HONEYWELL 51304511-200 NIM Modem Communication Board

HONEYWELL 51304511-200 is a NIM Modem communication board designed for Honeywell TDC3000 DCS system. It serves as the core modem sub-board of the Network Interface Module, responsible for data encoding and decoding between the NIM unit and UCN universal control network.

This board supports Honeywell proprietary UCN communication protocol and provides stable high-speed data transmission for controllers and field devices on the UCN bus. It is widely used as spare replacement parts for maintenance and retrofit of legacy TDC3000 distributed control systems in petrochemical and power plants.

Main Specifications

1. Brand: HONEYWELL; Model:51304511-200; Type: NIM Modem Communication Board
2. Compatible System: Honeywell TDC3000 DCS, UCN universal control network
3. Communication Protocol: Honeywell proprietary UCN protocol
4. Data Rate: 50kbps ~ 2Mbps; Interface: UCN coaxial cable, JPI debug port
5. Power Supply: Powered by NIM rack; Weight: approx 0.45kg
6. Operating Temp: -20℃ ~ +60℃; Mounting: Installed inside NIM module slot
7. Supply Status: Obsolete spare board for TDC3000 system maintenance

Core Functions

1. Realize signal modulation and demodulation between NIM module and UCN control network.
2. Process UCN bus data packets and transmit data between DCS controllers and field nodes.
3. JPI debug port supports firmware download and online hardware fault diagnosis.
4. Maintain reliable communication for multiple devices on UCN bus under industrial interference.
5. Work cooperatively with NIM mainboard to complete network access and data exchange.
6. Standard slot installation, convenient disassembly and replacement during system overhaul.

Application Scenarios

1. Honeywell TDC3000 DCS control system in oil refineries, chemical plants and power stations.
2. UCN network communication data transmission and network interface control.
3. Replacement of damaged modem boards for existing TDC3000 DCS cabinets.
4. Spare parts inventory for factory DCS automation maintenance teams.
5. Retrofit and upgrade of old TDC3000 distributed control systems.
6. Process control and monitoring projects for heavy industrial process industries.

FAQ

1. Q: What is HONEYWELL 51304511-200 used for?
   A: It is a NIM modem communication board for TDC3000 DCS, responsible for UCN bus signal modulation and demodulation to realize network data communication.
2. Q: Which system can this board be applied to?
   A: It is specially matched with Honeywell TDC3000 DCS system and works on UCN universal control network.
3. Q: What is the JPI port on the board for?
   A: JPI is the debug port, used for firmware download and hardware fault diagnosis of the modem board.
