Product Description

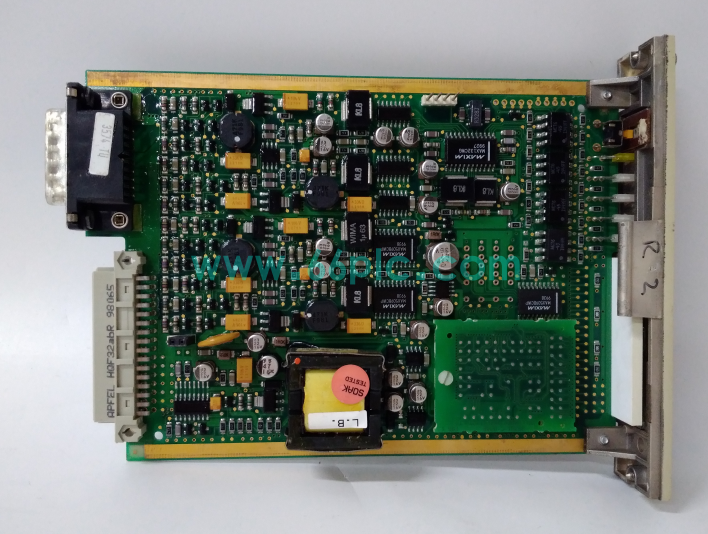

The Honeywell 05704-A-0144 is an 8-channel high-density relay output module developed for Honeywell System 57 fire and gas detection systems. It serves as a key safety signal output unit, converting internal system logic commands into physical relay switch signals to control on-site safety auxiliary equipment.

Featuring eight independent relay channels, the module supports multi-point centralized safety interlock and alarm output. It adopts industrial isolation and anti-interference design with stable contact load capacity. Compact in structure and easy to deploy, it delivers continuous and reliable switching execution for industrial fire and gas safety monitoring systems.

Main Specifications

1. Full Part Number: 05704-A-0144; Product Type: Industrial 8-channel high-density safety relay output module
2. Applicable System: Honeywell System 57 fire and gas safety detection and control platforms
3. Core Function: Safety logic signal conversion, multi-channel alarm output and on-site safety actuator linkage control
4. Channel Configuration: 8 independent relay output channels for high-density safety signal expansion
5. Working Mode: Configurable latching and non-latching modes for diverse safety logic demands
6. Contact Rating: Industrial standard load capacity, adapting to on-site alarm and micro-control equipment
7. Structural Design: Compact integrated layout, saving cabinet installation space
8. Environmental Performance: Adaptable to conventional indoor and industrial safety monitoring environments
9. Operation Stability: Low failure rate design, supporting long-term uninterrupted safety output
10. Matching Performance: Fully compatible with System 57 series host systems and peripheral accessories

Core Functions

1. Acts as a high-density relay output expansion unit for Honeywell System 57 safety systems.
2. Converts system fire and gas alarm logic into reliable relay switch actions.
3. Supports multi-channel synchronous output to realize multi-equipment safety linkage control.
4. Drives on-site buzzers, alarm beacons and auxiliary safety control devices.
5. Improves system safety loop expansion capability and on-site control flexibility.
6. Ensures stable and accurate execution of industrial safety alarm and interlock commands.

Application Scenarios

1. Petrochemical plant fire and gas detection multi-point alarm output control systems
2. Industrial hazardous area safety monitoring and multi-device linkage protection scenarios
3. Energy and chemical industry System 57 safety system signal expansion projects
4. Factory environmental safety monitoring and emergency alarm linkage control platforms
5. Replacement and capacity upgrading of aging relay modules for Honeywell safety systems
