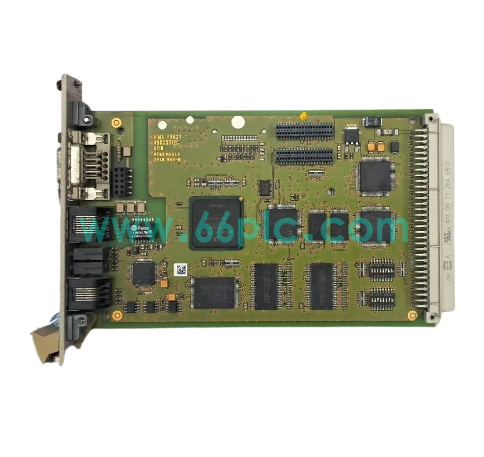

HIMA F8627X PROFIBUS‑DP Safety Communication Module

The HIMA F8627X is a SIL3‑certified PROFIBUS‑DP master communication module for HIMA HIMax safety instrumented systems. It builds deterministic fault‑tolerant fieldbus connections between the HIMA safety controller and PROFIBUS‑DP slave devices, transmitting safety‑related data for emergency shutdown and process safety interlock loops within process plants.

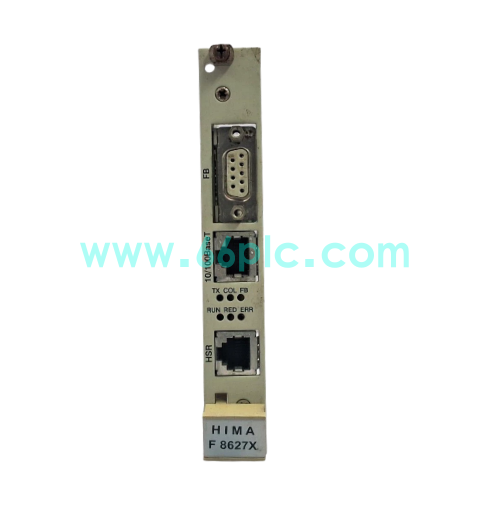

This rack‑mount plug‑in module features dual electrically isolated PROFIBUS‑DP interfaces and comprehensive bus diagnostic functions. Original production has been discontinued. It is widely supplied as aftermarket spare parts for oil‑gas, chemical and power‑plant SIS cabinet maintenance and safety system retrofitting projects.

Main Specifications

1. Brand:HIMA; Model:F8627X; Type:SIL3 PROFIBUS‑DP Master Safety Communication Module
2. Applicable Platform:HIMA HIMax H41q / H51q safety instrumented system chassis
3. Fieldbus Protocol:PROFIBUS‑DP V0 / V1, operates as fieldbus master station
4. Hardware Interface:Dual independent galvanic‑isolated PROFIBUS‑DP D‑Sub connectors
5. Safety Certification:SIL3 compliant according to IEC 61508 and IEC 61511 safety standards
6. Diagnostic Function:Bus error counting, slave‑station fault detection and module hardware self‑diagnosis
7. Supply Status:Original production discontinued, available as tested surplus or refurbished spare parts

Core Functions

1. Run as PROFIBUS‑DP master station to perform cyclic real‑time safety‑related data exchange with field slave devices.
2. Connect HIMA SIS safety controller to PROFIBUS‑DP remote I/O, variable‑frequency drives and intelligent field instruments.
3. Support acyclic parameter access for field‑bus device commissioning, parameter setting and diagnostic reading operations.
4. Detect bus cable failure, slave station offline and internal hardware faults, and push diagnostic alarms to the safety controller.
5. Provide galvanic isolation between bus channels to suppress industrial electromagnetic interference for stable field‑bus communication.
6. Serve as critical PROFIBUS‑DP fieldbus gateway hardware inside HIMA HIMax safety instrumented racks.

Application Scenarios

1. Oil & gas facilities, chemical plants, power‑generation units and other safety‑critical process‑industry sites.
2. Spare communication module replacement and routine maintenance of existing HIMA HIMax SIS control cabinets.
3. Technical renovation and communication‑reliability upgrade of aging SIL3 safety instrumented automation systems.
4. On‑site troubleshooting and replacement of faulty PROFIBUS‑DP safety communication modules on process production units.
5. Spare‑parts stocking for system integrators and SIS safety‑instrumented‑system professional maintenance contractors.
6. Global aftermarket spare supply for technicians maintaining obsolete HIMA HIMax series safety hardware.

FAQ

1. Q:Which safety system does F8627X adapt to?
   A:It is designed for HIMA HIMax H41q/H51q SIS platform and cannot be used for other HIMA series systems.
2. Q:Does F8627X support PROFIBUS‑DP slave mode?
   A:It is a master‑only module and cannot be configured as a PROFIBUS‑DP slave station device.

3. Q:Is this safety communication module still in original production?
   A:HIMA original manufacturing has been discontinued, only tested surplus and refurbished spare units are available.
