HIMA F8650X HIMax TMR Safety CPU Module

F8650X is the core triple modular redundant CPU module developed by HIMA Germany exclusively for HIMax safety instrumented systems (SIS). Built with dual synchronized 32-bit 386EX processors, it executes SIL 3 safety logic programs, coordinates all system I/O modules, and processes real-time field signals for emergency shutdown, fire & gas monitoring and burner management applications. It acts as the central decision-making unit to guarantee fail-safe operation under all industrial fault conditions.

This standard rack-mounted CPU board is equipped with dual RS485 serial communication ports and multi-group front diagnostic LEDs. It adopts full conformal coated PCB with wide temperature resistance, supports hot-swap maintenance without full system shutdown, and complies with TÜV Rheinland SIL 3 certification per IEC 61508. The integrated continuous self-diagnosis circuit delivers over 99% diagnostic coverage to detect internal hardware faults instantly.

Main Specifications

• Brand: HIMA (Germany); Model: F8650X; Series: HIMax Safety Instrumented System CPU
• Processor Architecture: Dual synchronized 32-bit Intel 386EX CPU, 25MHz clock speed, TMR triple redundant voting logic
• Onboard Memory: 1MB flash memory for safety program storage, ECC error correction for data integrity
• Communication Interfaces: Dual isolated RS485 ports for system bus, supporting HIMA internal protocol and Modbus RTU
• Safety Rating: SIL 3 certified (IEC 61508), Category 4 safety, diagnostic coverage >99%
• Power Supply: 24VDC nominal auxiliary power, typical power consumption 1.5W
• Physical Dimensions: 280 × 120 × 45mm, weight approx 1.5kg, standard rack slot installation, IP20 cabinet rating
• Operating Environment: -40℃ ~ +70℃ continuous working temperature, 5%–95% RH non-condensing, shock & vibration resistant industrial grade

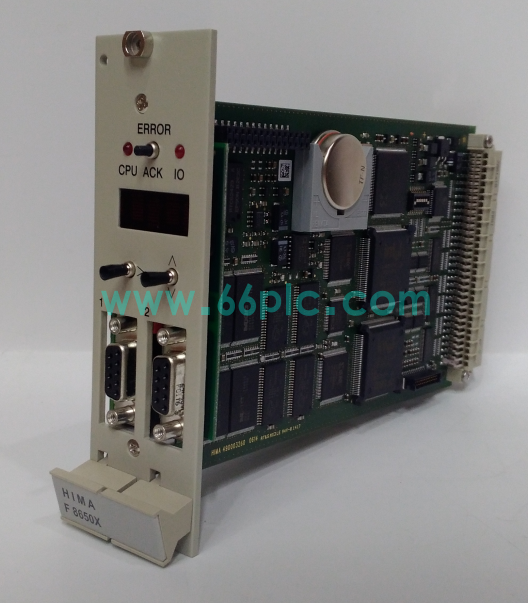

• Diagnostic Indicators: Front-panel ERROR, CPU, ACK, IO LED lights for fault, operation and communication status feedback
• Certifications: TÜV Rheinland SIL3, ATEX/IECEx Zone 2, UL 508, CE industrial compliance

Core Functions

• Execute pre-programmed SIL 3 safety control logic for ESD emergency shutdown, fire & gas detection and boiler burner management systems.
• TMR dual-processor voting mechanism filters single-channel hardware errors to avoid false safety trips and maintain continuous protection performance.
• Dual RS485 bus interfaces realize bidirectional data exchange with digital/analog safety I/O modules and upper monitoring SCADA systems.
• Full-time onboard self-diagnosis monitors CPU operation, memory integrity, bus communication and power supply, storing fault logs for maintenance analysis.
• Front LED status indicators provide instant visual troubleshooting without dedicated configuration software connection on site.
• Hot-swappable modular design allows independent CPU replacement without powering down the entire safety instrumented rack to minimize plant downtime.

Application Scenarios

• Safety CPU spare replacement for HIMA HIMax SIS cabinets in oil & gas refineries, offshore production platforms and petrochemical plants.
• Core control unit for thermal power plant boiler ESD, gas turbine emergency protection and hydropower station safety interlock systems.
• Maintenance backup inventory for chemical furnace BMS burner management, pipeline HIPPS high-integrity pressure protection systems.
• Matching central controller paired with HIMax series digital input/output, analog signal and relay safety modules.
• Retrofit replacement for aging safety systems suffering CPU communication failure, logic execution error and insufficient diagnostic coverage.

• Global aftermarket spare supply for process automation and safety instrumented system maintenance teams worldwide.
