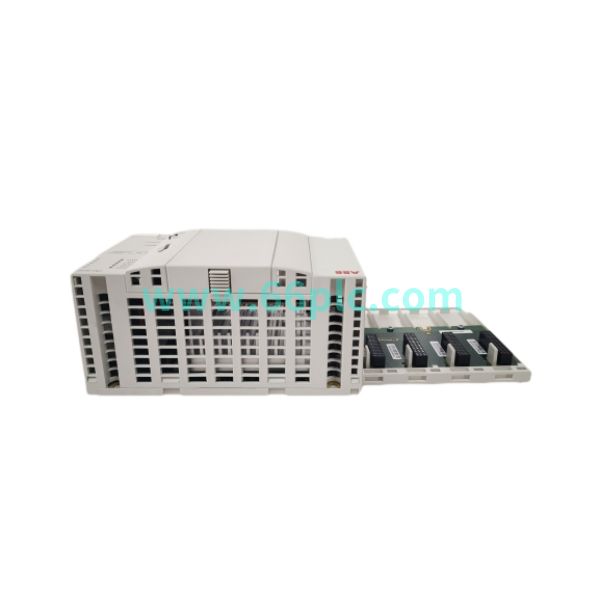

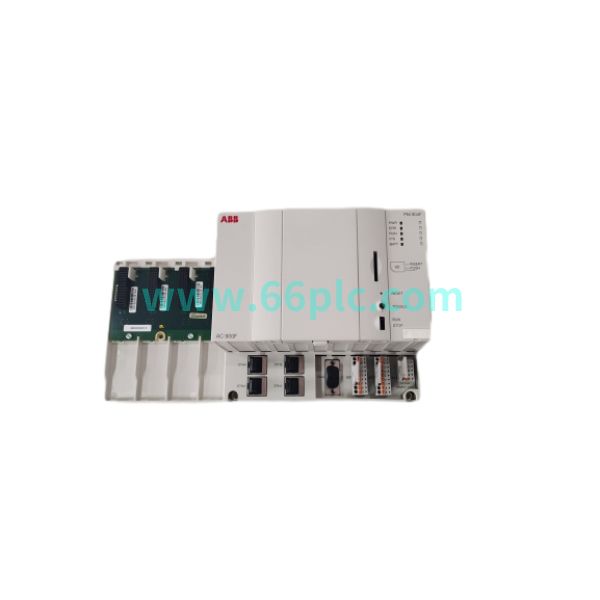

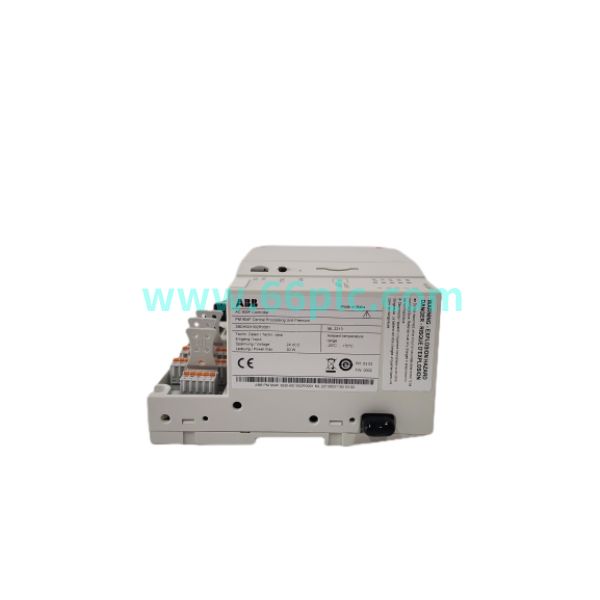

ABB PM904F 3BDH001002R0001属于Freelance DCS AC900F系列Plus版本CPU控制器模块，是整套AC900F控制单元的核心运算主机。模块自带四路以太网、一路诊断口与两路串行接口，相比标准款PM902F拥有更强的通讯扩展能力，最高可搭载4块现场总线模块。

ABB PM904F 3BDH001002R0001 is the Plus CPU module of AC900F controller family for ABB Freelance DCS, acting as the main processing unit of AC900F station. It comes with four Ethernet ports, one diagnostic interface and two serial ports. It supports up to four fieldbus modules, offering better expansion capacity than PM902F standard and PM901F lite models.

支持冗余控制器配置，最多接入1500个I/O点位，可直连S700本地I/O模块，兼容PROFIBUS DP、Modbus TCP/RTU、104规约等主流协议。适合大中型流程控制项目，是化工、电站、水处理Freelance DCS系统维修替换的核心备件。

Redundant controller configuration is supported, with maximum capacity of 1500 I/O points. It connects directly to S700 local I/O modules and supports PROFIBUS DP, Modbus TCP/RTU, IEC 60870-5-104 and other protocols. It is designed for medium and large process plants and serves as critical replacement spare for Freelance DCS in power, chemical and water industries.

Main Specifications 技术参数

• 1. Product Series / 产品系列：ABB Freelance DCS AC900F Controller

• 2. Part Numbers / 型号编码：PM904F，3BDH001002R0001

• 3. Function Type / 类型：AC900F Plus DCS主控CPU模块

• 4. Key Features / 特性：4×Ethernet, max 4 fieldbus slots, redundant capable, up to 1500 I/O, S700 I/O compatible

• 5. Mounting / 安装：DIN导轨安装，搭配S700 I/O端子底座

Core Functions 核心功能

• 1. 流程逻辑运算、连续调节控制，完成DCS系统闭环PID、顺控、联锁保护。
  Process logic calculation and continuous regulation, execute PID, sequence control and interlock protection for DCS.

• 2. 丰富总线扩展，接入远程I/O、变送器、阀门执行器、变频器等现场设备。
  Multi-bus expansion to communicate with remote I/O, transmitters, valves and variable frequency drives.

• 3. 支持主备冗余运行，故障自动无扰切换，提升整套控制系统可用等级。
  Primary/standby redundant operation with bumpless switchover to improve system availability.

• 4. 实时数据采集、趋势存储、报警管理，向上位操作员站、SCADA上传数据。
  Real-time data collection, trend and alarm management, upload data to operator stations and SCADA.

• 5. 板载自诊断，监测CPU、内存、通讯链路状态，快速定位控制器故障。
  Onboard self-diagnosis for CPU, memory and communication links to accelerate fault troubleshooting.

Application Scenarios 应用场景

• 1. 电厂、化工、污水厂Freelance AC900F DCS主控CPU损坏更换、停机检修。
  CPU replacement and shutdown maintenance for failed AC900F Freelance DCS in power, chemical and water plants.

• 2. 存量DCS系统扩容升级，增加总线接口、I/O点位，升级至PM904F高配控制器。
  Legacy DCS expansion upgrade, add fieldbus interfaces and I/O capacity by upgrading to PM904F Plus.

• 3. 冗余控制站备件储备，主备控制器轮换检修，避免单点故障造成装置停车。
  Spare inventory for redundant control stations, rotating overhaul to prevent plant shutdown from single point failure.

• 4. 海外流程自动化项目备件供货，配套程序下载、总线组态、冗余调试服务。
  Spare supply for overseas process automation projects, with programming, bus configuration and redundancy commissioning.

• 5. S700 I/O整套控制柜改造项目，同系列AC900F平台CPU替换兼容。
  Retrofit for S700 I/O cabinet, compatible replacement within AC900F Freelance platform.

FAQ 常见问答

Similar Models 相似型号

PM902F 3BDH001000R0001

PM901F 3BDH000998R0001

CI940F

TD951F

TA951F
