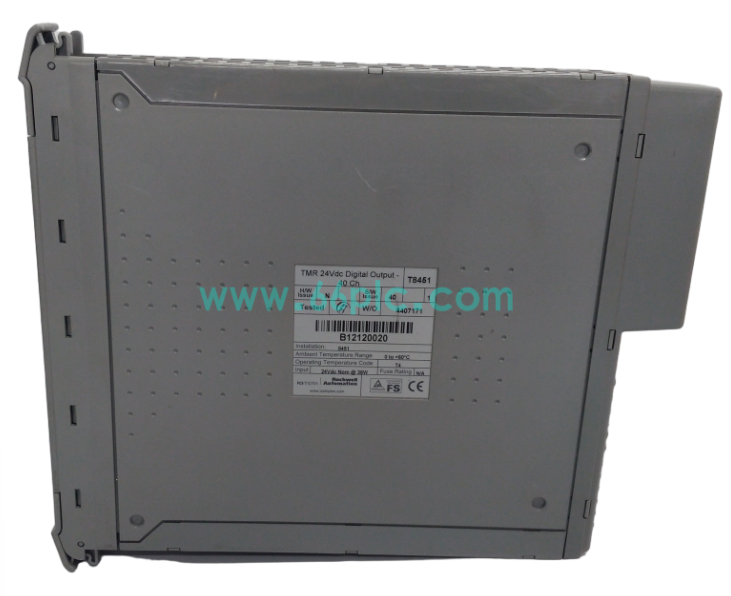

ICS TRIPLEX T8451 Trusted TMR 24VDC Digital Output Module

ICS TRIPLEX T8451 is a TMR triple‑modular‑redundant digital output module for ICS TRIPLEX Trusted safety instrumented system. It adopts triple‑voting fault‑tolerant architecture, providing 40‑channel 24VDC digital outputs to drive field solenoid valves, relays and actuators for ESD emergency shutdown and safety interlock protection loops.

This hot‑swap compliant module supports per‑channel line monitoring, detecting open‑circuit, short‑circuit and stuck‑on/stuck‑off faults. It obtains SIL3 safety certification, works with Trusted controller rack backplane bus. It is widely used as replacement spare‑part for on‑site troubleshooting, equipment maintenance and safety‑system retrofit projects.

Main Specifications

• Brand: ICS TRIPLEX (Rockwell Automation)
• Model: T8451
• Product Type: Trusted TMR 24VDC Digital Output Module
• Output Channels: 40 channels, max 2A per channel continuous current
• System Supply Voltage: 20‑32VDC, field operating voltage 18‑32VDC
• Safety Certification: SIL3 certified for safety‑instrumented‑system application
• Feature: TMR triple‑voting fault tolerance, hot‑swap supported, channel line‑fault monitoring
• Indicator: Front‑panel PWR, RUN, ERR and per‑channel LED status indicators
• Mounting: Trusted rack‑mount plug‑in single‑slot installation
• Operating Temperature Range:‑20℃ ~ +70℃
• Application: Spare‑part replacement for safety‑instrumented‑system SIS / ESD equipment

Core Functions

• Receive safety‑control commands from Trusted controller via rack backplane bus
• TMR triple‑modular‑voting logic ensures fault‑tolerant output for safety‑critical loops
• 40‑channel 24VDC output drives solenoid valves, contactors and safety‑related field actuators
• Per‑channel line monitoring detects open‑loop, short‑circuit and stuck‑output failure conditions
• Front‑panel LED indicators display power, running status and channel fault‑alarm information
• Hot‑swap function allows online module replacement without interrupting safety‑system operation
• Meet SIL3 safety integrity requirement for emergency shutdown and fire‑gas protection logic
• Standard rack‑mount plug‑in mechanical structure simplifies installation and spare‑part swap work

Application Scenarios

• Petrochemical plant SIS safety‑instrumented‑system ESD emergency‑shutdown cabinet configuration projects
• Oil‑gas‑industry fire‑gas protection and turbine safety‑interlock control supporting projects
• On‑site digital‑output‑module fault replacement and daily Trusted SIS‑system maintenance work
• Legacy safety‑system renovation for upgrading SIL3‑level fault‑tolerant output performance
• Legacy ICS TRIPLEX Trusted‑series module spare‑parts replacement scenarios
• Spare‑parts inventory backup for heavy‑industry plant safety‑control‑room cabinets
• SIS‑ESD cabinet safety‑output‑hardware maintenance supporting engineering projects
