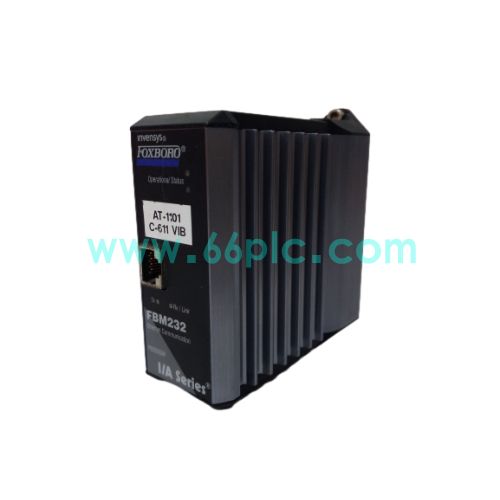

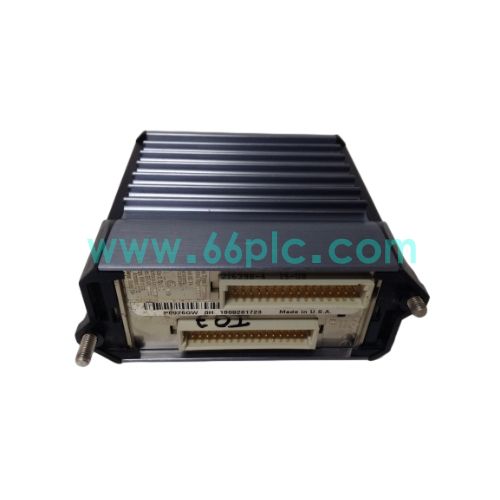

Foxboro FBM232 P0926GW Serial Communication Module

The Foxboro FBM232 with part number P0926GW is a serial communication interface module for Foxboro I/A‑Series DCS systems. It provides multi‑port RS‑232/RS‑485 serial interfaces for connecting third‑party instruments, analyzers and PLC devices. It realizes data interaction between external field equipment and the DCS controller via standard serial protocols.

This rack‑mount plug‑in module supports multiple serial communication baud rates and protocol configurations. It adopts electrical isolation to avoid ground‑loop interference from external devices. Front‑panel LED indicators show communication running and fault status for on‑site troubleshooting. It exchanges data with DCS main controller through FBM backplane bus. As obsolete aftermarket spare parts, it is widely used for DCS upgrade, maintenance and retrofitting projects in petrochemical, chemical and power plants.

Main Specifications

• Brand: Foxboro(Invensys); Model: FBM232; Part No:P0926GW; Type: Serial Communication Module
• Compatible System: Foxboro I/A‑Series DCS rack, FBM backplane bus, third‑party serial instruments and analyzers
• Core Functions: RS232/RS485 serial data transceiver, multi‑protocol support, channel galvanic isolation, backplane data transmission, communication status monitoring, fault LED indication
• Port Resource: FBM backplane connector, serial signal terminal block, module status LED indicators
• Supported Feature: Adjustable baud rate, noise suppression, communication error detection, hot‑swap capable
• Hardware Feature: Standard FBM rack plug‑in module, 24VDC system power supply, industrial‑grade design
• Supply Status: Aftermarket spare part for legacy process‑industry DCS‑system maintenance and component replacement

Core Functions

• Provide RS‑232 and RS‑485 serial physical interfaces to connect field analyzers, meters and auxiliary control equipment.
• Complete data receiving and forwarding between external serial devices and I/A‑Series DCS controller via backplane bus.
• Support multiple common serial communication protocols to realize seamless interconnection with multi‑brand third‑party devices.
• Built‑in isolation circuit effectively suppresses ground‑loop interference and protects internal DCS circuits.
• Real‑time monitor communication link state, capture transmission error and upload fault diagnostic information to DCS workstation.
• Realize data collection and command interaction for non‑standard field instruments to expand DCS system access capability.

Application Scenarios

• Third‑party device serial‑communication access for petrochemical, chemical and power‑plant sites adopting Foxboro I/A‑Series DCS platform.
• Fault communication‑module replacement and routine maintenance of existing Foxboro DCS control cabinets.
• Serial‑interface hardware upgrading and technical transformation for aging legacy distributed control systems.
• Emergency swap for communication‑module failure of continuously‑running key process‑production equipment.
• Spare‑parts stocking for plant instrument‑maintenance teams supporting Foxboro I/A‑Series DCS automation products.
• Aftermarket spare supply for DCS‑system overhaul and technical‑service projects of process‑industrial facilities.

FAQ

• Q: Can FBM232 P0926GW work independently without Foxboro DCS rack and controller?
  A: It must be installed in FBM rack and cooperate with DCS main controller, cannot complete serial‑data interaction as standalone hardware.
• Q: What are typical module failure symptoms?
  A: Communication interruption, data loss, frequent frame‑error alarm, LED status abnormal, no data exchange between DCS and external device.

• Q: How to complete commissioning and diagnosis?
  A: Inspect rack power supply and serial‑cable wiring; verify baud rate and protocol settings, check data transmission status on DCS workstation.
