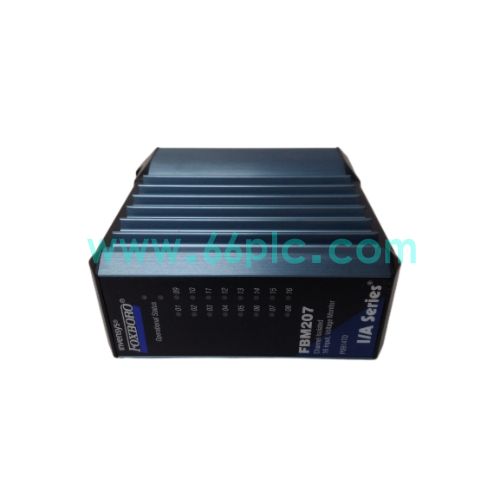

Foxboro FBM207 P0914TD Pulse Input Module

The Foxboro FBM207 with part number P0914TD is a pulse input module for Foxboro I/A‑Series DCS systems. It is used to collect pulse frequency signals from field pulse transmitters, flow meters and speed sensors. It converts pulse signals into digital data for flow totalization, speed calculation and process‑parameter statistics inside the DCS controller.

This rack‑mount plug‑in module supports multi‑channel pulse signal acquisition with channel‑by‑channel isolation for anti‑interference performance. Front‑panel LED indicators display channel status and module fault information for convenient on‑site inspection. It communicates with DCS main controller via FBM backplane bus. As obsolete aftermarket spare parts, it is widely used for DCS maintenance and retrofitting in petrochemical, chemical and power‑plant sites.

Main Specifications

• Brand: Foxboro(Invensys); Model: FBM207; Part No:P0914TD; Type: Pulse Input Module
• Compatible System: Foxboro I/A‑Series DCS rack, FBM backplane bus, field pulse flow meters and pulse‑type sensors
• Core Functions: Field pulse signal acquisition, frequency counting, pulse totalization, channel galvanic isolation, backplane data transmission, loop fault detection, status LED indication
• Port Resource: FBM backplane connector, field pulse‑input terminal block, per‑channel status LED indicators
• Supported Feature: Multi‑channel pulse input, high‑frequency signal processing, noise filtering, open‑loop fault monitoring
• Hardware Feature: Standard FBM rack plug‑in module, 24VDC system power supply, industrial‑grade design
• Supply Status: Aftermarket spare part for legacy process‑industry DCS‑system maintenance and component replacement

Core Functions

• Capture pulse and frequency signals output from field flow meters, speed encoders and pulse transmitters.
• Complete pulse counting and frequency calculation, realize flow accumulation and rotational‑speed measurement functions.
• Each channel adopts galvanic isolation to suppress field‑site interference and protect internal DCS circuits.
• Transmit counted pulse data and frequency values to I/A‑Series DCS controller through FBM backplane bus.
• Detect field‑loop open‑circuit and abnormal signal states, upload fault alarm information to DCS workstation.
• Provide accurate measurement data for flow statistics, energy metering and rotating‑equipment speed monitoring.

Application Scenarios

• Pulse‑signal acquisition for petrochemical, chemical and power‑plant sites adopting Foxboro I/A‑Series DCS platform.
• Fault pulse‑input‑module replacement and routine maintenance of existing Foxboro DCS control cabinets.
• Pulse‑input hardware upgrading and technical transformation for aging legacy distributed control systems.
• Emergency swap for input‑module failure of continuously‑running key process‑production equipment.
• Spare‑parts stocking for plant instrument‑maintenance teams supporting Foxboro I/A‑Series DCS automation products.
• Aftermarket spare supply for DCS‑system overhaul and technical‑service projects of process‑industrial facilities.

FAQ

• Q: Can FBM207 P0914TD work independently without Foxboro DCS rack and controller?
  A: It must be installed in FBM rack and cooperate with DCS main controller, cannot complete pulse‑signal acquisition as standalone hardware.
• Q: What are typical module failure symptoms?
  A: Pulse counting loss, inaccurate accumulated value, no frequency signal input, fault LED alarm, inconsistent DCS reading with field instrument.

• Q: How to complete commissioning and diagnosis?
  A: Inspect rack power supply and field wiring; input standard pulse signal, check counting and frequency value on DCS workstation.
