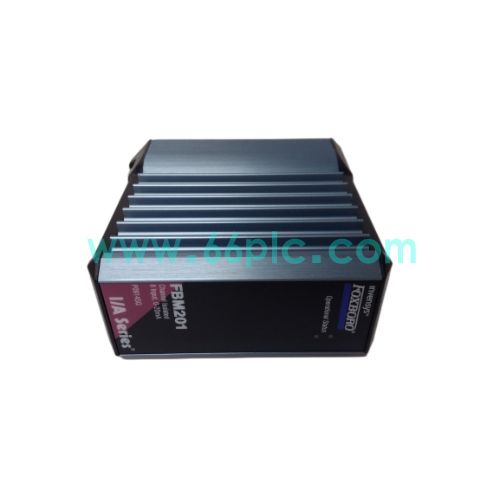

Foxboro FBM201 P0914SQ Contact Input Module

The Foxboro FBM201 with part number P0914SQ is a contact‑type discrete input module for I/A Series DCS systems. It collects dry‑contact on‑off signals from field switches, relays and interlock devices, converting field contact status into digital data for the DCS controller. It is a fundamental field‑signal acquisition component for Foxboro distributed control systems.

This rack‑mount module provides channel‑level isolation to suppress field‑side electrical interference. Front‑panel LED indicators reflect each channel on‑off status for convenient on‑site inspection. It communicates with the DCS main controller via FBM backplane bus. Widely used as aftermarket spare parts for petrochemical, power‑plant and chemical‑plant DCS maintenance and retrofit projects.

Main Specifications

• Brand: Foxboro (Invensys); Model: FBM201; Part No: P0914SQ; Type: Discrete Contact Input Module
• Compatible System: Foxboro I/A Series DCS rack, FBM backplane bus, field dry‑contact switches and interlock relays
• Core Functions: Dry‑contact signal acquisition, contact‑state detection, channel galvanic isolation, backplane data transmission, channel status LED indication
• Port Resource: FBM backplane connector, field contact‑input terminal block, per‑channel status LED indicators
• Supported Feature: Multi‑channel contact input, electrical isolation, noise suppression, open‑loop signal monitoring
• Hardware Feature: Standard FBM rack plug‑in module, 24VDC system power supply, industrial‑grade design
• Supply Status: Aftermarket spare part for legacy process‑industry DCS‑system maintenance and component replacement

Core Functions

• Acquire dry‑contact switch status signals from field limit switches, interlock relays and auxiliary‑equipment contacts.
• Convert field contact on‑off states into digital signals and transmit them to the I/A Series main DCS controller via backplane bus.
• Each input channel adopts isolation design to block common‑mode interference and prevent field‑side noise from affecting DCS internal circuits.
• Front‑panel LED lights directly show real‑time channel status, helping engineers quickly judge field‑contact working conditions.
• Detect abnormal signal states of field loops and feed back fault information to DCS system for alarm processing.
• Realize reliable collection of interlock, status feedback and equipment‑position signals for process‑production field devices.

Application Scenarios

• Field discrete‑signal acquisition for petrochemical, chemical and power‑plant sites adopting Foxboro I/A Series DCS platform.
• Fault input‑module replacement and routine maintenance for existing Foxboro DCS control cabinets.
• Discrete‑input hardware upgrading and technical transformation for aging legacy distributed control systems.
• Emergency swap for input‑module failure of continuously‑running key process‑production equipment.
• Spare‑parts stocking for plant instrument‑maintenance teams supporting Foxboro I/A Series DCS products.
• Aftermarket spare supply for DCS‑system overhaul and technical‑service projects of process‑industrial facilities.

FAQ

• Q: Can FBM201 P0914SQ work independently without I/A Series DCS rack and controller?
  A: It must be installed in Foxboro FBM rack and communicate with DCS main controller, cannot complete signal acquisition as standalone hardware.
• Q: What are typical module failure symptoms?
  A: Channel signal cannot be collected, status display abnormal, LED no response, partial channel signal loss, inconsistent field‑DCS status.

• Q: How to complete commissioning and diagnosis?
  A: Inspect rack power supply and field‑contact wiring; trigger field‑switch action, observe LED status and verify signal feedback on DCS workstation.
