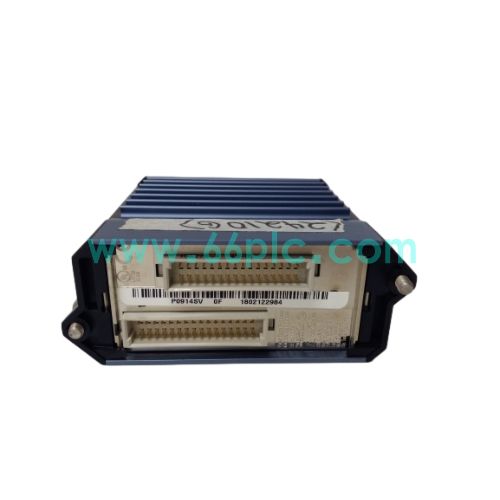

FOXBORO FBM203 P0914SV 8‑Channel Isolated RTD Input Module

The FOXBORO FBM203 P0914SV is a fieldbus module for Foxboro I/A‑Series DCS distributed control systems. It acquires resistance signals from platinum RTD temperature sensors, converts resistance values into accurate digital temperature data, and transmits process data to DCS controllers for temperature monitoring, alarming and closed‑loop regulation in process‑industry plants.

This rack‑mount FBM unit provides galvanic isolation for each input channel to suppress ground‑loop interference and industrial electromagnetic noise. Original production has been discontinued. It is widely supplied as aftermarket spare parts for chemical, power, oil‑gas and pulp‑paper plant DCS cabinet maintenance and system retrofitting projects.

Main Specifications

1. Brand:FOXBORO; Model:FBM203, Part No:P0914SV; Type:8‑Channel Galvanic‑Isolated RTD Input Module
2. Applicable Platform:Foxboro I/A‑Series DCS system, FBM fieldbus module rack chassis
3. Sensor Support:Compatible with 2‑wire and 3‑wire platinum RTD sensors such as Pt100, Pt200
4. Resistance Input Range:0‑320 ohms standard measurement range for RTD signal acquisition
5. Isolation Performance:Channel‑to‑channel and channel‑to‑ground galvanic isolation for noise suppression
6. Diagnostic Function:Field sensor open‑circuit detection, module hardware self‑diagnosis and status indication
7. Supply Status:Original production discontinued, available as tested surplus or refurbished spare parts

Core Functions

1. Collect real‑time resistance signals from field RTD temperature sensors across eight independent input channels.
2. Complete high‑precision resistance‑to‑temperature conversion and send digital process values to the DCS controller via fieldbus.
3. Eliminate ground‑loop interference through per‑channel galvanic isolation to guarantee stable temperature measurement data.
4. Detect open‑circuit faults of field RTD sensors and internal module hardware abnormalities, and upload diagnostic alarm information.
5. Support configurable rate‑of‑change limit parameters for temperature jump alarm protection of process equipment.
6. Serve as critical temperature acquisition hardware for Foxboro I/A‑Series distributed control racks.

Application Scenarios

1. Oil‑gas refineries, chemical plants, power‑generation facilities, pulp‑paper mills and other continuous‑process industrial sites.
2. Spare RTD input module replacement and routine maintenance of existing Foxboro I/A‑Series DCS control cabinets.
3. Technical renovation and temperature‑measurement accuracy upgrade of aging distributed control automation systems.
4. On‑site troubleshooting and replacement of faulty fieldbus input modules on continuous process production units.
5. Spare‑parts stocking for system integrators and DCS process‑control professional maintenance contractors.
6. Global aftermarket spare supply for technicians maintaining obsolete Foxboro I/A‑Series legacy DCS hardware.

FAQ

1. Q:Which DCS system does FBM203 P0914SV apply to?
   A:It is designed exclusively for Foxboro I/A‑Series DCS platform and cannot be used for other brand control systems.
2. Q:Does FBM203‑P0914SV support 4‑wire RTD sensors?
   A:This version mainly supports 2‑wire and 3‑wire RTD; 4‑wire RTD function is available on FBM203d variant.

3. Q:Is this RTD input module still in original production?
   A:Foxboro original manufacturing has been discontinued, only tested surplus and refurbished spare units are available.
