Product Description

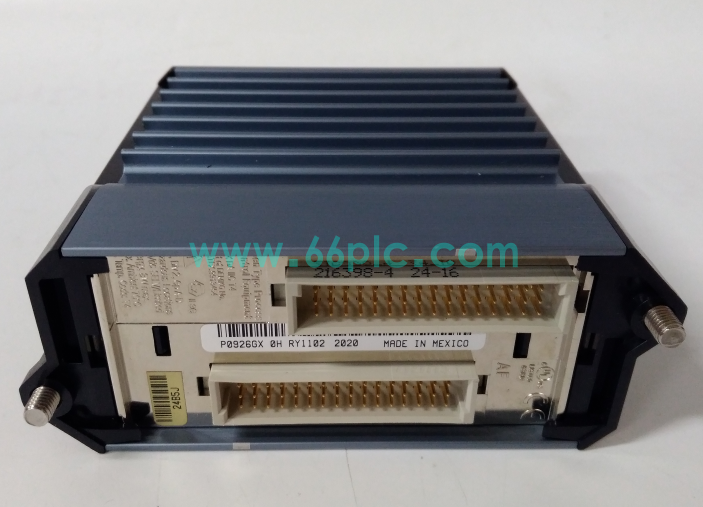

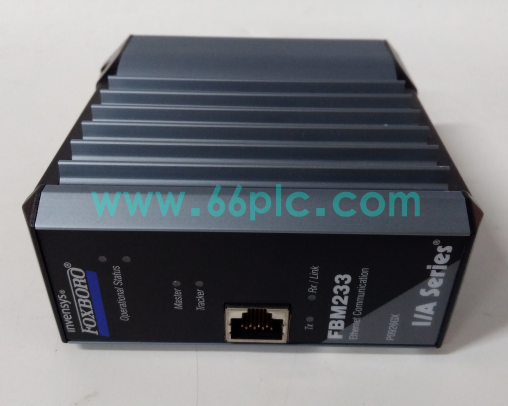

The Foxboro FBM233 P0926GX is a high-reliability redundant FDSI Ethernet communication module upgraded for Foxboro I/A Series DCS systems. Serving as a fault-tolerant network gateway between the DCS host and field intelligent devices, it supports adaptive 10/100Mbps Ethernet transmission, providing stable data aggregation, protocol parsing and bidirectional command interaction. This module is specially designed for high-availability industrial control scenarios to eliminate single-point communication failures.

Adopting dual redundant hot-backup support and industrial aluminum rugged structure, the module allows online hot replacement without interrupting field I/O signals. It supports multi-device access and massive DCI data links, equipped with comprehensive network diagnosis and anti-interference filtering functions. With ultra-wide temperature adaptability and G3 harsh environment resistance, it ensures 24/7 fault-free continuous network operation for critical process industrial control systems.

Main Specifications

1. Full Model: FBM233 (P0926GX); Product Type: I/A Series redundant FDSI Ethernet field device integration communication module
2. Applicable System: Foxboro I/A Series DCS platform, high-availability process automation and field device networking systems
3. Core Function: Redundant Ethernet data transmission, multi-device signal integration, protocol conversion and network fault tolerance protection
4. Network Performance: 10/100Mbps adaptive Ethernet rate, low-latency and high-stability industrial data transmission
5. Redundancy Feature: Supports dual-module hot backup configuration with seamless automatic fault switching
6. Hot Replacement: Allows online module replacement without disrupting field signal and system operation
7. Load Capacity: Supports large-scale field device access and high-density DCI data link transmission tasks
8. Protocol Compatibility: Matches mainstream industrial Ethernet protocols for versatile field device docking
9. Environmental Grade: ISA G3 harsh environment adaptation, -40°C to +70°C ultra-wide temperature working range
10. Operational Reliability: Reinforced aluminum casing, anti-vibration, anti-corrosion and strong electromagnetic interference resistance

Core Functions

1. Acts as the high-availability redundant Ethernet communication core for Foxboro I/A Series DCS systems.
2. Builds fault-tolerant network links between DCS host and distributed field intelligent equipment.
3. Aggregates multi-point field operating data and uploads standardized data to the upper control system.
4. Receives and distributes host control commands to realize synchronous field equipment linkage control.
5. Implements dual redundant hot backup mechanism to completely eliminate network single-point failure risks.
6. Supports non-stop online replacement to greatly reduce system maintenance downtime.
7. Integrates intelligent network diagnosis and data filtering to ensure accurate and stable signal transmission.
8. Adopts rugged industrial structure to adapt to long-term harsh on-site operating conditions.
9. Optimizes distributed network architecture to improve overall system communication stability and availability.
10. Guarantees continuous and reliable network data interaction for critical industrial process control systems.

Application Scenarios

1. High-availability Foxboro I/A Series DCS network construction and redundant upgrading projects
2. Petrochemical and chemical critical process non-stop production communication scenarios
3. Thermal power and energy industry key unit high-reliability network guarantee systems
4. Pharmaceutical and fine chemical process control fault-tolerant network linkage projects
5. Old FBM232 non-redundant module replacement and system reliability upgrading scenarios
6. Harsh G3-grade industrial environment long-term stable network operation projects
7. Large-scale distributed intelligent device centralized monitoring and data transmission systems
8. 24-hour uninterrupted operation industrial core control network fault-tolerant scenarios
9. Industrial intelligent transformation high-availability communication network architecture construction
10. Key process industries requiring zero communication interruption and high safety standards
