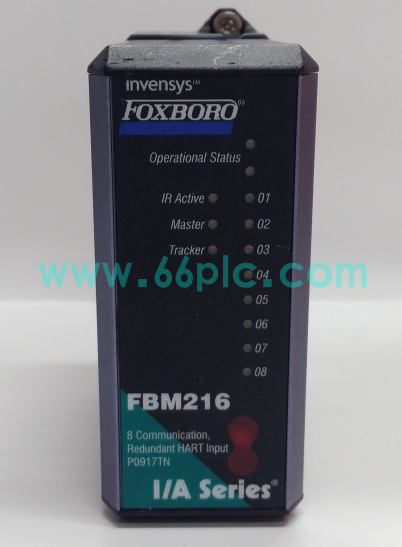

Foxboro FBM216 P0917TN 8-Channel HART Redundant Analog Input Module

FBM216 P0917TN is a fieldbus module developed by Foxboro (Schneider Electric Invensys) exclusively for the I/A Series distributed control system. It features eight group-isolated analog input channels that support both standard 4–20mA transmitters and HART 5/6/7 intelligent field instruments, integrating independent FSK modems for bidirectional digital communication with field sensors. This unit supports dual-module hot redundant configuration to guarantee uninterrupted process data collection for critical industrial loops.

The module adopts sigma-delta high-precision conversion technology with 15-bit resolution and galvanic isolation between field loops and internal logic circuits to suppress industrial electromagnetic interference. Matched with dedicated terminal assembly blocks for on-site wiring, it is a core maintenance spare for obsolete petrochemical, power plant and chemical plant I/A Series DCS racks worldwide.

Main Specifications

• Brand: Foxboro (Schneider Electric Invensys); Model: FBM216 P0917TN; Series: I/A Series DCS Field Module
• Channel Configuration: 8 group-isolated analog input channels, 4–20mA DC signal range
• HART Compatibility: HART 5/6/7 protocol, 1200bps baud rate, bidirectional digital communication per channel
• Measurement Performance: ±0.075% full-scale accuracy, 15-bit resolution, 100ms global ｕｐｄａｔｅ cycle
• Isolation Rating: 2000VAC channel-to-chassis isolation, anti-surge circuit for field loop protection
• Redundancy Mode: FBM-level dual-module hot standby redundancy, automatic master/tracker switching without process interruption
• Power Supply: 24VDC backplane power from I/A rack, total power consumption ≤12W
• Environmental Rating: Operating -20℃ ~ +60℃, Class G3 harsh industrial environment certified
• Diagnostic Indicators: Front LED lights for power, fieldbus link, channel fault and HART communication status
• Lifecycle Status: Discontinued legacy hardware, supplied as overhaul spare parts for existing DCS systems

Core Functions

• Collect real-time analog measurement signals from pressure, temperature, flow and level transmitters via 4–20mA current loops for DCS closed-loop process regulation.
• Execute bidirectional HART communication: read instrument calibration data, fault alarms and diagnostic information; remotely set sensor ranges and alarm thresholds via DCS operation station.
• Dual-module redundant architecture ensures seamless data acquisition if one module fails, eliminating data loss and unplanned shutdown of critical production processes.
• Built-in short-circuit, open-loop and overvoltage detection circuits, with front panel LED fault indicators to quickly locate damaged field wiring or defective transmitters.
• Transmit all channel measurement values and HART device data to the I/A Series controller via the fieldbus backplane for centralized monitoring and logic calculation.
• Modular plug-in rack design allows single module replacement without powering off the entire DCS cabinet, greatly shortening on-site maintenance downtime.

Application Scenarios

• Spare analog input module replacement for Foxboro I/A Series DCS control racks in oil refineries and petrochemical processing plants.
• HART signal acquisition spare parts for boiler, turbine and water treatment process control systems in thermal power generating stations.
• Maintenance backup stock for chemical factory distillation, reaction kettle and pipeline flow monitoring DCS cabinets.
• Retrofit overhaul components for vintage pharmaceutical, paper and metallurgical production lines equipped with Foxboro distributed control platforms.
• Matching signal collection module for pressure/temperature transmitters and upper SCADA monitoring linkage systems.
• Global aftermarket spare inventory for automation maintenance workshops servicing obsolete Foxboro I/A Series DCS hardware.
