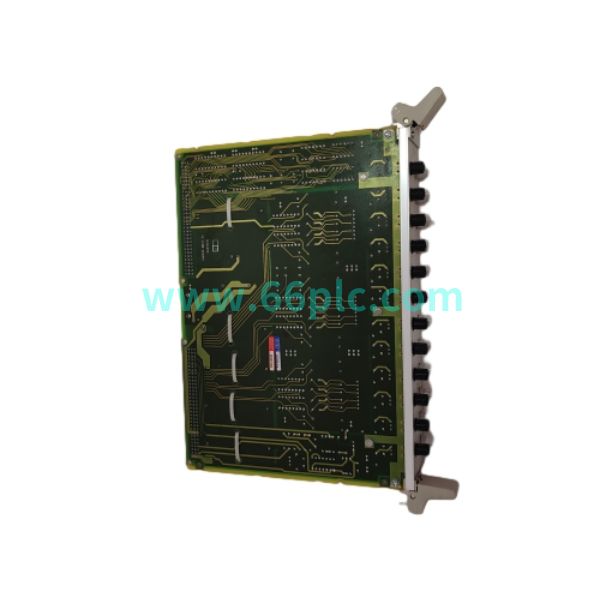

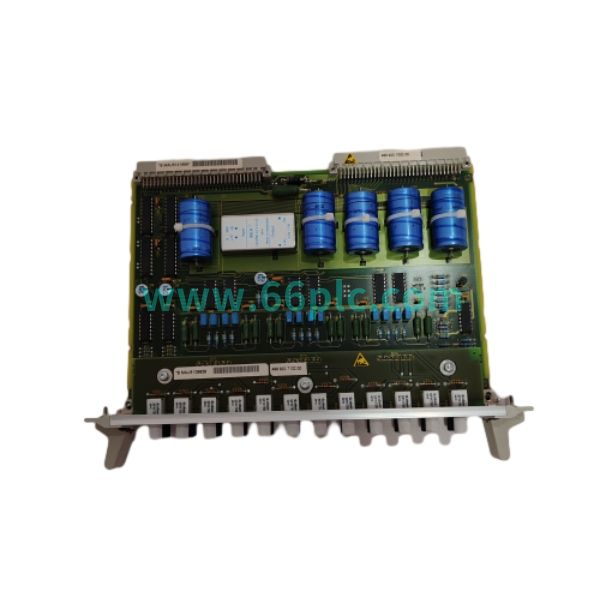

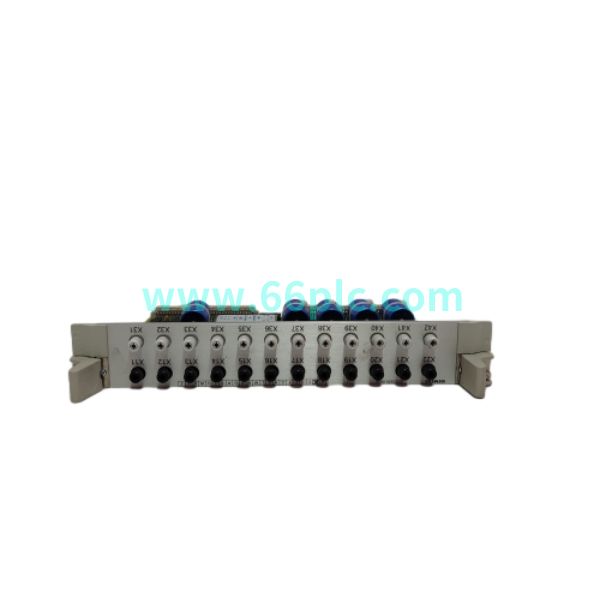

SIEMENS 6DD2920-0BB0为SIMADYN D平台AUL2触发监控逻辑板，属于TM15成套单元的组成部分，配合AL0、AH0、AM0板卡协同工作。该模块负责晶闸管整流桥脉冲时序分配、触发逻辑管理，实时采集功率单元反馈信号，执行脉冲封锁与跳闸保护逻辑。

SIEMENS 6DD2920-0BB0 is the AUL2 trigger monitoring logic board of SIMADYN D platform, part of TM15 assembly, cooperating with AL0, AH0 and AM0 boards. It handles thyristor bridge pulse timing distribution and trigger logic management, collects power unit feedback signals and executes pulse blocking and trip protection.

SIMADYN D产品线早已停产，6DD2920-0BB0是大功率直流传动、冶金轧机主传动、汽轮调速励磁装置的刚需备件，板卡自带硬件快速保护回路，在脉冲丢失、缺相、短路故障时可快速封锁输出，规避功率器件烧毁风险。

SIMADYN D platform is obsolete. 6DD2920-0BB0 is critical spare for high-power DC drives, rolling mill main drives and turbine excitation & governor systems. It integrates hardware fast protection circuit to block pulses rapidly on pulse loss, phase loss and short-circuit faults to protect power semiconductors.

Main Specifications 技术参数

• 1. Product Series / 产品系列：SIEMENS SIMADYN D TM15 AUL2 Logic Submodule

• 2. Part Numbers / 型号编码：6DD2920-0BB0 (Trigger Monitoring Logic Board)

• 3. Function Type / 类型：晶闸管触发时序与保护逻辑板

• 4. Key Features / 特性：Thyristor pulse sequence control, bridge monitoring, fast pulse blocking, TM15 matched

• 5. Mounting / 安装：SIMADYN D机架背板插槽安装

Core Functions 核心功能

• 1. 接收主控板给定脉冲指令，按相序输出同步触发时序，驱动晶闸管桥臂。
  Receive pulse setpoints from main CPU and output phase-synchronized firing sequence for thyristor arms.

• 2. 持续监测整流桥反馈信号，识别脉冲丢失、缺相、导通异常等故障。
  Continuously monitor bridge feedback to detect pulse loss, phase failure and abnormal conduction.

• 3. 独立硬件通路实现脉冲快速封锁，故障时优先切断触发信号，保护功率器件。
  Independent hardware path for fast pulse block to cut firing signals and protect power devices.

• 4. 通过背板总线和TM15其他子板交互状态信息，同步整套单元控制时序。
  Exchange status data with other TM15 sub-boards via backplane bus for synchronized timing.

• 5. 故障代码上传至SIMADYN D主控，方便上位软件诊断、定位传动故障点。
  Send fault codes to SIMADYN D CPU for software diagnosis and drive fault location.

Application Scenarios 应用场景

• 1. 钢铁冷热轧机组、平整机、卷取机大功率直流主传动系统备件更换。
  Spare replacement for hot rolling, cold rolling and coiler high-power DC main drives.

• 2. 电厂汽轮调速系统、同步发电机励磁整流柜SIMADYN D控制单元。
  SIMADYN D control for turbine governor and generator excitation rectifier cabinets.

• 3. 有色金属轧制、线缆牵引、造纸大功率传动存量设备检修维保。
  Maintenance of non-ferrous rolling, wire drawing and paper mill large drive installations.

• 4. TM15整套控制单元备件备货、故障板替换、传动系统年度检修项目。
  Spare stock for full TM15 unit, faulty board swap and annual drive overhaul.

• 5. 海外冶金电力老项目备件交付，配套SIMADYN D调试、故障排查服务。
  Spare supply for overseas steel and power plants with SIMADYN D commissioning support.
