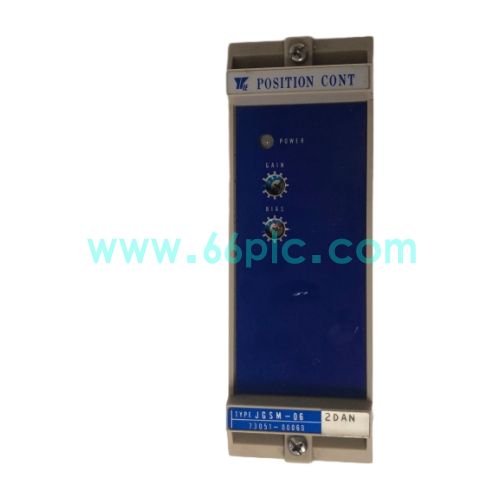

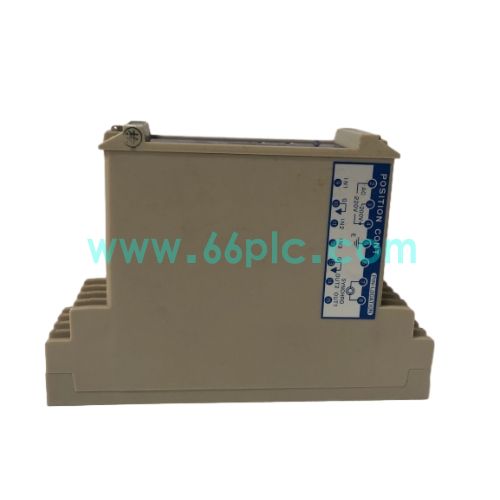

YASKAWA JGSM-06 Position Control Module

YASKAWA JGSM-06 is a rack mount position control module developed by Yaskawa for old-generation motion control systems. It receives position command signals and outputs drive pulses to control servo motors, realizing single-axis positioning and speed regulation for machine tools and automation equipment.

This module supports pulse command output, with built-in position deviation counter and adjustable acceleration / deceleration time. It has front panel indicator lights and DIP switch settings, adopts slot installation design. Widely used as spare parts for CNC lathes, automatic cutting machines and Yaskawa old motion control cabinets.

Main Specifications

1. Brand: YASKAWA; Model: JGSM-06; Type: Single Axis Position Control Module
2. Compatible System: Yaskawa old series motion control rack, matching servo drive unit
3. Core Functions: Position command processing, pulse signal output, position deviation monitoring, acceleration/deceleration control
4. Control Axis: 1 axis; Command type: pulse train; Setting method: DIP switch on board
5. Power Supply: 24VDC; Operating Temperature: 0℃ ~ +55℃; Rack slot installation
6. Feature: Status LED indicators, position deviation alarm, built-in parameter memory
7. Supply Status: Original YASKAWA spare position module for motion control cabinet maintenance

Core Functions

1. Receive host position setpoint signal, convert digital command into pulse signal to drive servo amplifier.
2. Built-in acceleration and deceleration algorithm to avoid sudden speed change and mechanical impact during positioning.
3. Real-time monitoring of position deviation, trigger alarm output when deviation exceeds preset threshold.
4. DIP switch on the board can set pulse mode, resolution and working logic without software programming.
5. Front LED indicators display power, operation and alarm status for quick fault checking on site.
6. Standard rack slot structure, easy disassembly and replacement in the original Yaskawa control cabinet.

Application Scenarios

1. Single-axis positioning control unit for old CNC machine tools, forming machines and automatic processing equipment.
2. Fault module replacement and routine maintenance of existing Yaskawa JGSM series motion control racks.
3. Automation equipment renovation and upgrade for machinery manufacturing, packaging and material handling lines.
4. Emergency replacement for module failure to restore servo motor positioning control and pulse command output.
5. Spare parts stocking for maintenance teams operating Yaskawa old generation position control systems.
6. Aftermarket spare supply for CNC control cabinet overhaul and retrofitting of old motion equipment.

FAQ

1. Q: Can YASKAWA JGSM-06 control two axes at the same time?
   A: It is single-axis position control module, only supports one servo axis control, cannot drive two axes simultaneously.
2. Q: What are typical module failure symptoms?
   A: No pulse output, position deviation alarm always on, LED no light, position drift, unable to receive command signal.
3. Q: How to complete commissioning and diagnosis?
   A: Check 24VDC power and pulse wiring, set DIP switch parameters, run single-axis jog test and verify position feedback.
