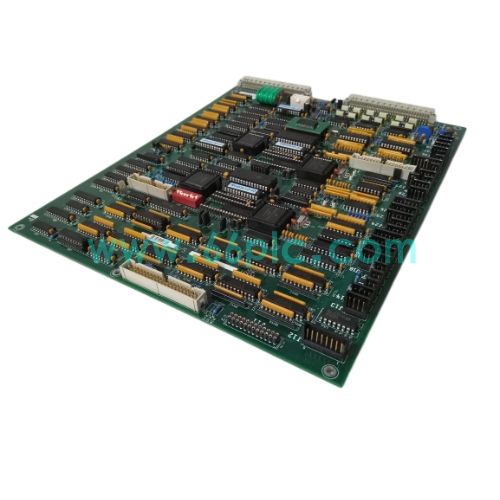

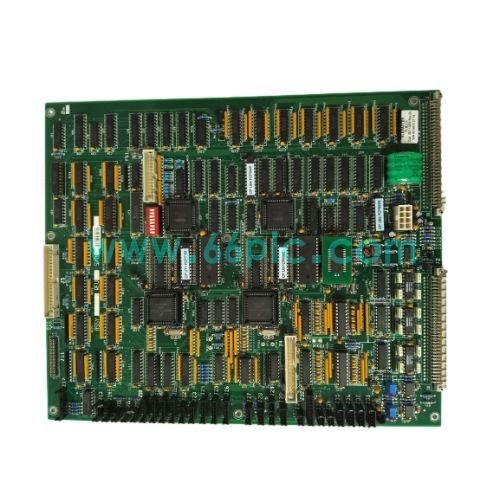

ELEMASTER N.104-19 N.143-18 IB3110050 Distributed I/O Module

ELEMASTER N.104-19 N.143-18 IB3110050 is a distributed field I/O module manufactured by Italian Elemaster. It collects multi-channel analog and digital signals from field sensors and communicates with the upper control system via Modbus RTU protocol.

This module is equipped with built-in surge and short-circuit protection circuits. The front panel LED array indicates power, channel status and fault alarms. As aftermarket spare parts, it is widely used for maintenance, replacement and retrofit of railway and factory automation systems.

Main Specifications

1. Brand: ELEMASTER; Model: N.104-19 N.143-18 IB3110050; Type: Distributed Field I/O Module
2. Compatible System: Industrial automation control system, PLC host, field sensors and actuators
3. Core Functions: Field signal acquisition, I/O signal conversion, Modbus RTU communication, hardware self-diagnosis, fault alarm output
4. Port Resource: Multi-channel I/O terminals, RS485 Modbus port, power supply terminals, front panel status LEDs
5. Supported Feature: Wide operating temperature, short-circuit protection, surge protection, industrial EMC protection
6. Hardware Feature: Compact industrial module, passive cooling, cabinet or field mounting
7. Supply Status: Aftermarket spare part for industrial automation system maintenance and component replacement

Core Functions

1. Collect digital and analog signals from field sensors, convert physical signals into digital data and upload to PLC through RS485 Modbus bus.
2. Receive control instructions from upper controller and output switching signals to drive relays, solenoid valves and local status indicator lights.
3. Built-in short-circuit and surge protection circuits to avoid module damage caused by field wiring faults and electromagnetic interference.
4. Real-time hardware self-check monitors module working status and uploads diagnostic and alarm information to the control system continuously.
5. Front panel LED lights display power supply, channel on/off state and fault alarm for convenient on-site inspection and troubleshooting.
6. Distributed I/O architecture reduces field wiring workload and cost, ideal for large-scale scattered automation control applications.

Application Scenarios

1. Field signal acquisition unit for ELEMASTER automation systems used in manufacturing, railway and packaging industries.
2. Fault I/O module replacement and routine maintenance of existing distributed automation cabinets.
3. Automation hardware upgrading and technical transformation for aging legacy factory control systems.
4. Emergency swap for module failure of continuous production line and railway auxiliary control facilities.
5. Spare-parts stocking for electrical maintenance teams supporting ELEMASTER automation series products.
6. Aftermarket spare supply for control cabinet overhaul and technical-service projects of process industrial facilities.

FAQ

1. Q: Can ELEMASTER N.104-19 N.143-18 IB3110050 work independently without upper PLC and field sensors?
   A: It needs to connect with PLC and field sensors, cannot run as standalone hardware.
2. Q: What are typical module failure symptoms?
   A: Modbus communication interruption, partial channel signal loss, output failure, module fault LED lit.
3. Q: How to complete commissioning and diagnosis?
   A: Check module power supply and field wiring; use Modbus configuration tool to read register data and check fault logs.
