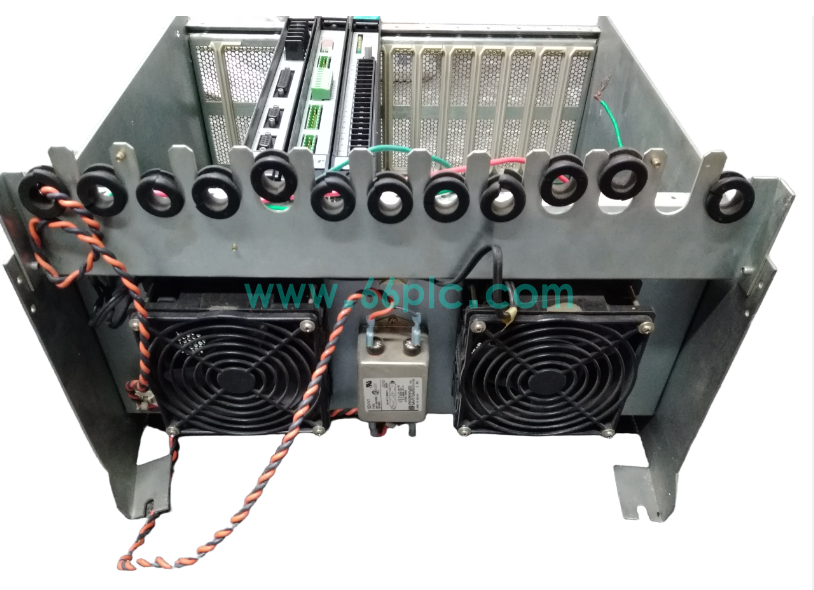

Reliance Electric 57C332A Remote I/O Adapter Module

The Reliance Electric 57C332A is a remote I/O slave adapter module for Reliance AutoMax PLC control systems. It serves as the slave interface on remote I/O racks, receiving commands from the main‑rack remote driver module and exchanging digital and analog signal data between field I/O modules and the main PLC controller. It extends distributed I/O capability for AutoMax automation platforms.

This rack‑mount slave module connects to remote I/O communication bus, equipped with hardware diagnostic LED indicators for link and channel status indication. It performs bus error detection and supports hot‑swap operation. Widely used as aftermarket spare hardware for manufacturing, metallurgy and process industries for legacy‑system maintenance, faulty part replacement and automation retrofitting projects.

Main Specifications

1. Brand: Reliance Electric; Model: 57C332A; Type: Remote I/O Slave Adapter Module
2. Compatible System: Reliance AutoMax PLC, remote I/O expansion racks, remote I/O master driver module
3. Core Function: Remote‑bus slave communication, I/O data forwarding between remote rack and main control rack, link fault detection
4. Port Resource: Remote I/O bus interface, remote‑rack backplane bus, status LED indicators
5. Supported Feature: Bus error diagnosis, hot‑swap, remote‑rack I/O data processing, link status monitoring
6. Hardware Feature: Industrial rack‑mount structure, 24VDC power supply, real‑time status indication, industrial anti‑interference design
7. Supply Status: Aftermarket spare part for legacy AutoMax automation system maintenance and component replacement

Core Functions

1. Work as remote bus slave station, communicate with main‑rack remote I/O driver module to realize bidirectional data transmission for distributed I/O racks.
2. Collect signal data from digital and analog I/O modules on local remote rack, upload valid field data to main PLC controller via remote bus.
3. Receive control output commands sent by main rack, distribute data to corresponding local I/O modules and drive on‑site field actuators.
4. Continuously monitor remote communication bus quality, detect link timeout and signal abnormality, and display fault status via onboard LED indicators.
5. Support hot‑swap replacement, maintenance personnel can ｒｅｐｌａｃｅ faulty adapter without shutting down remote rack, reducing production downtime risk.
6. Realize distributed layout of I/O hardware close to field devices, shorten field wiring distance and reduce cable construction workload for large‑scale production lines.

Application Scenarios

1. Distributed remote I/O expansion for production lines adopting Reliance AutoMax PLC automation control platform.
2. Fault remote‑I/O‑adapter‑module replacement and routine maintenance of existing AutoMax remote I/O rack cabinets.
3. Distributed I/O hardware upgrading and technical transformation for aging legacy industrial automation control systems.
4. Emergency swap for remote‑rack communication failure of continuously‑running process production equipment on‑site.
5. Spare‑parts stocking for factory maintenance teams and automation integrators supporting Reliance AutoMax legacy platforms.
6. Aftermarket spare supply for industrial modernization and technical‑service projects of AutoMax‑based automation facilities.

FAQ

1. Q: Can 57C332A operate independently without remote rack and master driver?
   A: It must be installed on AutoMax remote I/O rack and matched with remote I/O master driver module, cannot complete remote‑slave communication as standalone hardware.
2. Q: What are typical module failure symptoms?
   A: Entire remote rack offline, local I/O signal cannot be uploaded, bus link alarm, no response to control commands issued by main PLC rack.

3. Q: How to complete commissioning and diagnosis?
   A: Inspect remote bus cable and 24VDC power supply; verify remote station address setting, observe LED status indicators and read system diagnostic information via AutoMax configuration software.
