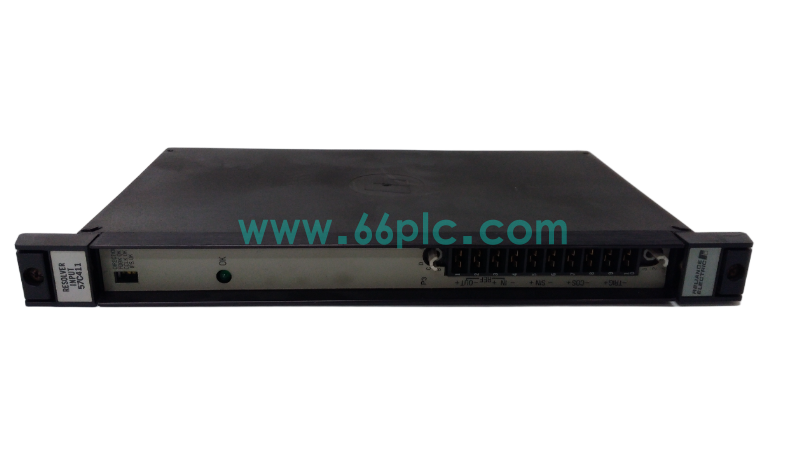

Reliance Electric 57C411 Digital Input Module

The Reliance Electric 57C411 is a discrete digital input module matching Reliance AutoMax PLC rack‑mount control systems. It collects field discrete signals from limit switches, proximity sensors and auxiliary contacts, converts physical switch status into digital data and transmits data to the main CPU, serving as the front‑end signal acquisition unit for legacy industrial automation control systems.

This single‑slot plug‑in module adopts isolation design between field circuit and backplane bus to suppress on‑site electromagnetic interference. Equipped with channel LED status indicators and fault diagnosis capability, it exchanges data via AutoMax backplane bus. It is widely used as spare replacement hardware for manufacturing, metallurgy and process industries for old‑system overhaul, component swap and automation retrofitting projects.

Main Specifications

1. Brand: Reliance Electric; Model: 57C411; Type: Discrete Digital Input Module
2. Compatible System: Reliance AutoMax PLC rack‑based control system
3. Core Function: Field discrete switch signal acquisition, electrical isolation, data uploading to main processor
4. Signal Type: Isolated discrete digital input channels for sensor and switch signal access
5. Interface Resource: AutoMax backplane bus interface, field terminal block for signal wiring
6. Hardware Feature: Channel‑level isolation, LED status indication, fault diagnosis, industrial rack‑mount mechanical structure
7. Supply Status: Aftermarket spare part for legacy AutoMax automation system maintenance and component replacement

Core Functions

1. Capture real‑time on‑off status of field devices such as push‑buttons, limit switches, relay auxiliary contacts and proximity switches.
2. Provide electrical isolation between field wiring circuit and PLC internal backplane bus to mitigate electromagnetic interference impact.
3. Convert collected field status into digital data, send data to AutoMax CPU through backplane bus for logic calculation and program processing.
4. Display each channel working state via LED indicators, allowing technicians to quickly judge signal status on production site.
5. Detect channel abnormal conditions, upload fault diagnostic information to main controller for software alarm and status query.
6. Provide basic digital input hardware support for production‑line interlock, sequence control and safety logic judgment of automation systems.

Application Scenarios

1. Field discrete signal acquisition for production lines based on Reliance AutoMax PLC automation platform.
2. Fault digital‑input module replacement and routine maintenance of existing AutoMax control rack cabinets.
3. Hardware upgrade and technical transformation for aging legacy industrial control systems.
4. Emergency component swap for digital input channel failure of continuously‑running process production equipment.
5. Spare‑parts inventory for factory maintenance departments and automation system integrators supporting Reliance legacy platforms.
6. Aftermarket spare supply for industrial modernization and technical‑service projects of old AutoMax control systems.

FAQ

1. Q: Can 57C411 work without AutoMax backplane rack?
   A: It must be installed on Reliance AutoMax backplane rack, cannot complete signal acquisition as standalone hardware.
2. Q: What are typical module failure symptoms?
   A: Channel status not updated, LED no response, system channel fault alarm, failure to read field switch signal status.

3. Q: How to complete commissioning and diagnosis?
   A: Check field wiring and input power condition; configure channel parameters and read fault diagnostic data via AutoMax supporting configuration software.
