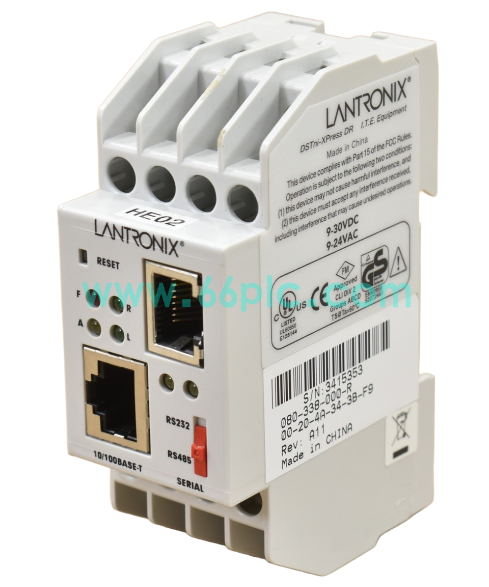

LANTRONIX 080‑338‑000‑R DSTni‑Xpress Embedded Device Server Module

The LANTRONIX 080‑338‑000‑R is a compact embedded DSTni‑Xpress device server module, designed to convert serial RS‑232 data to 10/100Mbps Ethernet TCP/IP network communication. It enables legacy serial‑based industrial instruments, PLC modules and field controllers to connect directly to LAN networks, delivering reliable serial‑to‑IP conversion for embedded automation equipment without major hardware redesign.

This lightweight embedded module supports multiple network protocols and firmware upgrade via TFTP. It accepts wide‑range power input and carries hazardous location certification for industrial cabinet deployment. Original production has been discontinued. It is widely supplied as aftermarket spare parts for legacy industrial communication hardware replacement and automation‑system retrofit projects.

Main Specifications

1. Brand:Lantronix; Model:080‑338‑000‑R; Type:DSTni‑Xpress Embedded Serial‑to‑Ethernet Device Server
2. Network Interface:10/100Base‑TX auto‑sensing Ethernet, RJ45 signal interface
3. Serial Interface:RS‑232 asynchronous serial port, baud rate range 300‑921600 bps
4. Power Input:9‑30 VDC / 9‑24 VAC wide‑range industrial power supply
5. Supported Protocols:TCP, UDP, IP, Telnet, DHCP, BOOTP, TFTP, HTTP, SNMP
6. Certification:Class I Div 2 hazardous‑location certification for industrial environments
7. Supply Status:Original production discontinued, available as tested surplus or refurbished spare parts

Core Functions

1. Perform bidirectional protocol conversion between RS‑232 serial data and Ethernet TCP/IP packets for legacy serial industrial devices.
2. Support virtual COM port operation, serial tunneling and socket server/client modes for diverse industrial network communication architectures.
3. Allow remote configuration, status monitoring and firmware updating over Ethernet via TFTP and built‑in web configuration pages.
4. Provide robust network protocol stack to realize seamless integration of serial field equipment into factory LAN and SCADA monitoring systems.
5. Designed for direct embedding inside host equipment PCB, reducing external gateway hardware requirements for serial‑enabled automation devices.
6. Serve as embedded serial‑IP conversion core component for legacy industrial controllers, instruments and remote monitoring hardware.

Application Scenarios

1. Factory automation, process plant instrumentation, remote equipment monitoring and other sites requiring serial‑to‑Ethernet embedded conversion.
2. Spare embedded device‑server module replacement and routine maintenance of existing legacy Lantronix‑equipped industrial equipment.
3. Technical renovation and network‑communication upgrade of aging serial‑based automation control systems.
4. On‑site troubleshooting and replacement of faulty communication modules on continuously running industrial field devices.
5. Spare‑parts stocking for system integrators and maintenance contractors supporting legacy embedded networking hardware platforms.
6. Global aftermarket spare supply for technical teams maintaining industrial equipment integrated with Lantronix DSTni‑Xpress series modules.

FAQ

1. Q:Can 080‑338‑000‑R work without host hardware?
   A:It is an embedded module, must be integrated into host equipment circuit and cannot run as standalone external gateway unit.
2. Q:What are typical failure symptoms?
   A:Loss of serial‑Ethernet data forwarding, disconnection of virtual COM connection and failure of remote configuration access may appear.

3. Q:How to complete firmware upgrade?
   A:Firmware ｕｐｄａｔｅ and parameter setup can be completed via TFTP tool or built‑in web configuration interface over Ethernet network.
