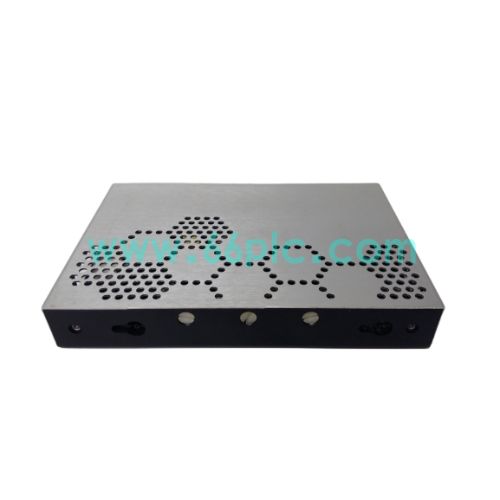

Bearing Engineers AVS‑1700‑ACX 800‑372‑7402 Vector Servo Drive

The Bearing Engineers AVS‑1700‑ACX 800‑372‑7402 is an advanced DSP‑based vector servo drive for industrial automation motion control systems. It delivers high‑performance torque, speed and position control for AC servo and induction motors, receiving step‑direction pulse commands from PLC or CNC controllers to drive single‑axis and multi‑axis mechanical equipment.

This compact panel‑mount drive supports sine‑wave commutation and closed‑loop vector algorithm, achieving smooth low‑speed operation without torque ripple. Original production has been discontinued. It is widely stocked as aftermarket spare parts for packaging machinery, material handling and automated production‑line control cabinet maintenance and retrofit projects.

Main Specifications

1. Brand:Bearing Engineers; Model:AVS‑1700‑ACX, Part No:800‑372‑7402; Type:DSP Vector Servo Drive
2. Power Supply:24‑75 VDC power input for industrial motion‑control applications
3. Control Mode:Torque, speed and position closed‑loop vector control with sine‑wave commutation
4. Command Interface:Step & direction pulse input for connection with PLC and CNC host controllers
5. Feedback:Works with encoder feedback to realize high‑precision closed‑loop position positioning
6. Installation:Panel mounting design for installation inside industrial automation control cabinets
7. Supply Status:Original production discontinued, available as tested surplus or refurbished spare parts

Core Functions

1. Execute high‑performance vector algorithm to drive AC servo and induction motors for precise motion control.
2. Receive step‑direction pulse signals from upper‑level PLC or CNC to complete position positioning tasks.
3. Maintain smooth torque output at low speed and eliminate motor jitter and cogging‑tooth‑groove effects.
4. Process encoder feedback signals and realize real‑time closed‑loop correction of speed and position errors.
5. Provide over‑current, over‑voltage and over‑temperature protection to avoid damage to drive and motor hardware.
6. Act as the core power drive unit for single‑axis and multi‑axis motion automation equipment.

Application Scenarios

1. Packaging equipment, material handling machinery, automated assembly lines and special‑purpose industrial automation machines.
2. Spare servo drive replacement and routine maintenance of existing Bearing Engineers AVS‑1700 series motion control cabinets.
3. Technical renovation and motion‑accuracy upgrade of aging automation equipment with legacy servo systems.
4. On‑site troubleshooting and replacement of faulty servo drives on continuous automated production units.
5. Spare‑parts stocking for system integrators and industrial motion‑control automation maintenance contractors.
6. Global aftermarket spare supply for technicians maintaining obsolete Bearing Engineers AVS series servo hardware.

FAQ

1. Q:What is the relationship between AVS‑1700‑ACX and 800‑372‑7402?
   A:AVS‑1700‑ACX is the servo drive model, 800‑372‑7402 represents the official Bearing Engineers part number.
2. Q:What signal input does this servo drive accept?
   A:It mainly uses step‑and‑direction pulse input, compatible with standard PLC and CNC pulse command signals.

3. Q:Is this vector servo drive still in original production?
   A:Bearing Engineers original manufacturing has been discontinued, only tested surplus and refurbished spare units are available.
