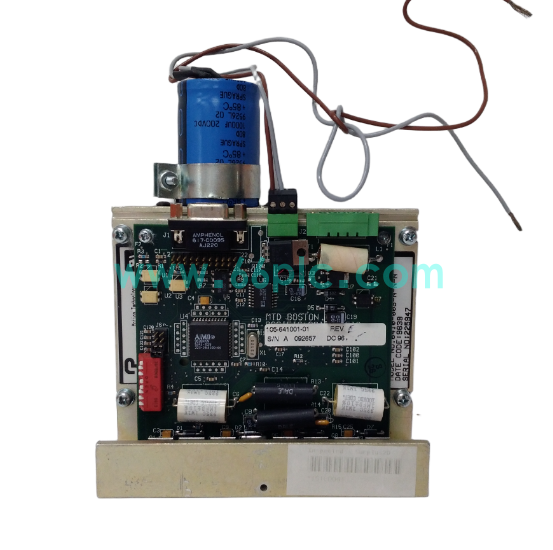

Pacific Scientific 6410‑009‑N‑N‑N 6410 Series Microstepping Stepper Drive

The Pacific Scientific 6410‑009‑N‑N‑N belongs to the 6410 series high‑performance microstepping stepper drive, designed to drive two‑phase stepper motors. It accepts step/direction control pulses and adopts patented digital electronic damping technology to suppress resonance and mid‑speed instability for smooth and precise positioning.

This compact board‑mount drive uses a bipolar chopper current regulation circuit and DIP‑switch configurable parameters. Original production has been discontinued. It is stocked as aftermarket spare parts for maintenance and retrofitting of CNC machines, packaging and automated assembly equipment.

Main Specifications

1. Brand: Pacific Scientific; Model:6410‑009‑N‑N‑N; Type:Microstepping Stepper Motor Drive
2. Power Supply:24‑75 VDC, output:7.1A peak /5A RMS, adjustable via DIP switches
3. Microstepping:High‑resolution microstep, support up to 25000 steps per revolution
4. Control Interface:Step & Direction pulse input, screw terminal and D‑sub connectors
5. Cooling:Passive heat sink, ambient operating temperature 0℃ ~ +50℃
6. Protection:Short‑circuit, overvoltage, undervoltage and idle current reduction function
7. Supply Status:Original production discontinued, available as tested surplus or refurbished spare parts

Core Functions

1. Convert step and direction pulses from PLC or motion controller into precise motor winding current.
2. Digital electronic damping eliminates resonance and vibration for quiet, smooth low‑speed operation.
3. Adjustable microstep resolution improves positioning accuracy and reduces mechanical noise.
4. Automatic idle current lowering decreases motor heating during stationary holding status.
5. Built‑in multi‑fault protection prevents drive and motor damage under abnormal working conditions.
6. Work as a precision motion control driver for automated machinery and multi‑axis positioning systems.

Application Scenarios

1. Precise positioning control for CNC equipment, packaging machines and automated assembly lines.
2. Spare drive replacement and routine maintenance of existing Pacific Scientific 6410 series systems.
3. Technical renovation and performance upgrade of old‑generation multi‑axis automation machinery.
4. On‑site troubleshooting and replacement of failed stepper drives on running production machines.
5. Spare‑parts stocking for system integrators and industrial automation maintenance contractors.
6. Global aftermarket spare supply for technicians maintaining obsolete Pacific Scientific motion hardware.

FAQ

1. Q:What kind of motor does 6410‑009‑N‑N‑N drive?
   A:It is designed for two‑phase bipolar stepper motors in industrial positioning equipment.
2. Q:What is the biggest advantage of this drive?
   A:Patented digital damping technology effectively suppresses typical stepper‑motor resonance noise.

3. Q:Is this stepper drive still in original production?
   A:Pacific Scientific has stopped manufacturing this model, only tested surplus and refurbished units are available.
