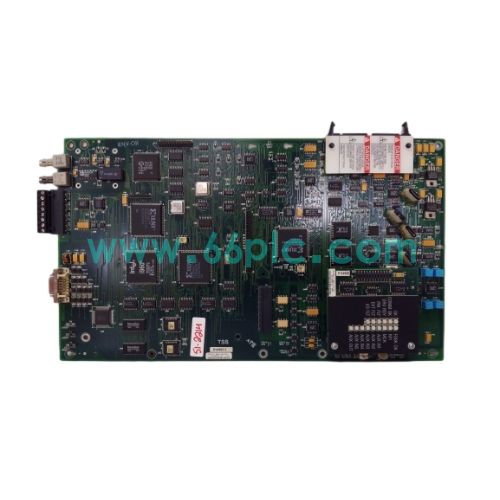

Reliance Electric 0‑60063‑1 PMI Regulator Board

The Reliance Electric 0‑60063‑1 is a PMI pulse modulated inverter regulator board for SA3100 series AC drives and AutoMax DPS distributed power systems. It executes high‑performance motor control algorithms for variable voltage and variable frequency speed regulation.

This legacy rack‑mount PCB adopts fiber‑optic communication and multiple I/O interfaces. Since the original production has been discontinued, it is widely supplied as aftermarket spare parts for repairing and upgrading old‑generation Reliance Electric drive cabinets in heavy industry.

Main Specifications

1. Brand: Reliance Electric; Model:0‑60063‑1, Type:PMI Regulator Board
2. Compatible Equipment: SA3100 AC power modules, AutoMax DPS drive system
3. Communication: Dual fiber optic ports for high‑speed link with UDC controller
4. Interfaces: PMI port, Flex I/O, resolver feedback and detachable terminal block
5. Weight:Approx 1.69 lbs, original manufacturer obsolete status
6. Cabinet Installation: Plug‑in mounting inside SA3100 drive rack
7. Operating Temperature:0℃ ~ +60℃, designed for heavy industrial environment
8. Function Orientation:AC variable frequency drive control and drive status monitoring

Core Functions

1. Run dedicated motor control algorithms and regulate output voltage and frequency dynamically.
2. Realize high‑speed optical fiber data exchange with AutoMax UDC control modules.
3. Collect resolver and I/O feedback signals to monitor drive operating conditions.
4. Complete real‑time closed‑loop speed and torque control for AC variable‑speed motors.
5. Detect drive abnormal states and generate fault alarms for maintenance diagnosis.
6. Coordinate with power inverter units to guarantee stable continuous drive operation.

Application Scenarios

1. Speed regulation control of conveyors, fans, pumps and machine tools with SA3100 drives.
2. Spare board replacement and troubleshooting for old Reliance Electric AutoMax DPS racks.
3. Retrofit and reliability renovation of legacy variable‑frequency drive control cabinets.
4. On‑site maintenance projects for metallurgy, paper‑making and textile production lines.
5. Spare‑parts stocking for automation integrators and industrial drive maintenance contractors.
6. Global aftermarket spare supply for technicians maintaining obsolete Reliance Electric drive hardware.

FAQ

1. Q: What system does 0‑60063‑1 match?
   A: It is designed exclusively for Reliance SA3100 AC drives and AutoMax DPS distributed power system.
2. Q: Is this board still produced by the original factory?
   A: The original production has been discontinued, available only as tested used or surplus spare parts.

3. Q: Can it work alone without SA3100 power module?
   A: No, it must cooperate with matched power inverter and UDC controller to implement complete drive control.
