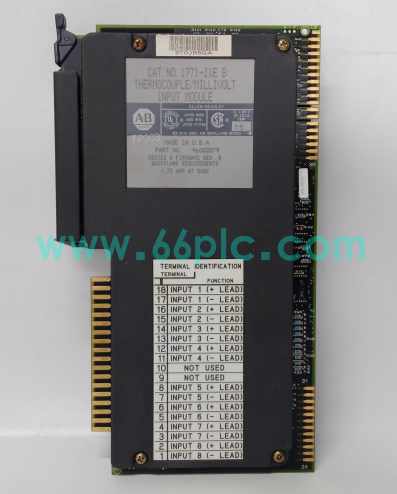

Allen‑Bradley 1771‑IXE Thermocouple / Millivolt Input Module

The Allen‑Bradley 1771‑IXE is a thermocouple and millivolt analog input module for Allen‑Bradley PLC‑5 1771 I/O rack system. It accepts low‑level millivolt signals from multiple thermocouple types and millivolt transmitters, converts them into digital data for PLC‑5 processor for temperature‑measurement and process‑monitoring tasks.

This 8‑channel differential input module supports multiple thermocouple scales and built‑in cold‑junction compensation. It provides open‑wire detection for field sensor loops, and features LED channel‑status indication. Widely used as aftermarket spare‑part for legacy industrial‑plant PLC‑5 control‑cabinet overhaul, sensor‑loop debugging and system retrofitting projects.

Main Specifications

• Brand: Allen‑Bradley (Rockwell Automation); Model:1771‑IXE; Type:Thermocouple / Millivolt Input Module
• Applicable System:Allen‑Bradley PLC‑5, 1771 series I/O rack; 8 differential analog input channels
• Input Type:Thermocouple (J,K,T,E,R,S,B,N) and millivolt range; built‑in cold‑junction compensation
• Function:Low‑level signal acquisition, thermocouple temperature conversion, open‑sensor wire‑break detection, digital‑data transfer to PLC‑5 processor
• Feature:Rack plug‑in installation, channel‑by‑channel LED status indication, noise‑filtering for low‑level signal
• Installation:Plug‑in into 1771 series I/O chassis, back‑plane bus communication with PLC‑5 CPU
• Operating Environment:0℃ ~ +60℃, 5%‑95% RH non‑condensing
• Certifications: CE compliant for legacy industrial‑process‑automation applications

Core Functions

• Receive low‑level millivolt signals from field thermocouple sensors and millivolt transmitters on 8 independent differential channels.
• Built‑in cold‑junction compensation eliminates temperature‑offset error for accurate thermocouple temperature calculation inside PLC‑5 system.
• Detect open‑circuit or broken‑wire fault on each sensor channel and feed fault‑status information back to PLC processor for alarm‑handling.
• Convert analog millivolt input into digital values and transmit data over 1771 back‑plane bus to PLC‑5 main‑controller for process‑logic execution.
• Channel‑level LED indicators help technicians quickly locate faulty input channels during commissioning and maintenance work.
• Optimized hardware filtering suppresses industrial‑site electromagnetic noise to improve measurement stability for weak thermocouple signals.

Application Scenarios

• Thermocouple‑input component for Allen‑Bradley PLC‑5 1771 I/O industrial‑control systems.
• Critical spare‑part for legacy chemical‑plant, heat‑treatment‑furnace and power‑plant PLC‑5 control‑cabinet maintenance.
• Retrofit and spare replacement for legacy 1771‑IXE analog‑input‑module PLC‑5 system upgrade projects.
• PLC‑5 rack overhaul, thermocouple‑sensor‑loop debugging and faulty analog‑input‑module replacement tasks.
• Spare‑parts inventory for industrial‑automation integrators and legacy‑PLC‑system‑maintenance contractors.

• Global aftermarket spare supply for technical teams maintaining Allen‑Bradley PLC‑5 legacy automation hardware.
