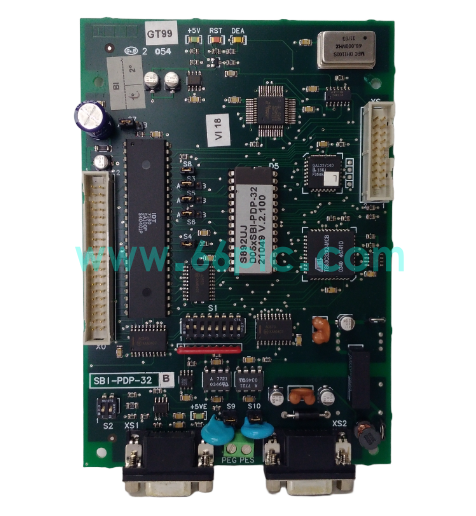

SBI‑PDP‑32 Profibus‑DP Communication Interface Card

The SBI‑PDP‑32 is a Profibus‑DP optional communication interface card for TPD32‑EV series DC drives. It establishes Profibus‑DP field‑bus connection between drive units and automation master‑station, realizing cyclic process‑data exchange, parameter access and diagnostic data transmission for converter and inverter equipment.

This plug‑in board supports configurable process‑data word length and comprehensive drive fault diagnosis. It works with PLC or DCS master systems for drive network control. It serves as key aftermarket spare for maintenance, overhaul and retrofitting of industrial DC‑drive cabinets in manufacturing and process‑industry sites.

Main Specifications

• Brand: Drive supplier for TPD32‑EV; Model:SBI‑PDP‑32; Type: Profibus‑DP Communication Interface Card
• Applicable Device: TPD32‑EV series DC converter / inverter drive units
• Interface: Profibus‑DP bus port, onboard DIP configuration switches, status diagnostic LED indicators
• Function: Profibus‑DP protocol processing, cyclic process‑data exchange, drive parameter read‑write, fault diagnostic reporting
• Feature: Plug‑in board installation, configurable PDO data length, slave station diagnosis support, industrial anti‑interference design
• Installation: ｉｎｓｅｒｔ into dedicated slot of TPD32‑EV drive control board
• Power: Powered by drive internal circuit; Operating Environment:0℃ ~ +60℃, 5%‑95% RH non‑condensing
• Certifications: CE compliant for industrial drive automation applications

Core Functions

• Act as Profibus‑DP slave, connect TPD32‑EV DC drives to PLC/DCS Profibus‑DP master network.
• Cyclic transmit speed set‑points, torque commands from master station to drive and feed back actual speed, current and status data.
• Support acyclic parameter access for reading and modifying internal drive configuration parameters over field‑bus.
• Implement comprehensive slave diagnosis, transmit drive fault codes and alarm information to upper‑level control system.
• On‑board DIP switches set Profibus station address; LED indicators show bus activity and fault state for commissioning and troubleshooting.
• Standard plug‑in structure supports convenient replacement during drive‑cabinet overhaul and on‑site maintenance work.

Application Scenarios

• Profibus‑DP field‑bus communication component for TPD32‑EV series DC drive units.
• Critical spare‑part for metallurgy, paper‑making, printing production‑lines equipped with TPD32‑EV DC converters.
• Retrofit and spare replacement for legacy SBI‑PDP‑32 interface‑card drive‑system upgrade projects.
• Drive cabinet overhaul, Profibus‑DP field‑bus debugging and faulty communication‑card replacement tasks.
• Spare‑parts inventory for drive‑system integrators and manufacturing‑plant engineering contractors.

• Global aftermarket spare supply for technical teams maintaining TPD32‑EV drive‑based automation hardware.
