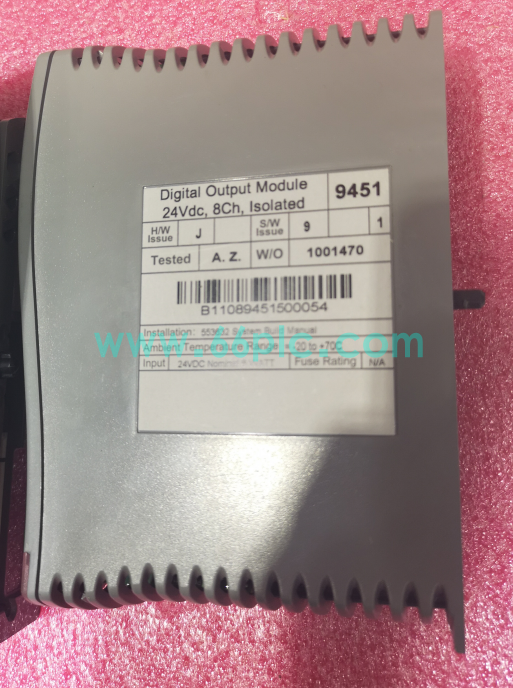

ICS TRIPLEX T9451 Trusted Digital Output Module

The ICS TRIPLEX T9451 is a fault-tolerant digital output module designed for the Trusted Safety Instrumented System (SIS). Built on Triple Modular Redundancy (TMR) technology, it receives safety logic commands from the main controller and drives field solenoid valves, contactors, trip relays and emergency shutdown equipment.

This module supports comprehensive channel diagnostics and configurable fail-safe states to satisfy SIL3 safety requirements. It features hot-swap capability, allowing engineers to ｒｅｐｌａｃｅ modules online without shutting down the whole safety system, widely supplied as spare parts for petrochemical, power and oil & gas safety system maintenance.

Main Specifications

• Brand: ICS TRIPLEX (Rockwell Automation)
• Model: T9451 (commonly referred to as 9451)
• Product Type: Trusted TMR Digital Output Module
• Architecture: Triple Modular Redundancy fault tolerant design
• Output Type: Discrete on-off contact / 24VDC digital output
• Built-in wire break, short circuit and channel fault detection
• Support hot-swap online replacement during system operation
• Safety Level: SIL3 certified for safety instrumented systems
• Operating Temperature: -20°C ~ +70°C
• Installation: Standard Trusted rack plug-in hardware

Core Functions

• Convert safety control logic signals into field discrete output signals to execute protection actions
• Adopt TMR voting mechanism to avoid safety misoperation caused by single component failure
• Real-time diagnose channel abnormalities and upload fault information to the main processor
• Provide configurable fail-safe output mode to guarantee process safety under module failure
• Enable hot swap replacement to minimize unplanned production shutdown duration
• Communicate with Trusted CPU through backplane bus for command and status transmission
• Fully compatible with Trusted series racks, power supplies and other I/O modules
• Execute emergency shutdown, burner management and fire & gas safety interlock logic
• Support parameter configuration, monitoring and troubleshooting via Trusted engineering software
• Rugged industrial hardware supports long-term stable operation inside control cabinets

Application Scenarios

• Petrochemical plant Emergency Shutdown System (ESD) safety control racks
• Oil & gas processing station and pipeline safety instrumented systems
• Thermal power plant boiler auxiliary equipment safety interlock cabinets
• Industrial Fire & Gas (F&G) detection and safety actuation control units
• Refinery reactor protection and process emergency trip control systems
• Chemical plant burner management safety control equipment
• Offshore platform safety automation and emergency protection cabinets
• Pulp & paper factory high-risk equipment safety interlock control racks
• Renovation and expansion of legacy ICS TRIPLEX Trusted SIS platforms
• Safety system I/O spare parts maintenance and emergency replacement projects
