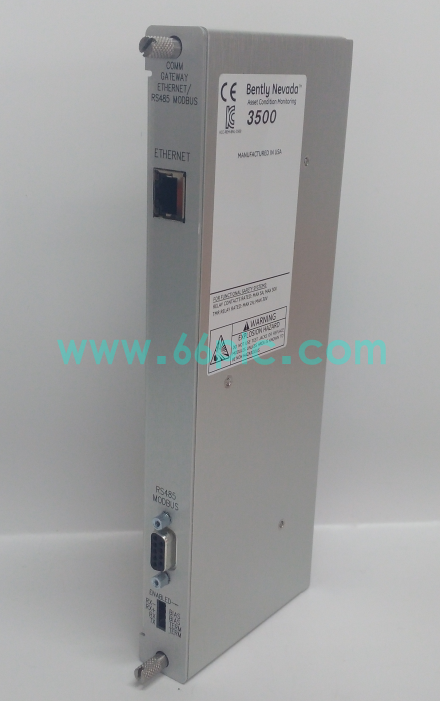

Bently 3500/92 136188-02 RS485 Modbus Communication Gateway Module

136188-02 is the official part number for the Bently Nevada 3500/92 dual-protocol communication module, designed exclusively for the 3500 series turbomachinery monitoring rack system. It integrates 10/100Mbps Ethernet TCP/IP and RS485 Modbus RTU interfaces to transmit all vibration, displacement, temperature measurement data and equipment alarm status from the monitoring rack to DCS, PLC and central SCADA control systems. This hot-swappable rack module realizes bidirectional data exchange, supporting remote rack configuration and real-time equipment health data uploading.

This module complies with standard Modbus communication function codes and supports up to 256 configurable Modbus registers for flexible data mapping. Manufactured in the United States with full industrial anti-vibration and wide-temperature design, it is a core aftermarket spare component for power plant steam/gas turbine monitoring systems, petrochemical compressor safety racks and mining heavy rotary equipment protection systems.

Main Specifications

• Brand: Bently Nevada (Baker Hughes); Model: 136188-02; Series: 3500/92 Communication Gateway
• Form Factor: Standard 3500 rack plug-in module, hot-swappable without rack power cut-off
• Communication Ports: 1×RJ45 Ethernet port, 1×DB9 RS485 Modbus serial port
• Modbus Support: RTU mode, function codes 01,02,03,04,05,06,15,16; maximum 256 data registers
• Backplane Power Supply: DC 5V from 3500 rack backplane, low power consumption design
• Operating Temperature: -40℃ ~ +70℃; Storage Temperature: -40℃ ~ +85℃
• Diagnostic Indicators: Front panel LED status lights for power, Ethernet link, Modbus communication and fault alarm
• Mechanical Structure: Ventilated metal housing, anti-shock reinforced circuit board for industrial vibration environments
• Certifications: CE, UL, meets API 670 machinery protection industry standards
• Compatible Rack: All Bently Nevada 3500 series monitor racks, matched with PR6423 eddy current probe measuring chains

Core Functions

• Act as the communication bridge between the 3500 monitoring rack and upper automation control systems, collecting all real-time shaft vibration, axial displacement and bearing temperature data.
• Dual communication channels realize redundant data transmission: Ethernet for high-speed SCADA remote monitoring, RS485 Modbus for local PLC interlock linkage control.
• Support remote online configuration of the entire 3500 rack via Ethernet, including sensor calibration, alarm threshold setting and fault log reading without local operation.
• Built-in data cache storage retains historical fault records and trend curves during temporary upper system communication disconnection to avoid data loss.
• Hot-swap design allows single module replacement while the monitoring rack keeps running, eliminating unplanned shutdown of critical rotary production equipment.
• Onboard communication fault self-diagnosis circuit automatically outputs abnormal communication alarm signals to remind maintenance staff of cable disconnection or register mapping errors.

Application Scenarios

• Communication module spare replacement for 3500 series turbomachinery monitoring racks of steam turbines and gas turbines in thermal power and hydropower plants.
• Gateway spare parts for large centrifugal compressors, blowers and circulating pump machinery protection systems in petrochemical refineries.
• Retrofit and maintenance stock for heavy-duty medium voltage drive rotary equipment monitoring racks in metallurgical rolling mills and coal mines.
• Signal transmission matching component for PR6423 eddy current vibration probe measurement chains and Bently 3500 full-set monitoring systems.
• Long-term backup inventory for energy, chemical and heavy industry maintenance workshops equipped with vintage Bently Nevada 3500 monitoring racks.
• Global aftermarket spare supply for turbomachinery safety monitoring system renovation and overhaul projects worldwide.
