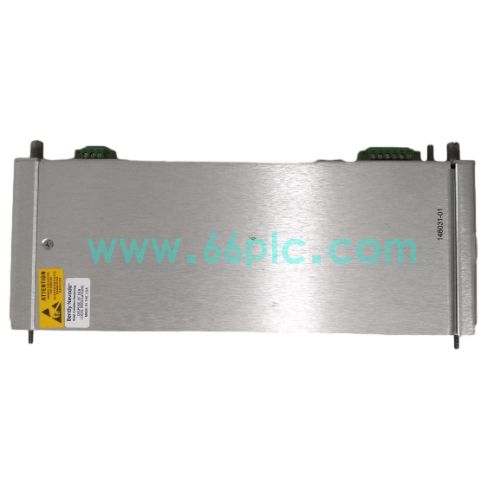

Bently Nevada 146031-01 Transient Data Interface Module

Bently Nevada 146031-01 is the transient data interface module for the 3500 machinery protection system. It acts as a data gateway between the 3500 rack and System 1 diagnostic software, capturing high-speed transient vibration data of rotating equipment.

This module integrates Ethernet communication interface and high-speed data acquisition circuit. It supports real-time waveform capture and machinery fault diagnosis. Widely used as spare parts for turbine, compressor and pump vibration monitoring systems in power, oil & gas and petrochemical plants.

Main Specifications

1. Brand: Bently Nevada; Model:146031-01; Type: Transient Data Interface Module
2. Compatible System: Bently Nevada 3500 machinery protection rack, System 1 software
3. Core Functions: High-speed transient vibration data collection, Ethernet data transmission, rack interface communication
4. Communication: 10/100Base-T Ethernet; Rack backplane communication with 3500 series modules
5. Hardware Feature: Rack slot installation, built-in module self-diagnosis, industrial wide temperature design
6. Application Data: Vibration waveform, orbit and transient data for rotating machinery diagnosis
7. Supply Status: Aftermarket spare part for 3500 vibration monitoring rack maintenance

Core Functions

1. Collect high-speed transient vibration waveform data from monitoring modules inside the 3500 rack for rotating machinery analysis.
2. Transmit captured transient data to System 1 diagnostic software via Ethernet for spectrum, orbit and fault analysis.
3. Realize data interaction with 3500 rack backplane, synchronize rack status, alarm and machinery protection information.
4. Built-in continuous self-diagnosis function, detect hardware failure and communication error, and send rack fault alarm.
5. Standard 3500 rack slot structure, easy plug-in installation and replacement during equipment maintenance.
6. Support real-time and historical transient data storage, assisting engineers to analyze sudden machinery vibration faults.

Application Scenarios

1. Transient data acquisition gateway for turbine, compressor and pump vibration monitoring system in power and petrochemical plants.
2. Fault module replacement and routine maintenance of existing Bently Nevada 3500 machinery protection racks.
3. Rotating machinery condition monitoring system upgrade and technical transformation for heavy industry process plants.
4. Emergency replacement for TDI module failure to restore high-speed vibration transient data collection function.
5. Spare parts stocking for maintenance teams operating Bently Nevada 3500 machinery protection systems.
6. Aftermarket spare supply for monitoring cabinet overhaul and rotating machinery online diagnostic projects.

FAQ

1. Q: Can Bently Nevada 146031-01 work with other brand vibration monitoring racks?
   A: It is dedicated for Bently Nevada 3500 rack, cannot be compatible with other brand monitoring systems.
2. Q: What are typical module failure symptoms?
   A: No transient waveform upload, Ethernet disconnection, rack diagnostic alarm, loss of communication with System 1.
3. Q: How to complete commissioning and diagnosis?
   A: Check rack backplane connection and Ethernet wiring, open System 1 software to verify transient data capture and transmission.
