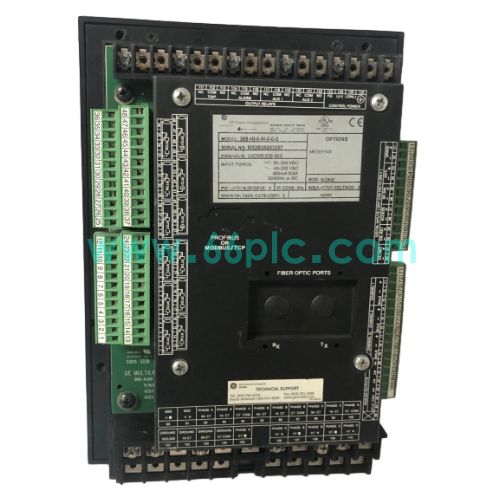

Bently Nevada 369-HI-0-M-0-0-0 Motor Protection Relay

Bently Nevada 369-HI-0-M-0-0-0 is a comprehensive motor protection relay designed for medium and low voltage electric motors. It continuously monitors motor operating parameters to provide overload, overcurrent and ground fault protection for industrial motors.

This relay integrates multiple protection functions, front panel LCD display and local operation keys. It supports event logging and communication with upper DCS system for remote monitoring. As aftermarket spare parts, it is widely used for maintenance, replacement and retrofit of motor protection systems in power plants and heavy industry.

Main Specifications

1. Brand: Bently Nevada; Model: 369-HI-0-M-0-0-0; Type: Motor Protection Relay
2. Compatible System: Medium / low voltage induction motor, power distribution cabinet, DCS monitoring system
3. Core Functions: Motor protection, current / voltage measurement, fault recording, event log, local & remote alarm and trip output
4. Port Resource: CT/PT signal input, relay trip & alarm output, communication port, front LCD and keypad
5. Supported Feature: Multi-protection logic, event history storage, panel mounting, wide operating temperature, industrial EMC protection
6. Hardware Feature: Panel-mounted protection relay, integrated display & keypad, passive cooling
7. Supply Status: Aftermarket spare part for industrial motor protection system maintenance and component replacement

Core Functions

1. Collect current and voltage signals from CT and PT sensors, implement multi-protection logic including overload, phase loss, overcurrent and ground fault protection.
2. When motor operating condition exceeds preset threshold, trigger relay trip output to cut off motor power supply and avoid motor winding burnout.
3. Built-in event recording function saves fault time, type and parameter data, convenient for post-fault analysis of motor abnormal operation.

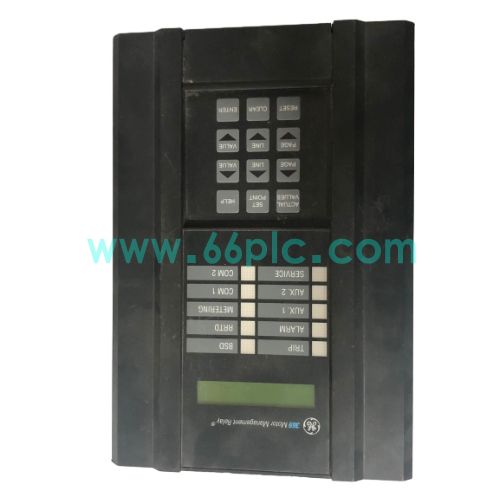

4. Front LCD screen and keypad support local parameter setting, real-time data browsing and fault code checking for on-site commissioning.
5. Communication interface connects to DCS and SCADA system to realize remote motor status monitoring and alarm information upload.
6. Compact panel mounting design can be installed directly on the motor control cabinet, suitable for transformation of old motor protection systems.

Application Scenarios

1. Motor protection unit for medium and low voltage motors used in power, mining, water treatment and chemical industry.
2. Fault protection relay replacement and routine maintenance of existing Bently Nevada 369 series motor control cabinets.
3. Motor protection hardware upgrading and technical transformation for aging legacy industrial motor control systems.
4. Emergency swap for relay failure of important motor equipment requiring complete electrical protection and fault recording.
5. Spare-parts stocking for electrical maintenance teams supporting Bently Nevada 369 motor protection series products.
6. Aftermarket spare supply for motor control cabinet overhaul and technical-service projects of heavy industrial facilities.
