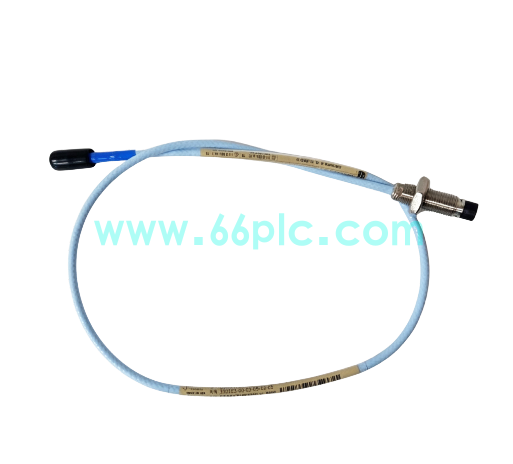

Bently Nevada 330103‑00‑03‑05‑02‑05 Eddy‑Current Proximity Probe in stock

The Bently Nevada 330103‑00‑03‑05‑02‑05 belongs to the 3300 series eddy‑current proximity probe family. It applies eddy‑current sensing principle to convert clearance variation between probe tip and metal shaft into analog signal. Designed for non‑contact measurement of radial vibration, shaft displacement and thrust position on high‑speed rotating machinery. It must pair with matched extension cable and proximitor to build a complete transducer assembly for turbine and compressor TSI machinery‑protection loops.

This industrial proximity probe delivers stable gap‑voltage output with good temperature resistance and anti‑interference performance for harsh plant environments. It provides reliable raw sensing signals for 3500 series monitor modules. Manufactured in compliance with API 670 machinery‑protection requirements. Original production has been discontinued. It is widely available as aftermarket spare parts for sensor replacement, field maintenance and legacy monitoring‑system retrofitting projects.

Main Specifications

1. Brand:Bently Nevada (Baker Hughes); Model:330103‑00‑03‑05‑02‑05; Type:Eddy‑Current Proximity Probe
2. Compatible System:3300 series proximitor and 3500 monitor rack systems
3. Core Function:Non‑contact clearance detection, transform shaft distance change into electrical signal for vibration and displacement measurement
4. Compatible Device:Matching extension cable and proximitor module
5. Interface Resource:Internal sensing coil, integrated probe cable assembly
6. Hardware Feature:Robust industrial‑grade construction, vibration‑resistant, conforms to API 670 machinery‑protection standard
7. Supply Status:Original production discontinued, available as tested surplus or refurbished spare parts

Core Functions

1. Generates high‑frequency alternating magnetic field via built‑in sensing coil, detects distance variation between probe tip and rotating metal shaft surface.
2. Transmits clearance‑related signal to matched proximitor module, outputs proportional gap voltage for subsequent processing by monitor modules.
3. Performs non‑contact measurement of radial shaft vibration, axial thrust displacement and shaft offset for rotating equipment.
4. Maintains consistent measuring performance under harsh industrial conditions with temperature drift and mechanical vibration.
5. Forms complete transducer set together with extension cable and proximitor, supports machinery‑protection logic execution of monitoring rack.
6. Acts as key field sensing hardware for Bently Nevada turbine supervisory instrumentation systems.

Application Scenarios

1. Machinery‑protection monitoring systems for steam turbines, gas turbines, compressors and other critical high‑speed rotating units.
2. Sensor replacement and routine maintenance for existing Bently Nevada 3300 and 3500 series TSI monitoring systems.
3. Technical renovation and measuring‑point upgrade of aging legacy machinery‑monitoring installations.
4. On‑site troubleshooting and replacement of defective proximity probes for continuously‑running critical rotating‑machinery protection systems.
5. Spare‑parts stocking for system integrators and plant maintenance contractors supporting legacy Bently Nevada hardware platforms.
6. Global aftermarket spare supply for technical teams maintaining obsolete Bently Nevada machinery‑monitoring hardware.

FAQ

1. Q:Can 330103‑00‑03‑05‑02‑05 work as standalone unit?
   A:It must cooperate with matched extension cable and proximitor module, standalone probe cannot complete signal conversion and measurement.
2. Q:What symptoms appear upon probe failure?
   A:Unstable or abnormal gap‑voltage output, channel fault alarm on monitor module, loss of vibration and displacement data of corresponding channel.

3. Q:How to complete configuration and diagnosis?
   A:Check probe installation gap‑voltage on‑site, inspect cable connection status; carry out parameter verification via monitor module or System 1 software.
