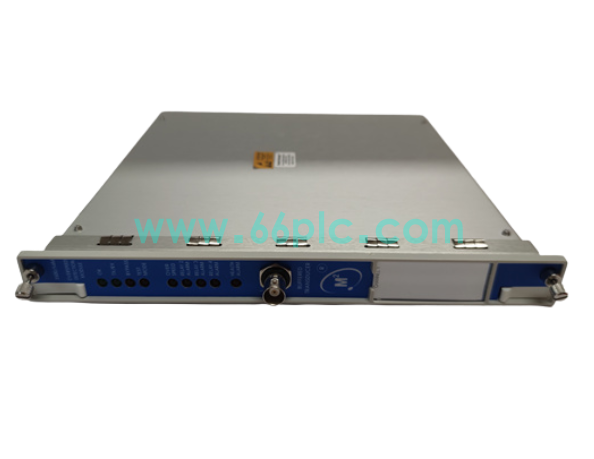

Bently Nevada 3500/54‑03‑00 Overspeed Detection Module in stock

The Bently Nevada 3500/54‑03‑00 is an overspeed detection module for Bently Nevada 3500 machinery monitoring rack system. It receives pulse signals from magnetic pickup speed sensors to measure shaft rotational speed of rotating equipment. Installed in standard rack slot, it executes overspeed protection logic and provides trip outputs for steam turbines, gas turbines and compressors safety interlock systems.

This module integrates multi‑channel speed signal conditioning circuits, back‑plane bus connector and channel diagnostic LED indicators. It implements triple‑modular voting logic to ensure high‑reliability overspeed protection. Hot‑swap design supports online replacement without breaking other rack monitoring functions. It complies with API 670 machinery‑protection specifications. Original production has been discontinued. It is widely supplied as aftermarket spare parts for 3500 rack maintenance and legacy rotating‑equipment‑monitoring retrofit projects.

Main Specifications

1. Brand:Bently Nevada (Baker Hughes); Model:3500/54‑03‑00; Type:Overspeed Detection Module
2. Compatible Platform:Bently Nevada 3500 series machinery monitoring rack system
3. Core Function:Shaft speed measurement, overspeed detection, safety trip interlock logic with voting mechanism
4. Compatible Device:Magnetic pickup speed sensors for rotational pulse signal input
5. Interface Resource:3500 internal back‑plane bus connector, channel‑wise status LED indicators
6. Hardware Feature:Rack plug‑in modular structure, hot‑swap support, built‑in sensor fault diagnosis and voting logic
7. Supply Status:Original production discontinued, available as tested surplus or refurbished spare parts

Core Functions

1. Receive pulse signals from field magnetic pickups, convert pulse frequency into accurate shaft rotational speed value.
2. Compare real‑time speed reading against configured overspeed threshold, execute triple‑modular voting to trigger safety trip output when overspeed condition occurs.
3. Transmit speed measurement data, channel status and overspeed event records to rack communication modules for uploading to System 1 and upper host systems.
4. Detect sensor open‑circuit, short‑circuit and signal abnormality, display channel operating state via front‑panel LED indicators for on‑site maintenance inspection.
5. Support hot‑swap maintenance, module replacement will not affect normal monitoring functions of other modules inside 3500 rack system.
6. Serve as critical overspeed safety‑protection hardware for Bently Nevada 3500 turbine supervisory instrumentation systems.

Application Scenarios

1. Machinery‑protection and safety‑interlock systems built on Bently Nevada 3500 platform for power‑plant turbines, gas turbines, compressors and large rotating units.
2. Spare‑parts replacement and routine maintenance of existing 3500 overspeed‑detection subsystems within machinery‑monitoring cabinets.
3. Technical renovation and speed‑protection‑channel upgrade of aging legacy 3500 machinery‑monitoring installations.
4. On‑site troubleshooting and replacement of faulty overspeed detection modules for continuously running critical rotating‑machinery protection systems.
5. Spare‑parts stocking for system integrators and plant maintenance contractors supporting legacy Bently Nevada 3500 hardware platforms.
6. Global aftermarket spare supply for technical teams maintaining obsolete Bently Nevada 3500 machinery‑monitoring hardware.

FAQ

1. Q:Can 3500/54‑03‑00 work as standalone unit?
   A:It must be installed in matched Bently Nevada 3500 rack system and connect with magnetic pickup sensors, standalone module cannot complete speed measurement and overspeed protection.
2. Q:What symptoms appear upon module failure?
   A:Loss of shaft speed reading, channel fault alarm, failure to execute overspeed trip logic for corresponding protection channels.

3. Q:How to complete configuration and diagnosis?
   A:Check channel LED status and sensor wiring on site; parameter setup and fault analysis are completed through Bently Nevada System 1 supporting monitoring software.
